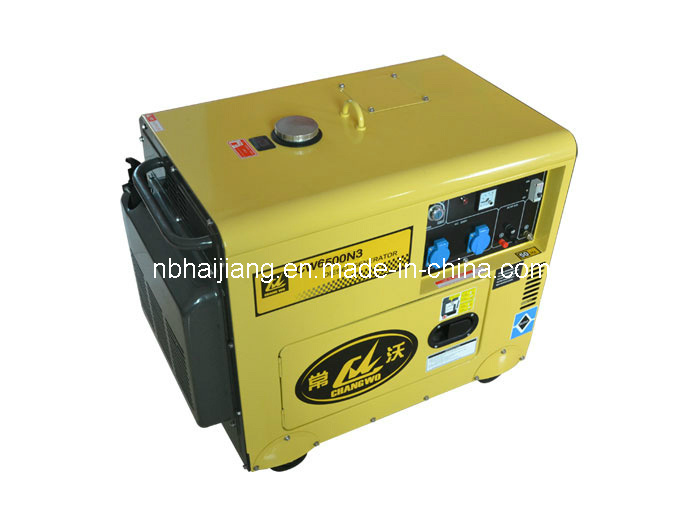

| Prod Model: |
CW6500N3 |
| Markets: |
North America,South America,Eastern Europe,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cooling Method: |
Air Cooled |
| Stroke: |
Four Stroke |
| Installation Method: |
Portable |
| Type: |
Basic Diesel Generator |
| Output Type: |
AC Three Phase |
Product Description
Features and benefits:
Latest direct fuel injection system
Big fuel tank, assured of hours continuous output
Big silent muffler & air-cleaner, lessen exhaust and intake noise
Various designed control panels available for different customers
Optional standard
On the inheriting of the original general-purpose generator set, CHANGWO diesel generator sets
With digital control panel can be equipped with a made ATS(automatic transfer switch). ATS, in its preset intervals, can automatically check and monitor the running of the genset to ensure the genset in good working condition.
Meanwhile, ATS will monitor the utility power, if utility power fails or the voltage and frequency of
The utility power ecome abnormal, ATS will give commands to start the genset automatically.
Digital Display will display the real-time working data of the generator set such as its output voltage and current.
MODEL
|
CW4000N
|
CW5500N
|
CW6500N
|
CW6500N3
|
Phase Number
|
Single Phase
|
Single Phase
|
Single Phase
|
Three Phase
|
Engine Model
|
CW178FE
|
CW186FE
|
CW186FAE
|
CW186FAE
|
Displacement(L)
|
0.296
|
0.406
|
0.418
|
0.418
|
Starting Mode
|
Electric Starting
|
Rated Power(KVA)
|
2.8/3.3
|
4.0/4.5
|
4.2/5.0
|
4.2/5.0
|
Maximum Power(KVA)
|
3.2/3.8
|
4.2/5.0
|
4.6/5.5
|
4.6/5.5
|
Rated Voltage(V)
|
230/115,240/120
|
230/115,240/120
|
230/115,240/120
|
220/380
|
Rated Frequency(Hz)
|
50/60
|
50/60
|
50/60
|
50/60
|
Continuous Working Time(h)
|
8.5
|
9.5
|
9.5
|
9.5
|
Fuel Tank Capacity(L)
|
16
|
16
|
16
|
16
|
Optional standard
|
ATS
|
Remote control
|
Digital display
|
Wheel and handle
|
Dimension(L× W× H)mm
|
830x530x740
|
910x530x740
|
910x530x740
|
910x530x740
|
Packing Size(L× W× H)mm
|
850x550x790
|
930x550x790
|
930x550x790
|
930x550x790
|
N. W. /G. W (kg)
|
140/145
|
165/170
|
165/170
|
165/170
|
Loading Quantity
(20GP/40GP/40HQ)
|
96/208/208
|
88/184/215
|
88/184/215
|
88/184/215
|
