| Prod Model: |
BF6M1015CP-G |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Voltage: |
230V/400V |
| Frequency: |
50Hz/60Hz |
| Speed: |
1500/1800rpm |
| Air Intake Method: |
Turbocharged Inter Cooled |
| Alternator: |
Stamford, Simens, Marathon, Farady |
| Control Panel: |
Dse6020 |
| Quality Control: |
ISO/CE Certificate |
| Warranty: |
1 Year or 1500 Running Hours |
| Cooling Method: |
Water Cooling |
| Stroke: |
Four Stroke |
| Installation Method: |
Fixed |
| Type: |
Self-Starting Diesel Generator |
| Output Type: |
AC Three Phase |
Product Description

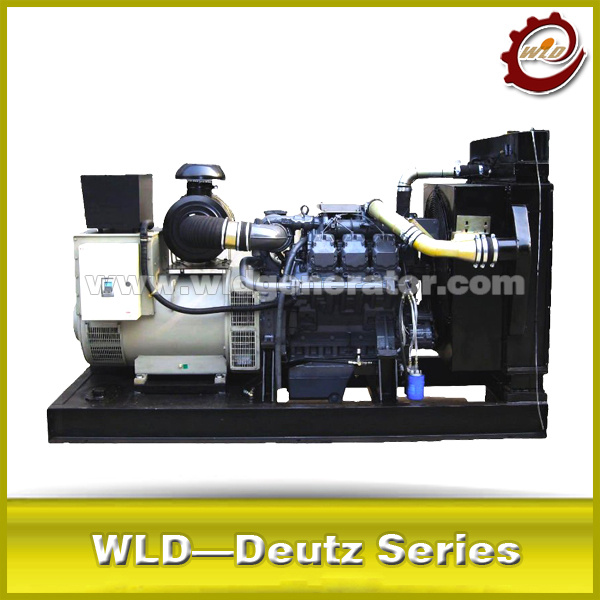

Detailed Product Description of Deutz diesel engine generator:
DEUTZ-Advanced technology, The engine adopts the inner oil-inner water channel structure that makes the external pipes less distintly. It can reduce the potential possibilities of failures. The service life is about 15000 hours.
The engine has one-cylinder one-head structure so that the parts have good universal and convenient maintenance properly.
The patent technology on the crankshaft, noise-optimized crankcase and accessory bracket making the eingine much lower noise (<98dB)
The engine adopts inlet heating device so as to keep good running at the temperature of -35C.
Soundproof/Silent box:
-Excellent ventilation
-Fuel tank mounted on baseframe for 12 Hours working
-Highly Corrosion Resistant construction
-Excellent Access for Maintenance
-Security and Safety
-1m<80DBA / 7m<70DBA
Control panel:
-Automatic control panel(AMF), LED display.
-Four protection systems
-Emergency stop
-DSE/COMAP/SMARTGEN/HARSON
Optional:
- Trailer type
- Soundproof / water proof
- ATS(automatic transfer switch)
- water Heater
- Parallel system
- Remote system
Other products of generator system we can offer:
As a big generator set OEM factory with 19-year export experience. We can pupply Diesel Generator, Mobile Generator, Electric Generator, Natural Gas Generator under the famous brand of CUMMINS, DEUZT, CATERPILLAR, SHANGCHAI(SEDC), YUCHAI, with power ranging 0.65-3000kVA; AC alternator under the brand of STAMFORD, MARATHON, FARADAY and Siemens. We also offer spare parts for SFH, SEDC and HINO.
Hundreds in stock for immediate delivery.
|
Genset Specification : |
|
Genset Modle |
DD500 |
|
Dimension(mm) |
3100*1400*1700 |
|
Weight(kg) |
2900 |
|
Prime Power(kw/kva) |
500/625 |
|
Standby Power(kw/kva) |
550/688 |
|
Rated current (A) |
900 |
|
Powerfactor(CosPhi) |
0.8 |
|
Altitude |
≤1000m |
|
Base Fuel Tank |
Eight hours(Standard) |
|
Engine Features: |
|
Engine model |
BF8M1015CP-LAG5 |
|
Type of Governor |
Electronic governor |
|
Type |
8 cyclinder |
|
Bore*Stroke(mm) |
132*145 |
|
Compression ratio" |
17:1 |
|
Voltageregulation |
±0.5% |
|
fuel consumption rate(g/kw.h) |
≤209g/kw.h |
|
Alternator Features: |
|
brand |
Stamford, Simens, Marathon, Farady at option |
|
Voltage control |
AVR |
|
Numberofphase |
3 |
|
Overspeed |
2250RPM |
|
Excitertype |
AREP |
|
Insulation class |
H |
|
protection class |
IP22/IP23 |
|
Totalharmonics (TGH/THC) |
< 3.5 % |
|
Waveform NEMA = TIF |
<50 |
|
Waveform I.E.C. = THF |
<2% |
|
Bearing |
single |
|
Coupling |
Direct |
