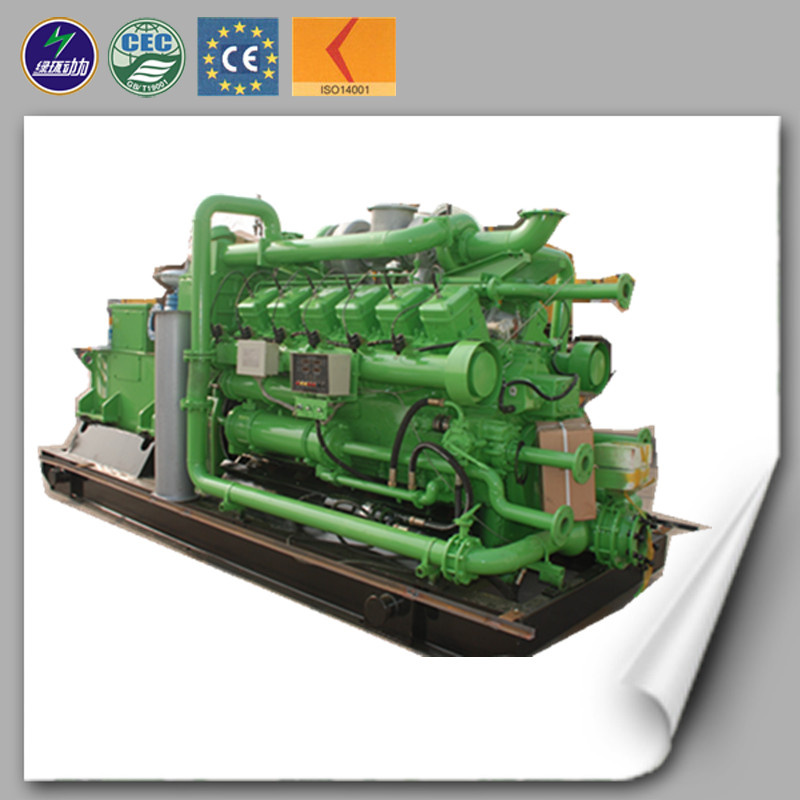

500kw Best Natural Gas Generator Price Lvhuan Power

Prod Model:	LHNG500
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Prime Power/Standby Power:	400kw/500kw
Cylinder Number:	12 V
Rated Voltage:	400V/230V/690V/10500V
Phase:	AC 3-Phase, 4 Wire
Engine Capacity:	71.4L
Cylinder Bore:	190mm
Stroke:	210mm
Gas Source:	Natural Gas
Power:	500kw/400kw

Product Description

500KW best natural gas generator price lvhuan power


1.Advantage
Advanced electronic speed governor with super performance.
Advanced ignition sensors and high-energy ignition system
Advanced gas pressure regulation system
Less specialized parts, high generalization, easy maintenance, low maintenance cost.
Economical, low operating cost
Reduced the carbon deposition on the wear of the engine cylinder and the valve to prolong the using life of the genset.
Adopt one of the world's most advanced gas control technology, fully available to the characteristics of fuel gas.
Powerful low pressure gas SPI (single point Injection) system used for various supercharger premixed engine.
Suitable for differnt concentration methane and propane, variety of quality gas.
Precise air-fuel ratio rarefied combustion control and Generator speed/load control
Realize lean burn, reduce the intake pipe tempering and improved efficient to reduce the heat load.

2. Gas Requirements of Natural Gas Genset
 Within 1m from pressure regulating valve of gas intake
The ratio of CH4 in natural gas ≥70%
Pressure of natural gas: 80-200kpa, rate of pressure change ≤ 1kpa/min
H2S ≤ 20mg/Nm3
Impurity particle size ≤ 5μm, impurity content ≤ 30mg/Nm3
Moisture content ≤ 40g/Nm3

3. Parameter of 500kw Natural gas engine

Engine mode	LH12V190	Sparking mode	Sparking pl
Gas mixing type	IMPCO	Heat Consumption	≤10MJ/kW.h
Cylinder number&type	12/Vee60°	EGT	≤650ºC
Cylinder diameter	190mm	Stroke	210mm
Displacement	71.45L	Lubrication	Pressure and splash
Rate speed	1000r/min	Cooling model	Open/closed water cooling
Emissions targets	EU III	Noise	≤105dB

Model Number (Engine Type)	LHNG500
Brand Name	LVHUAN
Prime Power/Standby Power	400KW/500KW
Rated Speed	1000/1200RPM
Rated Frequency	50/60Hz
Rated Voltage	400V/230V
Phase	AC 3-Phase, 4 wire
Voltage Stability	≤±2%
Voltage transient	≤±10%
Voltage Stable time	≤1s
Heat consumption	≤11mj/kw.h
Lubricant Consumption	≤1.0g/kw.h
Engine Capacity	71.4L
Cylinder Number	12-V
Cylinder Bore	190mm
Stroke	210mm
Starting System	DC 24V electric motor
Cooling method	water cooler
Lubricant method	Passive and flying lubricant
Isolation class	H
Protection	IP23
Alternator	Siemens
Power Factor	0.8 lagging
Exciting method	brushless
Colour	your choice
Certificates	ISO 9001:2008, CE
Warranty	1 year or 1000 running hours which arrives first
Type	Open
Control system	Automatic alarm system
Size	6200x2100x2800mm
Weight	12500kg

4.Lvhuan gas genset is a new green environmental product which meets demands of world environment protection and market. With domestic advanced technology, our genset possesses features of speedy start, easy to operate, complete models, etc.


5.Features of our biomass generator:

1.Pure copper water tank for best cooling effect
2.Famous component brand to ensure overall quality, Eg. Siemens,Standard, Stamford.
3.Expansion fitting combined with shrinking fitting give high tightness to the system.
4.Safety guarantee form electromagnetic valve as well as back-fire relief valve
5.Residual heat CHP recycle system available for choice.
