| Prod Model: |
J-500HX |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Number Of Blade: |
Three Blade |
| Stress Way Of Blade: |
Lift Force |
| Rotating Shaft: |
Horizontal |
Product Description

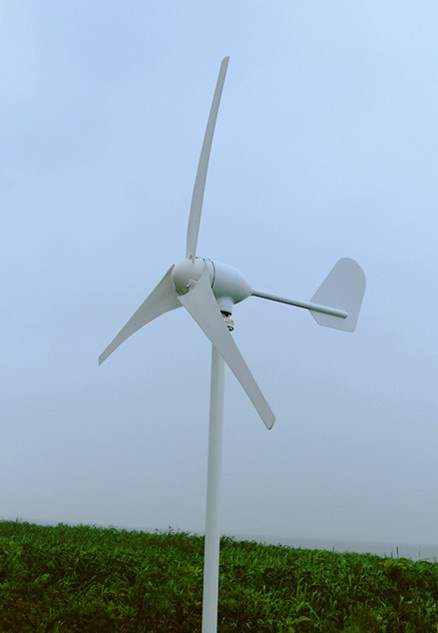

500W wind turbine
Product features
1. Low wind speed series wind turbines generate more than 60% effective power than the same rotor diameter wind turbine annually.
2. Three-phase permanent magnet synchronous wind turbine, more than 10% of the efficiency of ultra-GB, starting resistance, only be 1/3 of the GB limit, motor insulation rating class H insulation.
3. Start and product electricity at the 1.5m/s, noise only at dB at 13m/s/.
4. The wind turbine wheel are made of a low temperature resistance, aging high strength compound material, can cope with a variety of complex wind conditions, charge wind energy into electrical energy efficiently and sustainably.
5. Wind turbine rudders are ale to respond to the wind speed and wind direction flexibly, enhancing the efficiency of power generation.
|
Generator |
Model |
J-500HX |
|
Generator type |
3 phase rare earth Permanent Magnet Generator |
|
Rated power |
5 00W |
|
Maximum Power |
55 0W |
|
Rated voltage |
12/24V |
|
Generator net weight |
30.8 Lb |
|
Service life |
20-25years |
|
blades |
Nylon fiber |
|
Number of blades |
3 or 5 |
|
Wheel diameter |
1.6 m |
|
Rated rotor speed |
400r / m |
|
Start-up wind speed |
2.0m / s |
|
Rated wind speed |
11.0m / s |
|
Survival wind speed |
55m / s |
|
Regulating way |
Electronic magnet/yaw |
|
Lubricating |
grease |
|
Ambient temperature |
-40 ° F to 176 ° F |
|
Can supply power for |
Streetlights, homelights, fan, charger |
|
Guyed Tower |
height |
6M |
|
material |
Galvanized seamless steel pipe |
|
Control system |
Controller. Inverter |
Suzhou Jongko New Energy Technology Co., Ltd., which is located in the national high-tech industrial park of Wuzhong district, Suzhou City, is an energy technology enterprise dedicated to small-scale wind power equipments and the development and application of solar power systems. We specialize in the development of small and medium- scale wind power and solar-powered complementary system with breakthrough product design concept and rational and scientific application.
As a new energy company with a high sense of responsibility, JONGKO has been committing to providing outstanding products and services and taking full advantage of green energy to help people realize "Zero power consumption, Zero emissions, Zero pollution" dream.
In order to achieve our goals, JONGKO has been trying to discover the best solution to improve our technologies and services continuously to design the most reasonable wind and light complementary system, especially wind and light complementary street lamps with unified power supply systems, etc.
Wind, photovoltaic and other new energy sources are capable of reducing carbon emissions and improving the environment, JONGKO team is constantly working to develop high-quality wind, photovoltaic systems and related supporting products, as well as providing global End-User with the best quality service.
