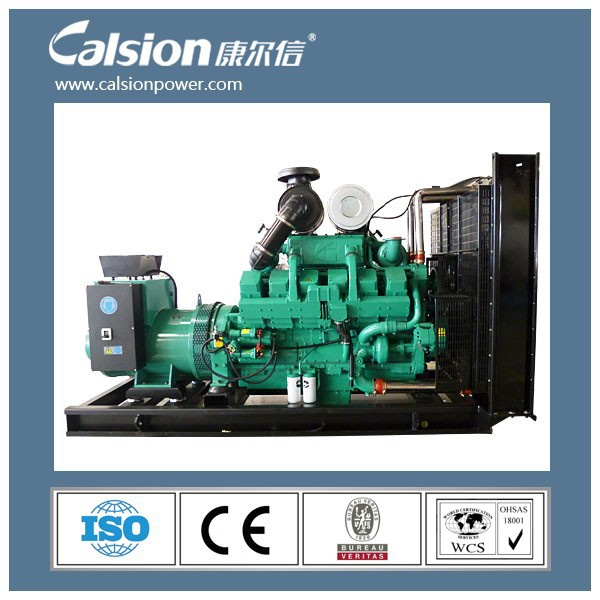

50Hz 400V Cummins Engine Generators Diesel

Name: 50Hz 400V Cummins Engine Generators Diesel
Brand: aboutgenerator.com
SKU: 704126252
Availability: InStock
Rating: 4.7 (77 reviews)

Price:	US $ 20976/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Hefei Calsion Electric System Co., Ltd

Showroom Product Company Profile

Prod Model:	C240C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	260010501700
Frequency:	50Hz
Item:	Generators Diesel
Type:	Basic Diesel Generator
Installation Method:	Fixed
Stroke:	Four Stroke
Cooling Method:	Water Cooling
Output Type:	AC Three Phase

Product Description

Cummins diesel generator specification
1) OEM Top Quality
2) ATS,AMF,Parallel Optional
3) CE/ISO Certificate
4) Competitive Price

1, Various Voltage available but coupled alternator model may be changed. For detailed inquiry, pls contact Calsion sales.
2,Faraday Brushless Alternator, Single Bearing, Flange Connection, IP23, Insulation Class H, AVR Fitted. (Stamford, Engga and Marathon for Option)
3, With 8 Working Hours Base Fuel Tank(for the both of open & silent genset ≤ 650kVA prime, only Base Frame for other models), AVM Suspension System, Set-mounted Exhaust System, Battery, Battery Charger and Lead supplied
4, With Delixi Breaker, ABB Breaker for Option
5, Complete Operation/Maintenance Manuals for Genset/Engine/Alternator, Genset testing report
6, Warranty: One year or 1000 Working Hours from the shipment date, whichever comes first.

Compliance Standards
To BS4999/5000 pt 99, VDE 0530,UTE5100, NEMA MG1-22, CEMA, IEC 34,
CSAA22.2, AS1359, BSS 5514, ISO 3046 and ISO 8528

Genset Model	Rated Power Output 50Hz/400V/3P4W			Engine Model (Cummins)	Alternator Model (Leroy Somer)
Genset Model	KW	KVA	A	Engine Model (Cummins)	Alternator Model (Leroy Somer)
*C26CS	21	26	38	4B3.9-G1	LSAP42D
C26CS	21	26	38	4B3.9-G2	LSAP42D
*C40CS	32	40	58	4BT3.9-G1	LSAP43C
C40CS	32	40	58	4BT3.9-G2	LSAP43C
C56CS	45	56	81	4BTA3.9-G2	LSAP43E
*C94CS	75	94	135	6BT5.9-G1	LSAP44C
C94CS	75	94	135	6BT5.9-G2	LSAP44C
C116CS	93	116	168	6BTA5.9-G2	LSAP44E
C131CS	105	131	189	6BTAA5.9-G2	LSAP44F
C180CS	144	180	260	6CTA8.3-G2	LSA46.2 M3
C200CS	160	200	289	6CTAA8.3-G2	LSA46.2 M5
C250CS	200	250	361	6LTAA8.9-G2	LSA46.2 L6
C250CS	200	250	361	NT855-GA	LSA46.2L6

Established in 1996

Calsion Electric System Co, . Ltd specializes in generator development, manufacturing, marketing and services. The company located in Economic and Technological Development Zone in Hefei, which covers 33 000 square meters, with a modern production workshop, professional R&D center, and excellent test system, with an annual prodution capacity of 10, 000 units.

Market-oriented, technology innovation as the driving force

Calsion can provide every kind of emergency and prime use power system to meet various types of power solutions and systems integration construction. Products include diesel generators, gasoline generators, gas generators, cooling systems, control systems, distribution systems and so on. The generator sets, including open type, silent type, containerized type, vehicle powerstation, mobile trailer generator, light tower and so on, with power range 1.5kW-3200kW.

Providing sales and service to users through the worldwide network

Calsion's products are reliabe and durable, which can meet demand of all kinds of harsh environments and high-altitude areas, widely be used in national defense, energy, electricity, transportation, communications, finance, medical, tourism, real estate, mines, factories and other fields. The products are exported to the Southeast Asia, the Middle East, the Africa, the Europe, the America and other countries and regions. Based on each customer and each project different demand, we provide the technical support system, find the best solution.

Maintain good relationship with international famous enterprises in long-term

Calsion is the VIP partner and appointed OEM factory of MTU, Volvo, Cummins, Yanmar, Leroysomer and Stamford.

Strictly Standardized Production Management

Calsion built a strict quality management system, obtains ISO9001/ISO14001/OHSAS18001 certificate. The products meet with strict testing, excellent performance, brilliant quality and world-level technology, we get TER and CE certificate.

Commit to create Calsion as a global brand

Provide customers with first-class, internationally competitive products through marketing and global service network, become a system integration solution expert.
