| Prod Model: |
J125V |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engine Brand: |
Volvo |
| Guarantee: |
1year or 1000hours |
| Cylinders: |
4/Vertical in-Line |
| Governor Type: |
Electronic |
| Start Method: |
DC24velectric Start |
| Type Of Injection: |
Direct Injection |
| Model: |
Tad1344ge |
| Max Power: |
98kw |
| Bore X Stroke: |
144*159(mm) |
| Max. Sump Capacity: |
13L |
| Type: |
Micro-Computer Control Automatic Diesel Generator |
| Stroke: |
Four Stroke |
| Output Type: |
AC Three Phase |
| Installation Method: |
Fixed/Portable |
| Cooling Method: |
Air/Water |
| Conditions Of Use: |
Land/Marine/Trailer |
Product Description

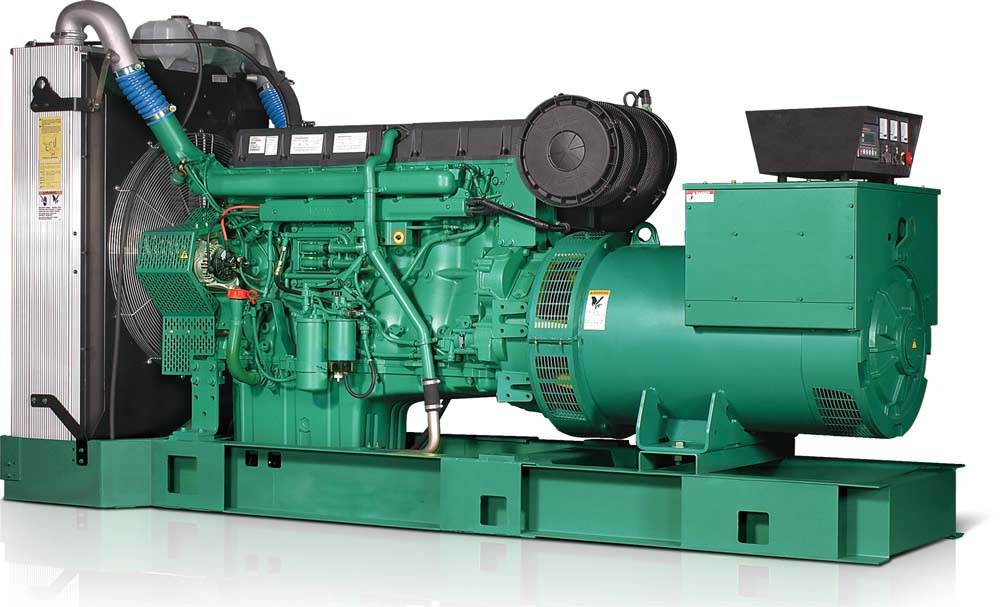

50Hz volvo penta electric generator, 100kva generator price
JACA Diesel Generator
| Genset Model | J250VJ |
| Rated Power | 200/250
(KW/KVA) |
| Standby Power | 220/275 (KW/KVA) |
| Frequency | 50HZ |
Product Description:
Technical Indication:
With rigid connection,the small and medium-sized genset equipped with integrated base fuel tank, stainless steel efficient absorber.There is no specail request for the genset installation.The genset can realize full load output at an altitude of 1000 meters and the ambient temperature below 40 ºC.In other circumstance, the genset can in accordance with the relevant standard to output power.
Standard Configuration:
Engine: VOLVO PENTA TAD1344GE
Alternator: Single-bearing ,IP23 Protection level
Radiator: 40 ºC Radiator Water Tank
Control Panel: Auto-start,Auto-protect LCD Screen
Breaker: Standard Three-pole Air Switch
Accumulator: 12V Maintenance-free Battery 2 pcs
Absorber: Stainless Steel High-efficiency Absorber
Common Base: Steel Plate Base Plate
Auxiliary: Exhaust Bellows,Exhaust Bended Pipe,Industrial muffler and a set of attachment tool
Different Voltage Grade Genset:
Voltage
(V) | Frequency
(HZ) | Phase | Power Factor
(COSΦ) | Standby Current
(A) | Standby Power
(KW/KVA) | Rated Power
(KW/KVA) |
| 254/440 | 50 | 3 | 0.8 | 590 | 360/450 | 320/400 |
| 240/415 | 50 | 3 | 0.8 | 626 | 360/450 | 320/400 |
| 230/400 | 50 | 3 | 0.8 | 650 | 360/450 | 320/400 |
| 220/380 | 50 | 3 | 0.8 | 684 | 360/450 | 320/400 |
Rated Power:In accordance with GB/T2820-97(eqvISO8528),There is no limitation to the annual hours of operation and this model can supply 10% over-load power for 1 hour in 12 hours.
Standby Power:There ratings are applicable for supplying continuous electrical power in the event of a utility power failure.
Options:
Engine: Water-jacket heater,Battery Charge,50ºCradiator water tank,oil-water separator
Alternator: Anti-condensation heater,Permanent magnet generator
Genset: Silent Type,Super Silent Type,Trailer Type,Container Type,Anti-rain Type
Others: Base fuel tank,Daily fuel tank,Automatic adding fuel system
Electrical Options: Luxurious Auto Control Panel,ATS Auto over-load Control Panel,Auto Parallel Operation Control Panel,Power output cabinet
Our Services:
1.Before sale Service: we provide detailed product technical parameters for equipment choosing and system designing.
2.Onsale Service: 24 hours online support technical guidance, remote installment, maintenance ,technique instruction.
3.After-sale maintenance service:We create files for users and provide them follow-up service,regular return visit and permanent maintenance.
4.Spare parts supply:We provide all kinds of spare parts and technical support.
5.Service quality assurance:our sale staffs are all experience and professional,who can provide the most proper system design and optimized equipment for the customers.
JACA has been specialized in manufacturing diesel generators and accessories for more than 20years. It has knotted fast and extensive business ties with over 1000 clients both in China and abroad, and turned up as a leading player in the world generator area. JACA is the executive member of the China Chamber of Machnery & Electronics and an AAA grade company for bank credit entitled by the bank in China.
JACA has a wide range of qualified diesel generators for sale, including silent type diesel generator, open type diesel generator, portable diesel generator, trailer diesel generator, container diesel generator and diesel generator with Cummins, DEUTZ, Volvo, SME engine and Stamford, meccatte alternator and also with famous Chinese brand engines like SDEC, Kofo, Cangchai and etc.
JACA products are widely used in the application areas of industry, energy, chemistry, mine, hospital, building, transportation and water conservancy, etc. Power changes life! We are devoting ourselves to more power applications of diesel generator.
Customer first, good service, high quaity are our missions! We are looking forward to set up brand new business relationship with you in prosperous 2015!
