| Prod Model: |
50kw |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
One Year or 1500 Years |
| Gas Source: |
Gas |
Product Description

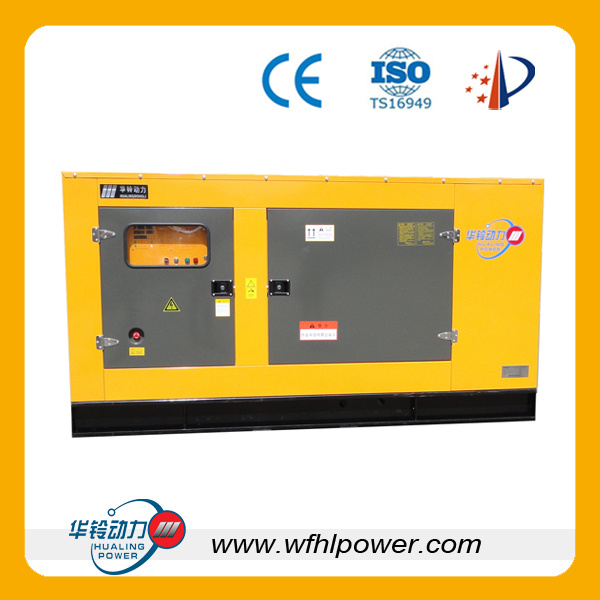

50kw gas generators
1. Ratings from 8kW to 800kW
2. Powered by HuaLing engines
3. Wide range of factory-designed options
4. Easy to specify, permit, install and test
5. World-class fuel efficiency and low life-cycle costs
6. Excellent transient response and steady state performance
7. Emissions compliance with most worldwide regulations
|
Data of Natural Gas Generator |
|
|
|
|
|
HL100GF Natural Gas Generator |
|
Data of Technology |
|
Emission standard |
mg/m³ |
EII |
|
Intake Air Temperature |
Deg C |
<45 |
|
Before Air to Air |
Deg C |
82-87 |
|
After Air to Air |
Deg C |
35-42 |
|
Generator Data |
|
|
|
Rated power factor |
0.8 |
Operation Continous/Kw |
100 |
|
Full power |
Kw |
276 |
|
Electric Efficiency |
% |
36.2 |
|
Thermal Efficiency |
% |
87.9 |
|
Engine Data |
|
|
|
Fire order |
|
1-5-3-6-2-4 |
|
Over speed |
rpm |
2160 |
|
Over RPM |
rpm |
2160 |
|
Oil |
L |
16.4 |
|
Water |
L |
21.9 |
|
Back pressure |
kpa |
10.2 |
|
Comsumption |
|
|
|
Natural gas(based on 36Mj/cube) |
m3/kw•h |
<0.3 |
|
Oil |
g/kWh |
<1.5 |
|
Thermal Radiation |
|
|
|
water radiator and oil radiator |
Kw |
18 |
|
Exhaust pipe(based on 120 degree) |
Kw |
5 |
|
Engine |
Kw |
8 |
|
Alternator |
Kw |
6 |
|
Coolant system |
|
|
|
Water temperature |
Deg C |
95 |
|
Oil temperature |
Deg C |
<120 |
|
Exhaust pipe(based on 120 degree) |
Kw |
100 |
|
Exhaust pipe System |
|
|
|
Before turbo charger |
Deg C |
660±25 |
|
Ratio of exhaust flow |
m³/h |
900 |
|
Ratio of Fan |
m³/s |
5.8 |
|
Noice Level |
|
|
|
1 meter fay |
db(A) |
100 |
Weifang Hualing POWER CO. Ltd. It is located in the Power city, WEIFANG. With the integration of R&D, Design, Producing, Marketing and whole project construction, specializes in Energy, Electricity power, energy-saving, Environmental protection project.
The company has been identified OEM certificates by 8 World famous Engine group, ISO9001 quality management system certification, China energy-saving product certification. The company invested 2.6 billion RMB in the product line, and now is the first and top diesel engine and gas engine product line.
We produced a series multi-point injection electronic control engine and report to the National Development and reform commission, series of engines on the HL. CNG special report on current trends.
Since 2008, the product of HUALING Power Co., Ltd. Enter to the oil industry, develop and produce wellhead gas generating set, now has been widely used in the CBM oil brand and running in the subsidiaries.
