| Prod Model: |
BPX550 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cooling Method: |
Water Cooling |
| Stroke: |
Four Stroke |
| Installation Method: |
Fixed |
| Type: |
Self-Starting Diesel Generator |
| Output Type: |
AC Single Phase |
Product Description
Our company is a professional manufacture of generator set. We can provide our customer diesel generator set, gas genset, power generator, mobile trailer genset, silent generator set, biogas genset. We also support all kings of genset brands such as Cummins diesel genset, mtu genset, perkins diesel generator set

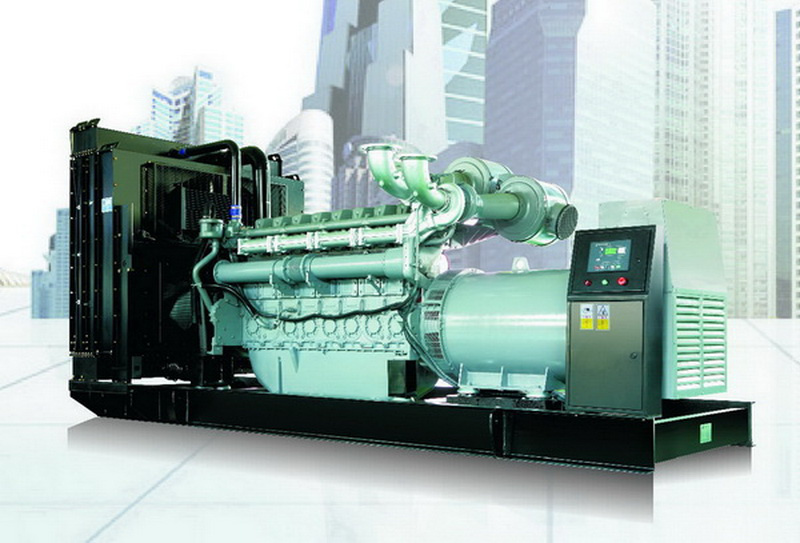

Perkins Diesel Generator Set Technical Parameters
Generator set
Brand: Perkins Diesel Generator Set
Genset Model: BPX550
Prime power(KW/kVA) 400 / 500
Standby power(KW/kVA) 440 / 550
Rated current(A) 722
Rated voltage (V) 400/230
Rated frequency(Hz) 50Hz
Phases arrangement 3phase 4 line
Power factor 0.8(lagging )
Voltage unloaded waveform distortion 5
Steady state voltage regulation rate plusmn; 0.5
Transient state voltage regulation rate plusmn; 20~-15
Voltage stabilization time (s) 2
Voltage fluctuation rate 0.5
Steady state frequency regulation rate plusmn; 5(0-5 adjustable)
Transient state frequency regulation rate +10 ~ -7
Frequency stabilization time(s) 3
Frequency fluctuation rate 0.5
Starting method DC 24V electric starting
L*W*H(mm) 3750*1150× 2000
Weight (kg) 3500
Standard atmosphere conditions Complied with standards of GB1105, ISO3046
Above sea level(m) 1000
Environment temperature(Centigrade ) 40
Relative humidity(%) 95
NoisedB(A)LP7M 92
Technical standards Complied with the standards of Reciprocating internal combustion engine driven alternating current generating sets: GB/T2820. And ISO 14001: 2004
Engine
Engine brand Perkins
Engine model 2506C-E15TAG2
Broke*times; Stroke(mm) 137*171
No. Of cylinders and arrangement 6L
Displacement(L) 15.2
Compression ratio 16: 1
Rated revolving speed(rpm) 1500
Effective average cylinder pressure(kPa) 2405
Induction system Exhaust turbocharged
Maximum resistance of intake system (kPa) 2.5
Air consumption(m3/min) 35.8
Maximum exhaust back pressure(kPa) 6.0
Exhaust smoke level(m3/min) 94
Exhaust gas temperature(Centigrade ) 550
Cooling method Cooled by water and fan
Exhaust air rate (m3/min) 564
Cooling liquid total capacity(L) 58
Max. Outlet water temp. (Centigrade ) 103
Coolant flow(L/S) 5.7
Min. In/out area(m2) 3.0/2.4
Thermostat rang(Centigrade ) 88-98
Oil total capacity(L) 62
Fuel consumption 100% loaded (L/H) 106
Oil consumption 0.5
Governing method Electrical
Oil supply Direct injection
Alternator
Brand Marathon (Engga, Leroy -somer optional )
Model MP-400-4A/S
Rated capacity(KW/kVA) 400/500
Excitation Method Brushless, self-excitation
Protection class IP22
Insulation class H
Winding pitch 2/3
Overspeed capacity 2250rpm
Short circuit current capacity 300%(3In): 10s
Telephone harmonic factorTHF 2%
Rated Alternator temperature rise 125Centigrade
Controller
Model DSE702
Contents Overspeed\oil-pressure\water temperature\charging failure\showing alarm trouble
Main function High water temperature\low oil pressure\overspeed\starting failure\key starter \samrt remote starter.
|
BS POWER DIESEL GENERATOR SET |
|
50HZ 1500rpm 400/230V |
|
PERKINS MARATHON |
|
Genset Model |
KVA |
KW |
Engine Model (PERKINS) |
Cyl. |
Displacement (L) |
Alternator Model (MARATHON) |
Maximum Current(A) |
Fuel cons.100% (L/H) |
Net weight (kg) |
Dimensions (L x W x H) MM |
|
Prime |
Standby |
Prime |
Standby |
Open Type |
Silent Type |
|
BPX33 |
30 |
33 |
24 |
26 |
1103A-33G |
3L |
3.3 |
GM-24-4 |
48 |
7.1 |
827 |
750x650x1250 |
2200x1000x1600 |
|
BPX50 |
45 |
50 |
36 |
40 |
1103A-33TG1 |
3L |
3.3 |
MP-40-4 |
72 |
10.7 |
934 |
750x650x1250 |
2200x1000x1600 |
|
BPX66 |
60 |
66 |
48 |
53 |
1103A-33TG2 |
3L |
3.3 |
MP-48-4 |
95 |
13.9 |
954 |
750x650x1252 |
2300x1100x1600 |
|
BPX88 |
80 |
88 |
64 |
70 |
1104A-44TG2 |
4L |
4.4 |
MP-64-4 |
125 |
18.7 |
1089 |
750x650x1253 |
2500x1100x1600 |
|
BPX110 |
100 |
110 |
80 |
88 |
1104C-44TAG2 |
4L |
4.41 |
MP-80-4 |
159 |
22.6 |
1149 |
2000x650x1254 |
2800x1100x1600 |
|
BPX150 |
135 |
150 |
108 |
120 |
1006TAG |
6L |
5.99 |
MP-104-4 |
216 |
31.5 |
1504 |
2350x700x1450 |
3000x1100x1850 |
|
BPX165 |
150 |
165 |
120 |
132 |
1006TAG2 |
6L |
5.99 |
MP-120-4 |
238 |
41 |
1575 |
2350x750x1450 |
3100x1100x1900 |
|
BPX200 |
180 |
200 |
144 |
160 |
1106C-E66TAG4 |
6L |
6.6 |
MP-144-4 |
288 |
44.6 |
1685 |
2350x750x1450 |
3100x1100x1900 |
|
BPX220 |
200 |
220 |
160 |
176 |
1306C-E87TAG3 |
6L |
8.7 |
MP-160-4 |
317 |
49.1 |
1988 |
2660x900x1500 |
4000x1300x1900 |
|
BPX250 |
227 |
250 |
184 |
200 |
1306C-E87TAG4 |
6L |
8.7 |
MP-180-4 |
360 |
50.3 |
2083 |
2800x1000x1600 |
4200x1400x2000 |
|
BPX275 |
250 |
275 |
200 |
220 |
1306C-E87TAG6 |
6L |
8.7 |
MP-200-4 |
397 |
55.6 |
2113 |
2800x1000x1600 |
4200x1400x2000 |
|
BPX385 |
350 |
385 |
280 |
308 |
2206C-E13TAG2 |
6L |
12.5 |
MP-280-4 |
556 |
84 |
3289 |
3070x1000x1170 |
4500x1400x2200 |
|
BPX440 |
400 |
440 |
320 |
352 |
2206C-E13TAG3 |
6L |
12.5 |
MP-320-4 |
635 |
92 |
3498 |
3150x1150x1780 |
4700x1500x2200 |
|
BPX500 |
454 |
500 |
360 |
400 |
2506A/C-E15TAG1 |
6L |
15.2 |
MP-350-4A/S |
721 |
99 |
3876 |
3500x1150x1780 |
5300x1500x2200 |
|
BPX550 |
500 |
550 |
400 |
440 |
2506A/C-E15TAG2 |
6L |
15.2 |
MP-400-4A/S |
794 |
106 |
3985 |
3750x1150x2000 |
5800x1500x2500 |
|
BPX650 |
590 |
650 |
470 |
520 |
2806C-E18TAG1A |
6L |
18.1 |
MP-480-4AS |
939 |
129 |
4767 |
4069x1536x1958 |
6100x2000x2500 |
|
BPX700 |
650 |
700 |
520 |
560 |
2806A-E18TAG2 |
6L |
18.1 |
MP-500-4A/S |
1010 |
132 |
4777 |
4100x1550x2000 |
6200x2000x2500 |
|
BPX800 |
725 |
800 |
580 |
640 |
4006-23TAG2A |
6L |
22.9 |
MX-600-4 |
1154 |
157 |
6278 |
3800x1700x2300 |
6000x2300x2800 |
|
BPX880 |
800 |
880 |
640 |
704 |
4006-23TAG3A |
6L |
22.9 |
MX-630-4 |
1270 |
175 |
6318 |
3800x1750x2350 |
6000x2360x2800 |
|
BPX1100 |
1000 |
1100 |
800 |
880 |
4008TAG2A |
8L |
30.6 |
MX-850-4 |
1587 |
194 |
8892 |
5100x1950x2500 |
8300x2500x3000 |
|
BPX1375 |
1250 |
1375 |
1000 |
1100 |
4012-46TWG2A |
12V |
45.8 |
MX-1030-4 |
1984 |
258 |
11716 |
5100x2280x3050 |
8300x2600x3600 |
|
BPX1656 |
1505 |
1656 |
1204 |
1325 |
4012-46TAG2A |
12V |
45.8 |
MX-1240-4 |
2390 |
281 |
12428 |
4950x2280x3050 |
8000x2600x3600 |
|
BPX1875 |
1705 |
1875 |
1364 |
1500 |
4012-46TAG3A |
12V |
45.8 |
MX-1350-4 |
2706 |
370 |
13664 |
5450x2280x3150 |
9000x2800x3800 |
|
BPX2028 |
1844 |
2028 |
1476 |
1622 |
4016TAG1A |
16V |
61.1 |
MX-1540-4 |
2927 |
383 |
13808 |
5450x2280x3150 |
9000x2800x3800 |
|
BPX2250 |
2000 |
2250 |
1646 |
1800 |
4016TAG2A |
16V |
61.1 |
MX-1800-4 |
3247 |
434 |
15331 |
5450x2280x3150 |
9000x2800x3800 |
|
BPX2475 |
2058 |
2475 |
1800 |
1980 |
4016-61TRG3 |
16V |
61.1 |
MX-1800-4 |
3608 |
473 |
16950 |
5450x2280x3150 |
10000x2900x3800 |
Guangdong Binshi Power Technology Co., Ltd is one of the leading manufacturers of diesel and gas generator sets (generator, genset, diesel generator, power generator, silent generator, generating set, power generation). With years' professional experience in generator set design, manufacturing, sale and service, BS Power has won good reputation both at home and abroad.
BS Power has built a number of production bases and service centers across the country. Among them, the South China production base and after-sales service center which is located in Dongguan-the famous manufacturing city in the world, covering an area of 8, 000 square meters, owns more than 100 employees, in which 58 percent is engineering technicians, and has numbers of senior engineers. BS Power is people-oriented, creating the best technical management, marketing and planning talents. With abundant resources and innovative research capabilities, BS Power has established a research and development center with famous domestic universities.
In order to improve BS Power's production and technology capability. The second production base, which is located in Hubei Province with the total investment of 7, 000 million yuan, covering an area of 35, 000 square meters, has been put into production.
BS Power has established long-term close partnership with the world famous generator manufactures, such as Cummins in USA, Perkins in UK, MTU and Deutz in Germany, Doosan in Korea, and the genset is equipped with the famous alternator manufactures, like Marathon (USA), Leroy-somer(France) and Engga(UK). Meanwhile, BS Power has achieved ISO9001: 2008 Quality Certification System and ISO14001: 2004 Environmental Management System.
BS Power sincerely wishes to cooperate with distributors of gensets worldwide to expand its high-quality products in your market to reach the win-win goal in the future. Information about BS Power(manufacturer), products will be offered on your request.
