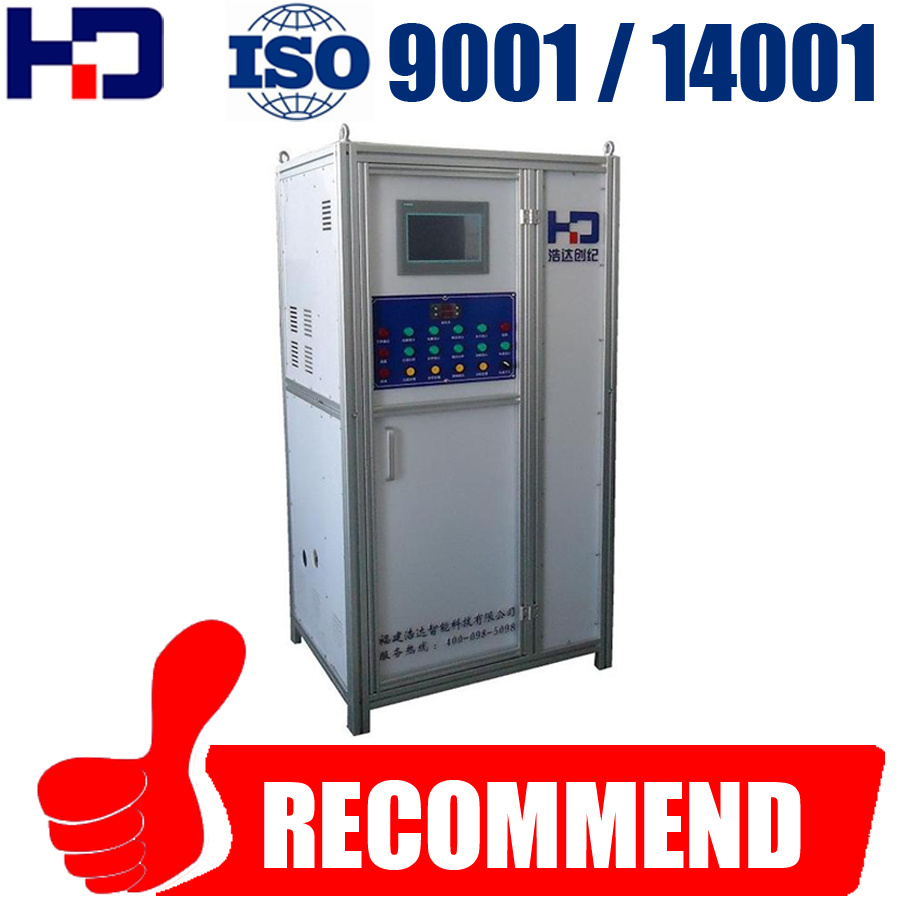

5kg/H 8000ppm Activable Cl Sodium Hypochlorite Generator for Water Disinfection

Prod Model:	HD-5K
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input Voltage:	380VAC/50Hz(User Defined)
Electrolyte:	2.5%-3.0% Diluting Brine
Chlorine Content:	Above 5000ppm
Chlorine Production:	5kg/H
Host Machine Weight:	335kg
Rated Power:	33kw
Work Type:	24 Hours Auto Control
Salt Consumption:	<3.0kg/Kg.Cl
Power Consumption:	< 3.5kw/Kg.Cl
Material Of Electrode:	Pure Titanium

Product Description




We are

- Leader of water treatment business in China
- "Trusted Enterprise" issued by Government of Fujian Province
- "Well-Known Trademark of Fujian"
-Director unit of EMCA (Enterprise Manager Configuration Assistant) of Fujian Energy Conservation Association
-Industrial Enterprise with Reputation for Quality Promise in Fujian Province
-One of formal membership of Environment Protection Association of Fujian Province

We have

- Certificate of ISO9001/ISO14001
- More than 10 years experience
- Labs set up in specialized high-technology park
- More than 6 technical patents
-More than 3 branches are established nationwide


We provide water treatment to

- Water company in Tashkent, capital of O'zbekiston
- Fuel company of Osaka, Japan
- Universiade Shenzhen 2011
- Airport in Zhengzhou
- Olympic center of Fuzhou


  Introduction

HD sodium hypochlorite generator works through the electrolysis of salt water. The salt water is electrolyzed into sodium hypochlorite while sodium hypochlorite is a kind of disinfectant which get strong antivirus and bleach power. The strong oxidant is widely used to sterilize in food processing enterprises, nuclear power plant, thermal power plant circulating water system, petrochemicals, printing and dyeing enterprises, drinking water, hospitals and cities.
The reaction equation of the electrolysis of the generator:

                        NaCl+ H2O = NaClO + H2↑

The electrolysis process of sodium hypochlorite generator is a process of electrochemistry. The only
 materials needed are salt and water, the NaClO solution produced is very pure. Though the principle is simple, there are quite a lot of qualifications.


  sodium hypochlorite generator is widely applied in disinfection and purification of water for hospitals, schools, hotels, food processing, industrial or power system circulating, water station,  sewage treatment plant ., etc
naclo generator

Main components
Electrolytic cell
1.UPVC  resistance corrosion pipe, internal electrode plate
2.Between anode and  cathode used PVDF material to isolation
3.Resistant  to corrosion, high stability, long life characteristics
Electrode plate
1.HADA company patent technology, the cathode and the anode were all made of pure titanium TA1
2.Surface used nanotechnology, ruthenium, iridium oxide coated layer
3.25 times coated, coating thickness of 20um
4.Ensured the electrode has the long service life
 Electrolysis power
1.Marine-grade high-frequency voltage constant current power supply
2.Power conversion efficiency>92%
3.Resist general moisture, dust ,and corrosive,low heat ,stable
Siemens PLC
1.Directly controlled the safe, reliable operation of the generator system
2.Alarmed and auto stopped the Siemens SmartSeries LC touch screen
3.Displayed the running state, through the touch screen to adjust and set all parameters.


1) we dissolve salt in the dissolving tank into 25% concentration salt water;
 2) Pump through filter;
 3) Diluting 25% salt water into 3% salt water; ( If your machine near the sea, than sea water can be used instand of salt water)
 4) Pump into the machine for electrolysis;
 5) The sodium hypochlorite liquid come into storage tank;

if the dosing system is needed, then we can go on:
 6) We'll set up one water flow meter to get the flow data refer to system;
 7) Use dosing pump to send the liquid into the pipe mix up with the water in the pipe mixer;
 8) After that, there is another chlorine detective device, testing the concentration of chlorine in the water;
 9) The data from the second detective device will be received by PLC centre, and control centre will control the dosing pump according to the the data.

Followings are the specification of machine, you can choose the model according to the output chlorine:


Model No.	Type	Active Chlorine Output	Hourly cost for 0.5%		Hourly Cost for 1%~15%
			Salt	Electricity	Salt	Electricity
HDT-100	All-in-one	100g/h	300 g/h	400W	N/A	N/A
HDT-200	All-in-one	200g/h	600 g/h	800W	N/A	N/A
HDT-300	All-in-one	300g/h	900 g/h	1200W	N/A	N/A
HDT-400	All-in-one	400g/h	1.2 kg/h	1600W	N/A	N/A
HDT-500	All-in-one	500g/h	1.5 kg/h	2000W	N/A	N/A
HD-400	Split-type	400g/h	1.2 kg/h	1600W	N/A	N/A
HD-500	Split-type	500g/h	1.5 kg/h	2000W	N/A	N/A
HD-600	Split-type	600g/h	1.8 kg/h	2400W	N/A	N/A
HD-700	Split-type	700g/h	2.1 kg/h	2800W	N/A	N/A
HD-800	Split-type	800g/h	2.4 kg/h	3200W	N/A	N/A
HD-1K	Split-type	1.0 kg/h	3 kg/h	4KW	N/A	N/A
HD-1.5K	Split-type	1.5 kg/h	4.5 kg/h	6KW	N/A	N/A
HD-2K	Split-type	2.0 kg/h	6 kg/h	8KW	N/A	N/A
HD-2.5K	Split-type	2.5 kg/h	7.5 kg/h	10KW	N/A	N/A
HD-3K	Split-type	3.0 kg/h	9 kg/h	12KW	6 kg/h	12KW
HD-4K	Split-type	4.0 kg/h	12 kg/h	16KW	8 kg/h	16KW
HD-5K	Split-type	5.0 kg/h	15 kg/h	20KW	10 kg/h	20KW
HD-6K	Split-type	6.0 kg/h	17 kg/h	24KW	12 kg/h	24KW
HD-8K	Split-type	8.0 kg/h	23 kg/h	32KW	16 kg/h	32KW
HD-10K	Split-type	10 kg/h	30 kg/h	40KW	20 kg/h	40KW
HD-12K	Split-type	12 kg/h	36 kg/h	46KW	23 kg/h	46KW
HD-15K	Split-type	15 kg/h	45 kg/h	60KW	29 kg/h	60KW
HD-18K	Split-type	18 kg/h	54 kg/h	72KW	35 kg/h	72KW
HD-20K	Split-type	20 kg/h	60 kg/h	80KW	39 kg/h	80KW
HD-25K	Split-type	25 kg/h	75 kg/h	100KW	49 kg/h	100KW
HD-30K	Split-type	30 kg/h	90 kg/h	120KW	59 kg/h	120KW
HD-40K	Split-type	40 kg/h	120 kg/h	160KW	78 kg/h	160KW
HD-50K	Split-type	50 kg/h	150 kg/h	200KW	98 kg/h	200KW
HD-60K	Split-type	60 kg/h	180 kg/h	240KW	117 kg/h	240KW


Guarantee and after-sale service

1years guarantee for whole generator, 5years guarantee for Electrolytic cell
Technical support online and local
Extra spare parts provided

Quick response after sale service






 Description


Model	HD-5K
Size	1200mm(L) ×860mm(W) ×1950mm(H)
Host Machine Weight	335Kg
Rated Voltage	220/380VAC/50Hz(user defined)
Chlorine production	above 5Kg / h
Electrolyte	2.5%-3.0% diluting brine
Content of Available CL	above 5000ppm
Rated Power	33KW
Life	More than 10 years
Work	24 hours auto control
Material of electrode	Pure titanium


Package and payment



Package	First wrapped with plastic wrap , then use MDF wood packaging, involving of high-temperature -treated for exporting
Payment Terms	T/T Pay 30% advance, and the remaining 70% in the bill of lading copy paid
