North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cooling Method:
Air Cooled
Stroke:
Four Stroke
Installation Method:
Portable
Type:
Basic Diesel Generator
Output Type:
AC Single Phase
Usage:
Home Use ,Factory Use,Land Use
Product Description

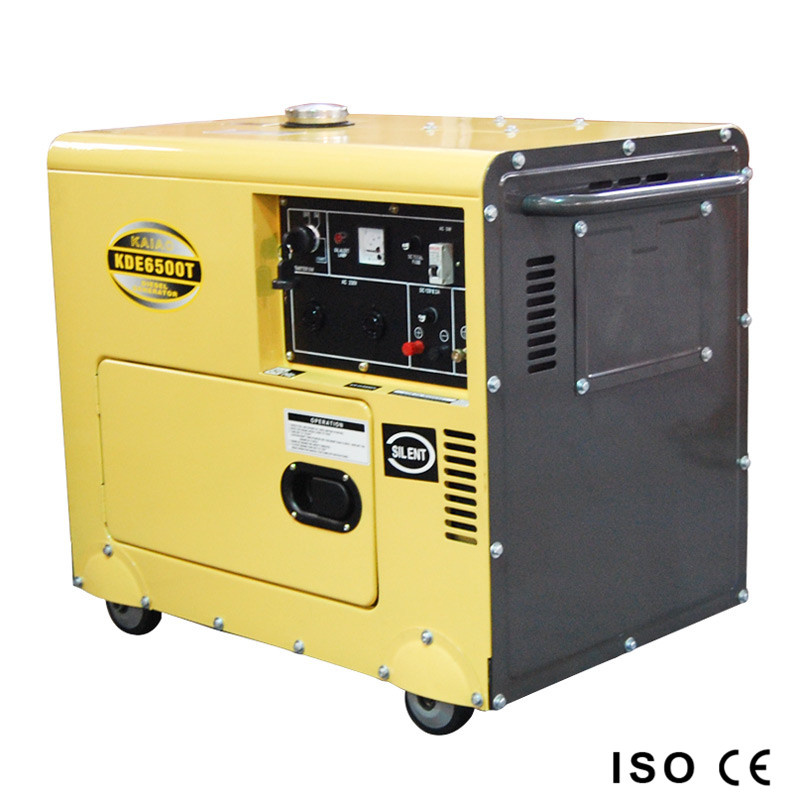

1. 5kVA diesel generator set with CE&ISO9001-2000 approved 2. Small portable diesel generator 3. New automatic regulator ensures steady voltage output 4. Low oil pressure alarm system, which can shut down the engine automatically 5. Electric start ensures rapid starts of the set 6. It meets the diversified demands from customers
Diesel generator KDE6700T
Generator Model
KDE6700T
Frequency (Hz)
50
60
Output power (KVA)
4.5
5
Max. Power(KVA)
5
5.5
Voltage (V)
115/230
120/240
Current (A)
39.1/19.6
41.7/20.8
Engine speed (r/min)
3000
3600
Phase
Singe-phase
Power facter
1
Excitation system
Self-excited constant voltage
Noise level (7m)
DB (A): 72
Fuel tank capacity (L)
15
Structure
Slient
Panel
Ordinary
Outputsocket
Two
Output terminal post
No
DC12V output
Terminal post
Net weight
158
Dimension(L*W*H)
970*560*770
Engine Model
KA186FA
Engine Type
Single-cylinder, vertical, air-cooled, direct injection, four-stroke
Bore*stroke (mm)
86 *72
Displacement (L)
0.418
Power (KW)
5.7/3000
6.3/3600
Fuel consumption rate (g. KW/h)
275.1
281.5
Compression ratio
19
Lubrication system
Spring
Engine starting system
Electric starter
Diesel oil model
Summer: 0#, winter: -10#
Lube oil model
SAE10W-30 (above CD grade)
Lube oil capacity (L)
1.65
Battery capacity(V-AH)
12V-36Ah
Wuxi Kaiao Power Machinery Co., Ltd. Specialized in the development and manufacture of small special:
Electric welding set, construction machinery, and gardenging machinery, farming machinery etc.
Electric welding set, construction machinery, and gardenging machinery, etc.
Kaiao lies on the beautiful Tai-Lake, which allows traffic convenience. Occupying a site area of 35 square meters with a gross floor area of 20000 square meters, we have more than 150 staff members, among which three are around 20 are professional technicians. Advanced production lines and inspection equipments allow high quality productions.
We insist on technical innovation promoting development collectively. We have a specific goal: Exerting our effort to offer our customers the high-quality productsand services.
Wuxi Kaiao Power Machinery Co., Ltd. Establishes the strategic policy emphasizing on quality and service, and the managemeng concept "cooperating, sincerity, mutualbenefit and enterprising". Create value for both our customers and us through innovation!
