| Prod Model: |
FDG6500CE |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| AVR Alternator: |
Overload Protection |
| Low Oil Shutdown System: |
Self-Excitation |
| Electric/Recoil Starter: |
Large Fuel Tank, Ensuring Hours of Continuous Outp |
| Large Silent Muffler & Air-Cleaner, Redu: |
Provides Stable Voltage and Current |
| Type: |
Self-Starting Diesel Generator |
| Installation Method: |
Portable |
| Stroke: |
Four Stroke |
| Cooling Method: |
Air Cooled |
| Output Type: |
AC Single Phase |
Product Description

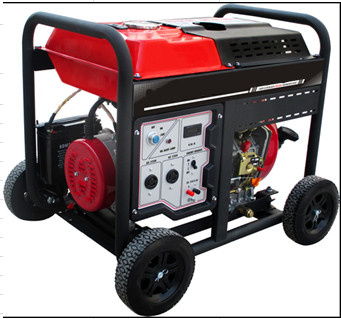

5kw Air cooled small portable diesel generator
4-stroke diesel generator,
4HP air cooled generator
Our biggest advantages: Top quality, Competitive price & Good after-sales service!
Detailed Product Description
Power for generator, home use, marine, standby power, emergency power, mini-tiller, etc. Using in Industrial, Commercial or Agricutural Field. We can
also produce according to your requirements.
1.The main features:
1. With CE certification and so on, powered by advanced diesel engine.
2. Noise-reducing enclosure, made of high-efficient noise-proof material.
3. Ideal for standby power supply or other use.
4. Large fuel tank, ensuring hours of continuous output.
5. Advanced direct fuel injection system.
6. Large silent muffler & air-cleaner, reducing exhaust and intake noise.
7. A variety of specially-designed control panels available for different markets.
8. Provides stable voltage and current.
9. Overload protection for safe running.
2. Our Competitive Advantages:
1.Various kinds of generator models, advanced technology, long performance life.
2.We are manufacturer and we have our own export right.
3.Top quality, Competitive price & Good after-sales service.
4.We can supply sample, also offer the spare parts.
5.Long exporting history to many countries
6.Positive customer feedback from abroad
7.As your design for the package and brands.
Alternator | | FDG6500C(CE/CSE) | FDG7500C(CE/CSE) | FDG8500C(CE/CSE) |
| AC Frequency/Hz | 50 | 50 | 50 |
| Voltage/V | 230/400 |
| Rated Output/kw | 4.5 | 5.2 | 6.0 |
| Max. Output/kw | 5.0 | 5.5 | 6.5 |
| Rated Speed(rpm) | 3000 |
| Power Factor(COSΦ) | 1.0/0.8 |
| Phases | Single |
| Excitation Mode | Brush self-excitation and constant voltage |
| Engine | Structure Type | Open-frame | Open-frame | Open-frame |
| Fuel Consumption Rate(g/kW.hr) | ≤275 | ≤275 | ≤275 |
| Fuel Tank Capacity/L | 13 | 13 | 13 |
| Continuous Running Time(hr) | 7 | 6.5 | 5.5 |
| Noise Level (7m)dB(A) | 85 | 85 | 85 |
| Starting System | Electric start | Electric start | Electric start |
| Fuel Type | 0#(summer)-10#(winter) - 35#(chillness) diesel |
| Lube Oil Brand | Above CD grade or SAE 10W-30, 15W-40 |
| Engine Model | 186FA | 188FA | 192FA |
| Engine Type | Single cylinder, Four-stroke, OHV, Air-cooled |
| Bore×Stroke(mm) | 86×72 | 88×75 | 92×75 |
| Displacements (cc) | 418 | 456 | 499 |
| Compression Ratio | 19:1 | 19:1 | 19:1 |
| Power/Speed(kw)/(rpm) | 6.0/3000 | 6.6/3000 | 8.2/3000 |
| Packing | Net Weight | FDG6500C:95
FDG6500CE/CSE:100 | FDG7500C:96
FDG7500CE/CSE:102 | FDG8500C:100
FDG8500CE/CSE:106 |
| 740×500×600 | 740×500×600 | 740×500×600 |
| DC Output For All Models | YES | YES | YES |
| Three-in-one Digital Meter(V.H.F) | YES | YES | YES |
