CE Approved 5kw gasoline Generators of Top Quality WH6500
Feature:
1.Start easily with a lightly pull
2.16months warranty
3.stable voltage and frequency
4.low fuel consumption
5.We can supply OEM brand
6.We will according to customer's demand
Quality Approvals: CE
Main Export Markets: Eastern Europe, South America, Mid East, South Africa, Asia, Western Europe, Australia, Russia.
Payment Terms: T/T or L/C
FOB Port: Ningbo or Shanghai
Lead Time: 20 days
Model No.
WH6500-H
Rated frequency(Hz)
50
Rated voltage(V)
220
Rated output power(kW)
5.0
Max. output power(kW)
5.5
Rated rotation speed(rpm)
3000
DC output
12V 8A
Power factor
1.0
Phase number
singe
Noise level dB@7m
72-78
Fuel tank (L)
23
Engine model
WG390
Engien type
Single cylinder, 4-stroke, air-cooled, OHV, gasoline engine
Displacement (cc)
389
Compression ratio
8.5: 1
Rated rotation speed(rpm)
13.0/3600
T. C. I.
With
Spark plug
F6RTC
Starting system
Recoil starter
Rotation direction
Clockwise
Fuel type
Automotive unleaded gasoline
Lube oil brand
SAE10W30 (above CC grade)
Low oil alarm system
With
Packing
Packing: natural carton box
Net Weight(kg)
94
Gross Weight(kg)
95
Outer-Carton(mm)
Length
Width
Height
695
540
595
Container Type
20FT
40FT
40HQ
QTY
101
215
286

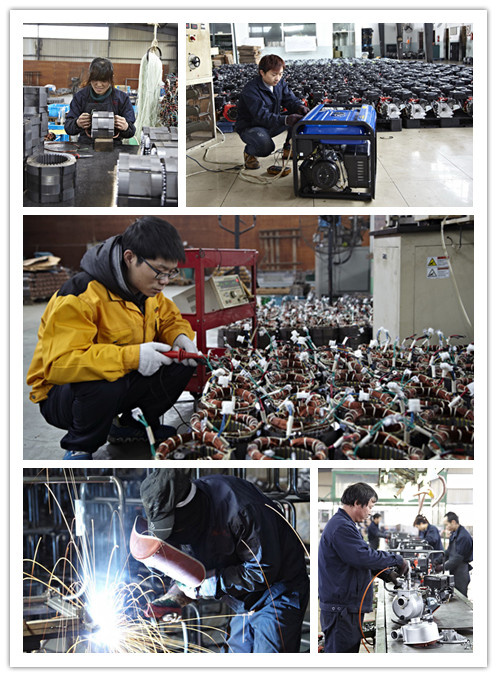

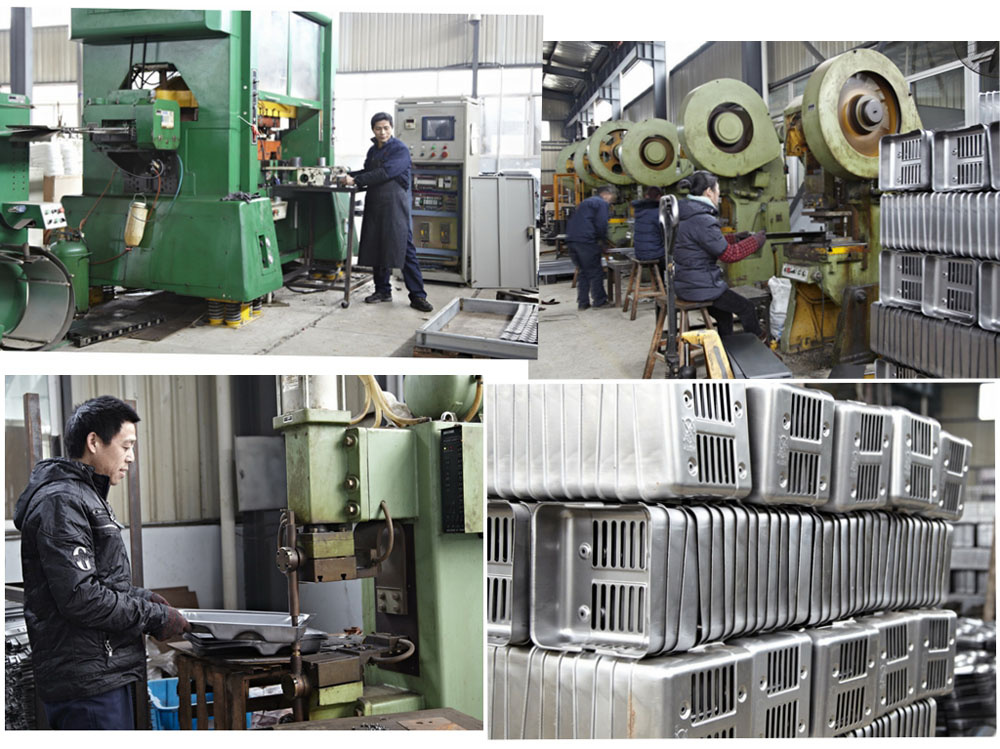

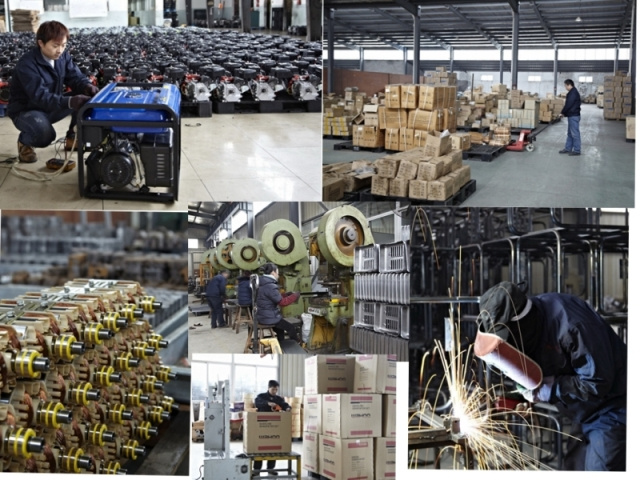

Production Machinery:
Punching Machine
J23, JB04-1
7
5.0
Cutting Machine
215
3
5.0
Tube Bending Machine
DB38
3
5.0
Plate Shearing Machine
QC12Y-4*2500
1
5.0
Drilling Machine
Z512,Z4116
8
5.0
Bench Milling Machine
Xj51
1
5.0
Welding Machine
TCW-32D, NBC-350, DN160
10
4.0
Winding Machine
PR-2
2
4.0
Cleaning Machine
ZQX-2000
1
3.0
Marking Machine
HUAPU
2
4.0
Hydraulic Machine
MAOYI, 5T
8
4.0
Machine Name
Brand & Model No.
Quantity
Number of Year(s) Used
Testing Machinery:
Withstand Voltage Tester
CS2670A
4
3.0
Low DC Resistance Tester
TH2512, WB2511A
2
3.0
Performance Test Bench
No Information
4
5.0
Spring Tension Tester
TLS-S
1
3.0
Rockwell Apparatus
HR-150A
2
3.0
Gear Runout Tester
1-6mm
1
3.0
Torque Tester
NJ-100
1
3.0
Test Platform
No Information
1
3.0
Inverter Welder Tester
SJ
1
4.0
Turbine Dynamometer
No Information
2
4.0
Machine Name
Brand & Model No.
Quantity
Number of Year(s) Used
Patented Motor Designs
We are one of the few companies in mainland China that has patents on its motor designs. That means you won' T have problems with IP protection laws when you source our power generators, water pumps, pressure washers and other motor-driven items, even in strict regions such as North America and Europe.
Wanhao has won over many customers around the world because we offer competitive prices and are dedicated to craftsmanship and quality. Some of our valued customers include Home Depot, GMC, Electrolux and TTi. We have EPA 2005 Motor Year Certification and CE certification.
A Variety of Production Capabilities
Our company designs and manufactures general purpose gasoline engines from 2.6HP to 13.5HP, gasoline generators from 1kW to 6kW, water pumps from 1.5 inches to 4 inches, and pressure washers at 1800PSI, 2500PSI and 2700PSI.
Emphasis on Quality Control
Much of Wanhao' S success is due to our extensive Quality Control Department. Our 30 QC staff carefully perform inspections at every stage of production, from the time we receive raw materials to packaging. Noise, power, and stability are tested to ensure that our engines can endure 580 hours of constant use. Our management system is approved under ISO 9001: 2000, and we have CE product approval.
Service
We' Ll print custom logos and product documentation in your language, and provide spare parts for easily worn down components. We also can design and deliver OEM/ODM samples in one month. You can discuss your requirements with our English-speaking staff.
