| Prod Model: |
HAWT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Axis Type: |
Horizontal |
| Number Of Blade: |
Three Blade |
| Rotating Shaft: |
Horizontal |
| Stress Way Of Blade: |
Resistance |
Product Description
Main technical parameter as follows:

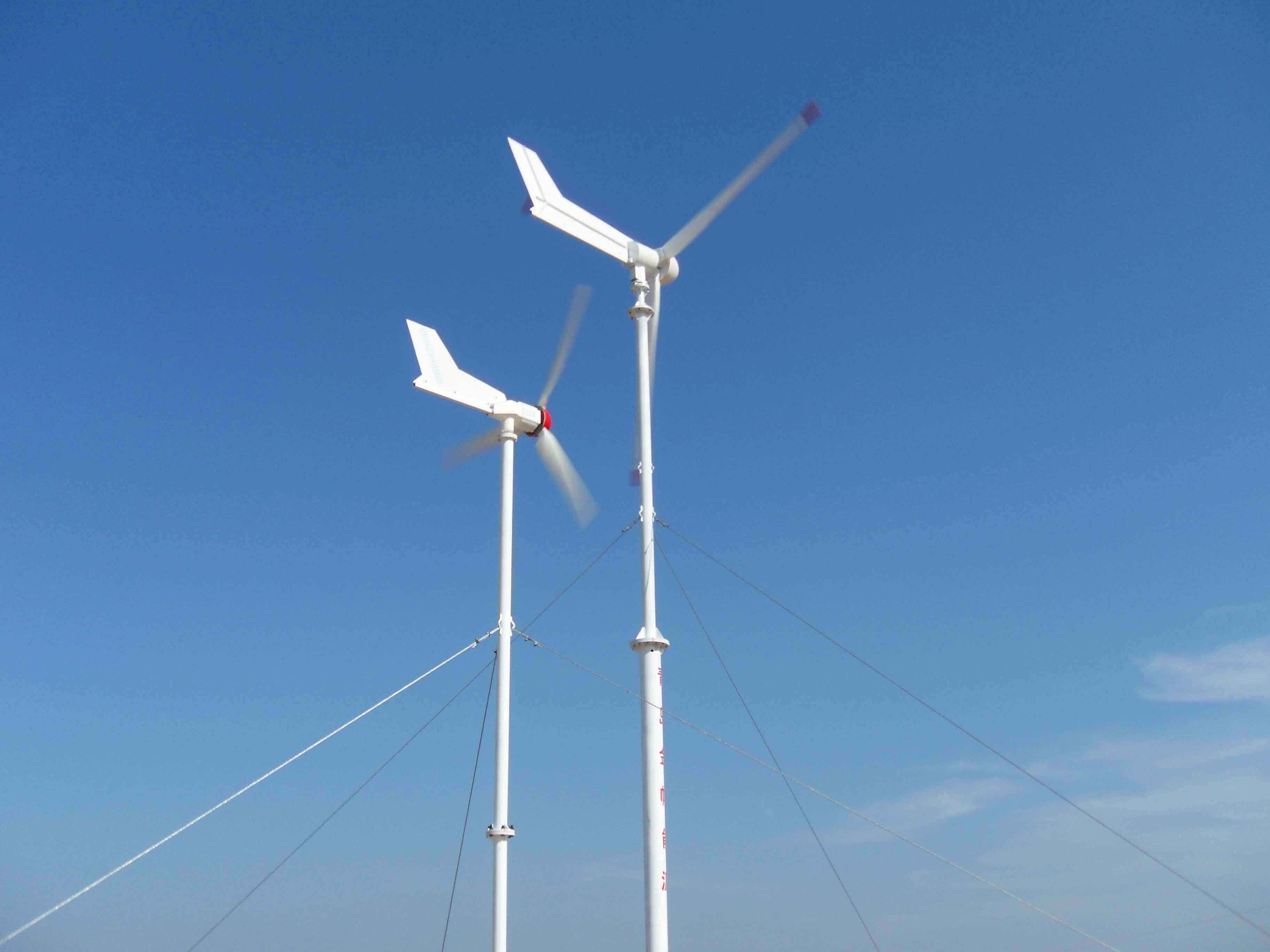

1. Machine Type: horizontal-axis wind turbine
2. blade form: propeller
3. blade number: 3 pcs
4. balde material: glass fibre reinforced plastic
5. type of generator:permanent-magnet 3 phase AC
6. type of tower: guy wire or free standing
Power: 5KW
Blade diameter (m): 6.0
Rated Rotated speed (r/min): 200
Rated speed (m/s): 10
Rated power: 5KW
Max power: 7KW
Output voltage (v): 220
Start up wind speed (m/s): 3
Work speed (m/s): 3-30
Security wind speed(m/s):50
High of tower (m): 9
Top quality except tower: 285kg
Tower Steel tube model (mm):φ133
speed regulation: leaning tail + electric brake
Capacity and quantity of battery: 12V200AH18 pcs
Can supply power for: Air conditioners, Refrigerators, Water pumps, Cookers, Color TV sets, Washing machines, Lighting, Electric fans, and Charge
| Rated Power | 5kw |
| Blades Number | 3 pcs |
| Rotor Diameter | 6m |
| Rated Rotated Speed | 200r/m |
| Rated Wind Speed | 10m/s |
| Output Voltage | 220v |
| Start Up Wind Speed | 3m/s |
| Operating Wind Speed | 3-30m/s |
| Security Wind Speed | 50m/s |
| Output Controller System | controller and inverter |
| Battery | 12V200AH 18pcs |
Willgain Power Industry Co., Limited is specialized in manufacturing and supplying wind turbine and generatering system since 2008. We mainly supply horizontal/vertical axis wind turbine from 300W-500kw, horizontal/vertical permanent magnet generator from 300W-1000kw with various speed based on customer's requirements and Francis/Kaplan type hydro turbine system below and over 50kw.
Our partner manufacturers are committed to continuously improving our operations and meeting the needs of our customers through innovation and new product development. We work closely with them to optimize the performance and cost-effectiveness of their processes.
