| Prod Model: |
DG7500SE |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Speed: |
3000/3600rpm |
| Frequency: |
50/60Hz |
| Cooling Method: |
Air Cooled |
| Stroke: |
Four Stroke |
| Installation Method: |
Fixed |
| Type: |
Self-Starting Diesel Generator |
| Output Type: |
DC |

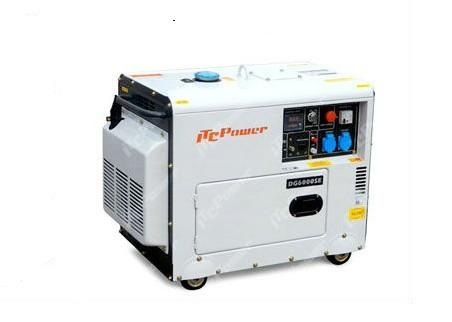

Product Description
Portable silent diesel generator is convienent for the family.
Genset
1. Canopy to reduce noise.
2. Double base frame to reduce vibrations
3. Larger fuel tank for longer autonomy
4. Integrated wheel on canopies
Control panel
1. LED3 / LED4 / LED5 digital display.
2. Emergency STOP button.
3. DC 12V output 8, 3A.
Engine
1.4 stroke and air cooled.
2. Direct electronic injection system.
Alternator
1.100% Copper Winding.
2. AVR automatic voltage regulation.
3. Brush type alternator.
Options
1. ATS box
2. Remote control
3. Fuel tank
4. Super silent
5. Air pre-heater
Diesel generator -- silent (soundproof)
|
Model
|
DG6000SE
|
DG6000SE-3
|
DG7000SE
|
DG7500SE-3
|
Frequency (Hz)
|
50
|
50
|
50
|
50
|
Rated Power (kVA)
|
4.5
|
5.6
|
5
|
6.25
|
Max.Power (kVA)
|
5
|
6.25
|
5.5
|
6.9
|
Voltage (V)
|
220
|
380/220
|
220
|
380/220
|
Current (A)
|
25
|
16.4
|
27.5
|
18
|
Sockets
|
2x16A
|
1x16A / 1x32A
|
2x16A
|
1x16A / 1x32A
|
Display
|
LED3
|
LED3
|
LED3
|
LED3
|
Fuel Tank Capacity (L)
|
15 / 30
|
15 / 30
|
15 / 30
|
15 / 30
|
Running Time (hr.)
|
6.2 / 12.5
|
6.2 / 12.5
|
6 / 12
|
6 / 12
|
Noise Level behind
7 Meters (dBA)
|
72
|
72
|
72
|
72
|
DC Output (V/A)
|
12 / 8.3
|
12 / 8.3
|
12 / 8.3
|
12 / 8.3
|
Battery (Ah)
|
30
|
30
|
30
|
30
|
Engine
|
Engine Type
|
Diesel engine
|
Diesel engine
|
Diesel engine
|
Diesel engine
|
Engine
|
D400E
|
D400E
|
D500E
|
D500E
|
Power Output (HP)
|
10
|
10
|
12
|
12
|
Start Method
|
Electric
|
Electric
|
Electric
|
Electric
|
Displacement (cc)
|
418
|
418
|
456
|
456
|
Oil Capacity (L)
|
1.65
|
1.65
|
1.65
|
1.65
|
Alternator
|
Alternator
|
AL5
|
AL5-3
|
AL6
|
AL6-3
|
Rated Power (kVA)
|
5
|
6.3
|
6
|
7.5
|
Power Factor (Cos φ )
|
1
|
0.8
|
1
|
0.8
|
Voltage Regulation
|
AVR
|
AVR
|
AVR
|
AVR
|
LOG.DATA
|
N.W.(kg)
|
152
|
152
|
156
|
156
|
G.W.(kg)
|
164
|
164
|
168
|
168
|
Products Size(mm)
|
920×520×740
|
920×520×740
|
920×520×740
|
920×520×740
|
