| Prod Model: |

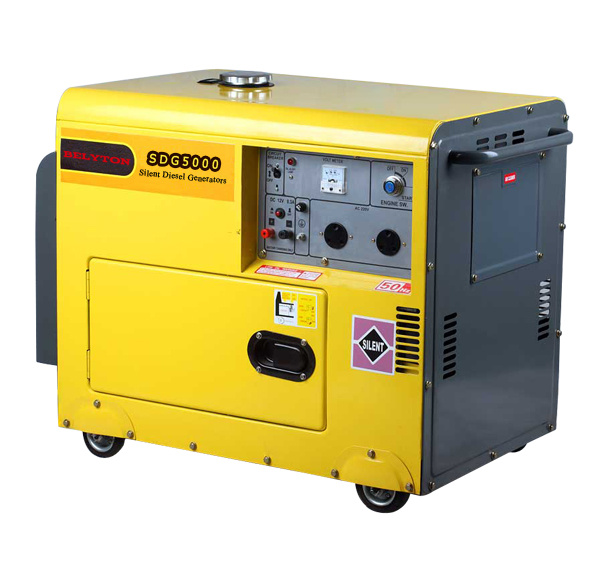

SDG5000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Any Color |
| Phase: |
Three or Single |
| Output: |
DC and AC |
| Ats: |
Inside or Outside |
| Cooling Method: |
Wind Cooling |
| Stroke: |
Four Stroke |
| Installation Method: |
Portable |
| Type: |
Self-Starting Diesel Generator |
Product Description
Electric starter ensures easy starting,
Low oil pressure alert system shuts down the engine automatically.
AVR(Automatic Voltage Regulator)delivers non-fluctuating power.
Low fuel consumption
Low noise
Frequency: 50Hz/60Hz
Rated Output(kw): 5KW/5.2KW
Max Output(kw): 5.2KW/5.5KW
Power Factor(cosφ ): 1
Excitation mode: Self-Excitation and constant voltage(AVR)
Rated Voltage(V): 110 120 220 230 240 110/220 120/240
Fuel Tank Capacity(L): 14
Continuous Runing Time(h): 7
Engine Type: Single Cylinder. 4-Stroke. Direct Injection Air-Cooled
Engine Type: DE186FA
Displacement(CC): 418
Starting System: Electric
Packing Size(L*W*H)(mm): 935*535*725
N. W/G. W(kg): 171/176
Qty/20"(Sets): 72
|
MODEL |
SDG3500AS
SDG3500BS
SDG3500HS |
SDG5000AS
SDG5000BS
SDG5000HS |
|
Frequency |
50 |
60 |
50 |
60 |
|
Rated Output(kw) |
2.8 |
3.0 |
5 |
5.2 |
|
Max Output(kw) |
3.0 |
3.3 |
5.2 |
5.3 |
|
Power Factor(cosφ ) |
1.0 |
|
Excitation mode |
Self-Excitation and constant voltage(AVR) |
|
Rated Voltage(V) |
110 120 220 230 240 110/220 120/240 |
|
Fuel Tank Capacity(L) |
14 |
|
Continuous Runing Time(h) |
10 |
7 |
|
Engine Type |
Single Cylinder. 4-Stroke. Direct Injection Air-Cooled |
|
Engine Type |
DE178FA |
DE186FA |
|
Displacement(cc) |
305 |
418 |
|
Starting Sysem |
Electric |
|
Packing Size(L*W*H)(mm) |
860*535*725 |
935*535*725 |
|
N. W/G. W(kg) |
135/140 |
171/176 |
|
Qty/20" (Sets) |
78 |
72 |
Belyton power Ltd. is a manufactuer, which professionally produces a series of gasoline and diesel generators and water pump and gas and LPG generator.
Our water-cooled diesel generator from 10kw to 800kw has 20years experience.
The head office is located in Fuan (Electric Motor and Appliance Area) - the economic center in the east of Fujian Province of China.
The products are well received in more than one hundred countries and regions, such as the Middle East, Africa, Southeast Asia, Europe and South America.
We guaranteed products at a competitive price and high quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit. Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon.
