| Prod Model: |
DWG6700SE |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Powe: |
5kw |
| Rated Voltage: |
110,120,220,230,240,110/220,120/240 |
| Rated Current: |
23A |
| Welding Voltage @ No-Load DC (V): |
63-85 |
| Welding Operating Voltage DC (V): |
20-30 |
| Rated Welding Current DC (a): |
180 |
| Insulation Class: |
F |
| Engine: |
De186fae |
| Engine Type: |
Single-Cylinder,Air-Cooled,4-Stroke,Direct Injecti |
| Structure Type: |
Silent or Open |
| Cooling Method: |
Air Cooled |
| Stroke: |
Four Stroke |
| Installation Method: |
Portable |
| Type: |
Basic Diesel Generator |
| Output Type: |
DC |
Product Description

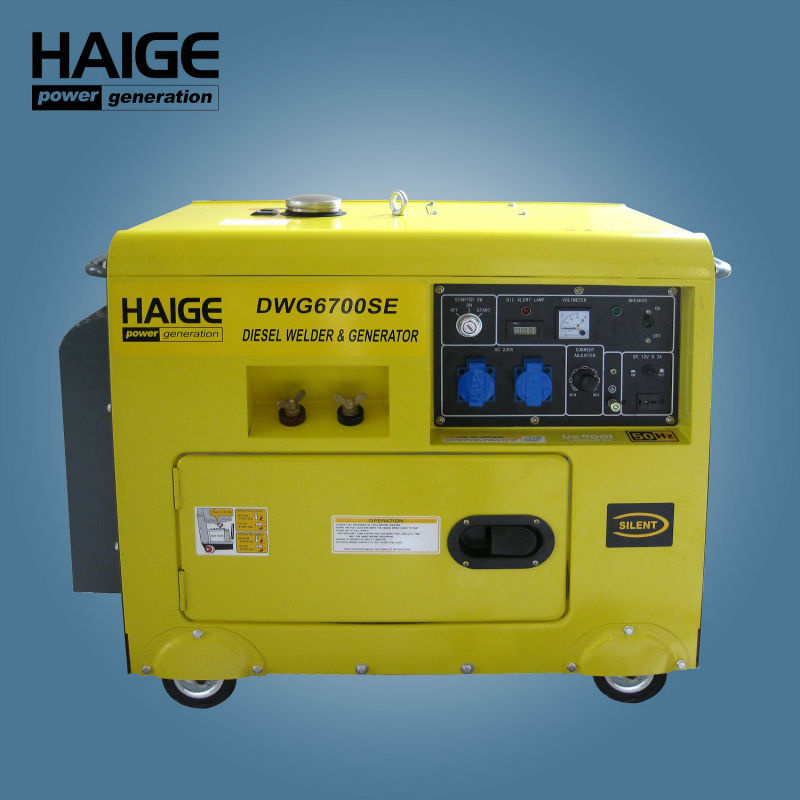

5kw silent diesel generator welder
-Low fuel consumption
-diesel welder equipment
-Noise Level @ 7m dB(A): 70A
Characteristics:
1. A dual-use machine with excellent performance allows the customers low cost.
2. With the features of easy are striking with steady electric, and convenient adjustment of welding current (adjusting extension: 50-200A), the machine is suitable for the 2.0-4.0mm diameter electrodes, which allows easy operation.
|
Gen-set Model |
DWG6700SE |
|
Alternator |
Alternator Model |
THF-D190-5 |
|
Alternator Type |
Brush with Automatic Voltage Regulator, Self-Excitation, 2-pole, Single phase, Synchronous alternator |
|
Frequency (Hz) |
50 |
60 |
|
Rectifying Model |
IGBT + Three-phase rectifying bridge (PWM) |
|
Insulation Class |
F |
|
Generating |
Max. AC output (KVA) |
5.0 |
5.5 |
|
Cont. AC output (KVA) |
4.5 |
5.0 |
|
Voltage (V) |
110,120,220,230,240,110/220,120/240 |
|
DC output (V/A) |
12/8.3 |
|
DC Welding |
Welding Voltage @ No-load DC (V) |
63-85 |
|
Welding Operating Voltage DC (V) |
20-30 |
|
Rated Welding Current DC (A) |
180 |
|
Welding Current Adjustment Rang (A) |
50-200 |
|
Electrodes Diameter φ(mm) |
2.0-4.0 |
|
Welding Load Continuous Ratio |
60% |
|
Electrical Performance |
Continous Working |
S1 |
|
Power Output of Generating When Welder Is Working (KVA) |
0.5-1.8 |
|
Generator Unload Voltage Wave Rate When Welding-current Is Maximum |
2.7% |
|
Generator Load Voltage Wave Rate When Welder Working |
2.2% |
|
Engine |
Engine Model |
DE186FAG3(E) |
|
Engine Type |
Single-cylinder, 4-stroke, air-cooled diesel engine |
|
Combustion System |
Direct injection |
|
Bore x Stroke (mm) |
86 x 72 |
|
Displacement (cc) |
418 |
|
Engine Speed (rpm) |
3000 |
3600 |
|
Starting System |
Electric start |
|
Lubrication Oil Volume (L) |
1.65 |
|
Fuel Type |
0# (Summer), -10#,-20# (Winter) diesel oil |
|
Lubrication Oil Type |
SAE 10W/30 |
|
Low Oil Pressure Alarm System |
CL(E): Without / CX(E): With |
|
Lubrication System |
Forced lubrication via trochoids pump |
|
Cooling System |
Forced-air cooling |
|
Gen-set |
Structure Type |
Closed, Silent |
|
Output Socket |
Single-phase socket,
wiring terminal |
|
Fuel Tank Capacity (L) |
16 |
|
Operational capacity (hr) |
7.3 |
6.2 |
|
Noise Level @ 7m dB(A) |
70 |
|
Net Weight (kg) |
185 |
|
DIM (L x M x H) (mm) |
960 x 580 x 760
|
