South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe
Portable:
5kw
Cooling Method:
Air Cooled
Stroke:
Four Stroke
Installation Method:
Portable
Type:
Basic Diesel Generator
Output Type:
AC Single Phase
Product Description

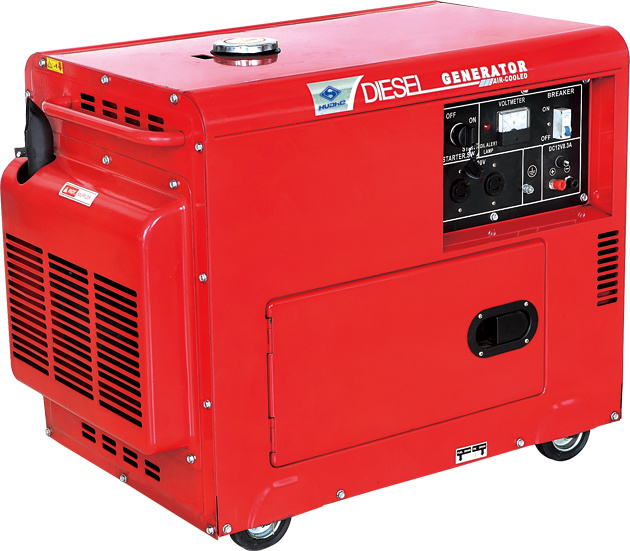

5GF-B01 Silent Type Diesel Generator (5kw)
Competitive price super silent diesel generators Good quality diesel generators Silent generators With CE, SONCAP, ISO9001: 2000 certificate.

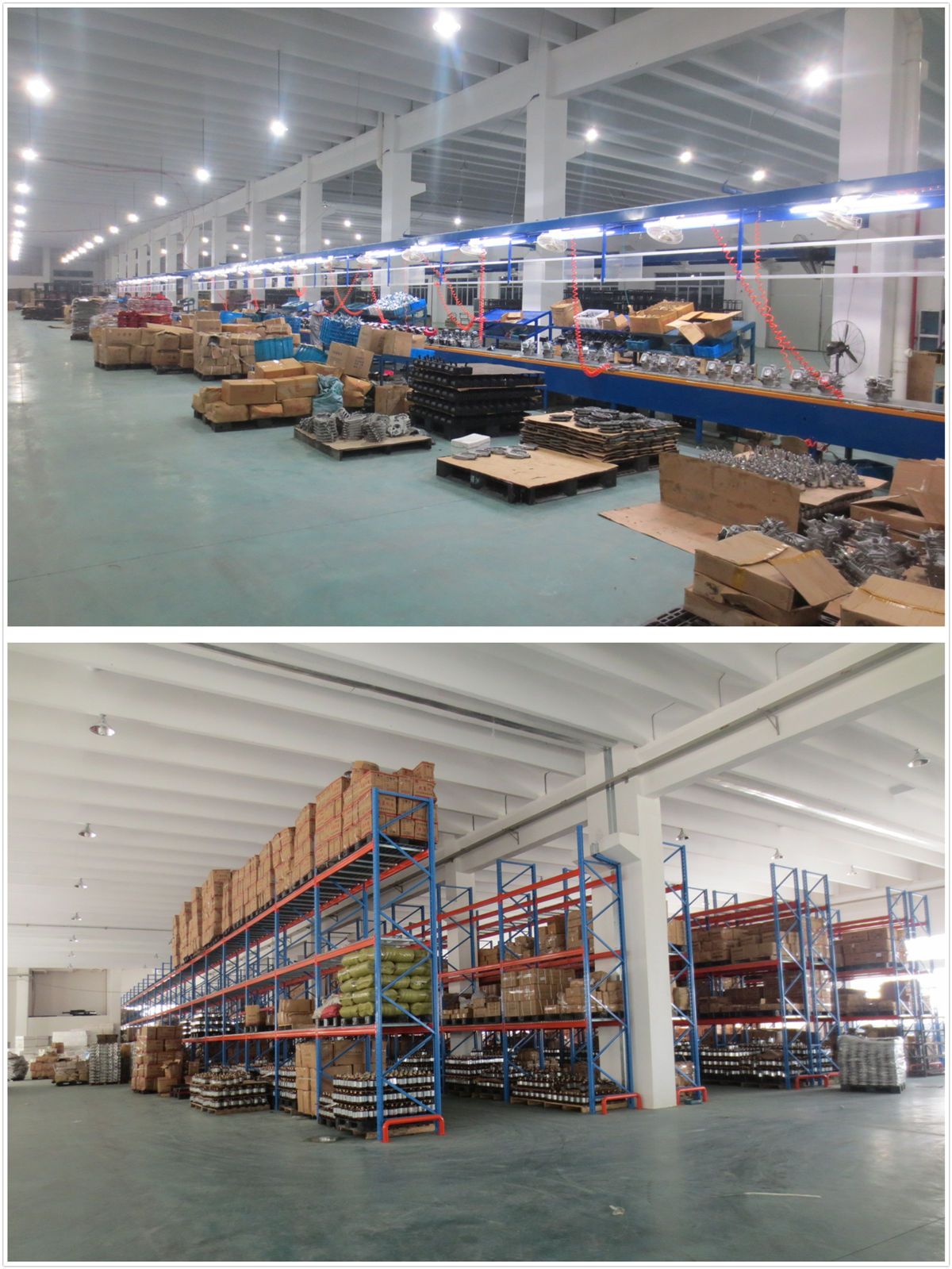

Details Of Generator Factory View
5GF
Generator
Rated Frequency (Hz)
50
60
Rated power (Kw)
4.5
5
Max. Power(KW)
5
5.5
Rated Voltage (V)
120,220,230,240,110/220,120/240
DC Output
12V/8.3A
Phase Number
Single
Excitation Mode
Self-excitation and constant voltage
Power Factor (cos)
1
Engine
Engine Model
186FA
Bore Stroke(mm)
86*72
Displacement (cc)
418
Rated Speed (R/Min)
3000
3600
Fuel Consumption(G/KW.H)
360
Fuel Tank Capacity (L/US.Gal)
15/3.96
Continuous Running Time (HR)
8
Unit
Starting system
Electric start
Noise Level(dBA/7m)
72
Net weight (kg/lbs)
165/363.8
Dimension(L*W*H) (mm)/(inch)
950*580*740
Huahe Heavy Industries Co., Ltd.lies in the land scape shore of east see of China----jinqing town luqiao dstrict taizhou city, it is a key base in producting electrical generator in China presently. The company was founded in 1990, managerial philosophy of company is that"take person with ability as basement, develop and try to be practical, quality first, service intensive"and the spirt of onterpriseis that"hold together and innovation, keep on aggressiveness, pursue superiority", it will make the company to explode constantly and is has passed ISO9001: 2000 quality system ceritfcation, CE.
Company has possessed 600 employess, over 68manag. Ement personnel and 22 technicians since is was founded. Inwhich junior college graduatre account for 90%, average ages of employees is 28 years, area of factory building is 20000sq. Meter annusi value of production is 80 milions yuan and have three modemization production line and advanced equipment and perfct monitor and measunng device as puncher, driller, lathe, measurig truck, cutter, shielded welder and pipe bendin machine. Main production of company are all kinds of generators, both petrol and dlesel series, water umps, luggage rack of vehicle, bumper, fuel tankall kinds of motorcycle rack, Auto Majhong Machine and WHD series of dlecmolishde vehide, wide varieties, a complete range of specification. The products have stable qusity and advanced.
Technology and sell well in Japan, America, Euripe, Southeast Asia etccountries and regions. President Mr. Shi HePing heads all staff members of company to welcome you warmly to visit and call for inquiry. Let us join hands to initiate right future together.
