| Prod Model: |
CW-600GFL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Chargewe |
| Engine Brand: |
Jichai |
| Engine Model: |
12V190zlt |
| Phase: |
3p4w |
| Rated Frequency: |
50Hz |
| Cylinder No.: |
12 |
| Cylinder Diameter: |
190mm |
| Stroke: |
210mm |
| Rated Speed: |
1000r/Min |
| Rated Current: |
1020A |
| Gas Source: |
Gas |
Product Description

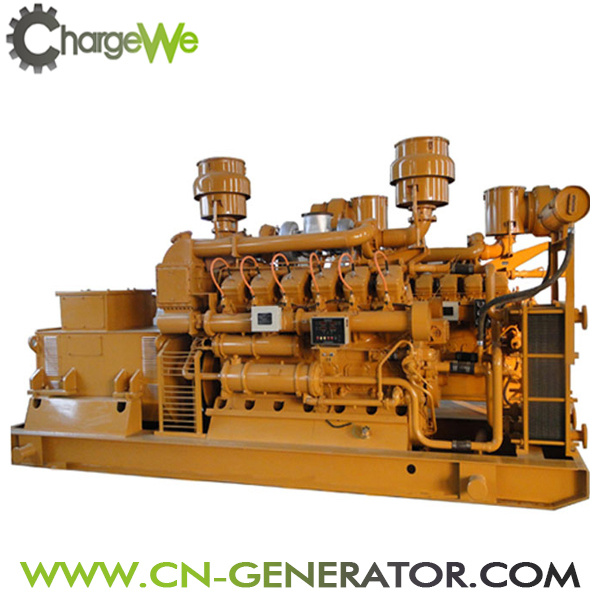

600kw Power Plant Coal Gas Gensets Gas Generator:
I.Products introduction:
Requirements of generator set to the coal bed gas:
Within 1m to the intake value of gas generator set
1,temperature≤40ºC
2,Pressure 3~20kpa,pressure changing rate≤1kpa/min
3,H2S≤200mg/Nm³;
4,If the CH4 covers less than 30%, the sum content of CH4 and O2 should not less than 28%,
the content of O2 should not less than 16%
5,Moisture content≤40mg/Nm³
6,Impurity Particle size≤5um,impurity content≤30mg/Nm³
If there are too much sulfur and ammonia in the gas, it will not only corrode the electrode of
sparking plug heavily but also increase the acid value of engine oil which will corrode the parts
inside of genset, easy to generate precipitate and increase the attrition corrosion to the engine.
II.Our products:
Applicable fuel for 190 Series Methane Biogas Power Generator has a wide
range of methane based gases (natural /PNG/LNG/CNG, oil field gas, biogas,
landfill gas, Methane Gss, marsh gas, coal mine methane gas and shale gas etc.).
III.Our advantages:
1.High quality
2.Stable stock
3.Competitive price
4.Technologist
Technical parameters of Coke oven gas /Coal gas /Semi-coke gas genset:
| Genset mode | CW-300GFL | CW-400GFL | CW-500GFL | CW-600GFL |
| Engine No. | 6190ZLDT-2 | 12V190DT-2 | 12V190ZLDT-2 | 12V190ZLT |
| Gas mix type | outside | outside | outside | outside |
| Rated power | 300kw | 400kw | 500kw | 600kw |
| Continuous power | 240KW | 320kw | 400kw | 500kw |
| Rated voltage | 400v/230v | 400v/230v | 400v/230v | 400v/230v |
| Phase | 3phase4wire | 3phase4wire | 3phase4wire | 3phase4wire |
| Rated frequency | 50Hz | 50Hz | 50Hz | 50Hz |
| Rated rotation | 1000r/min | 1000r/min | 1000r/min | 1000r/min |
| Rated power factor | 0.8 | 0.8 | 0.8 | 0.8 |
| Rated current | 540A | 720A | 902A | 1020A |
Frequency transient
regulating rate | ≤0.5% | ≤0.5% | ≤0.5% | ≤0.5% |
Voltage regulating
range | 95-105% | 95-105% | 95-105% | 95-105% |
| Heat consumption | ≤11.5mj/kw.h | ≤11.5mj/kw.h | ≤11.5mj/kw.h | ≤11.5mj/kw.h |
Lubricant oil
consumption | ≤1.5g/kw.h | ≤1.5g/kw.h | ≤1.5g/kw.h | ≤1.5g/kw.h |
| Gas pressure | 80-200kpa | 80-200kpa | 80-200kpa | 80-200kpa |
| Cylinder number | 6 | 12-V | 12-V | 12-V |
| Cylinder diameter | 190mm | 190mm | 190mm | 190mm |
| Stroke | 210mm | 210mm | 210mm | 210mm |
| Compression ratio | 8:1 | 9:1 | 8:1 | 8:1 |
| Starting mode | 24V electric motor | 24V electric motor | 24V electric motor | 24V electric motor |
| Overhaul time | ≥25000 | ≥25000 | ≥25000 | ≥25000 |
| Noise | ≤105 | ≤105 | ≤105 | ≤105 |
| Intake mode | Supercharging ,
inter cooling | Natural intake | Supercharging,
inter cooling | Supercharging,
inter cooling |
| Ignition mode | Plug ignition | Plug ignition | Plug ignition | Plug ignition |
Pressure regulation
mode | automatic | automatic | automatic | automatic |
Speed regulation
mode | Electric speed
regulation | Electric speed
regulation | Electric speed
regulation | Electric speed
regulation |
| Lubrication mode | Pressure and splash | Pressure and splash | Pressure and splash | Pressure and splash |
| Cooling mode | Closed/open cooled | Closed/open cooled | Closed/open cooled | Closed/open cooled |
| Exhaust temperature | ≤650ºC | ≤650ºC | ≤650ºC | ≤650ºC |
| Displacement | 35.7L | 71.45L | 71.45L | 71.45L |
| Genset size | 6000×1970×2235 | 6000×1970×2235 | 6000×1970×2735 | 6000×1970×2735 |
