Model No.:
Wkv-600
Export Markets:
Global
Blades Material:
Aluminum Alloy
Start-up Wind Speed:
1m/S
Generator Type:
AC, 3 Phases
Controller Output Voltage:
24\48V
Controller Braking System:
3-Phase Short Circuit by NFB Brake
Ambient Temperature:
-30~50 °c
Survival Wind Speed:
65m/S
Rated Wind Speed:
12m/S
Number Of Blade:
Three Blade
Rotating Shaft:
Vertical
Stress Way Of Blade:
Resistance
Power:
600W
Phase:
3
Product Description
Product Description
Vertical axis wind turbine
Lowest cut-in wind speed 1 m/s for power production
No noise, no vibrations (sound level< 25 dB at 7 m/s from 10 m distance)
Adaptable for hybrid solutions with solar and other sources of energy
Permanent power supply from wind/solar and continuous battery charging
Technically advanced Maglev generator No mechanical friction
Best price-performance ratio All weather resistant (rain, ice, heat, salt, sand)
Independent of wind direction
Suitable for roof fixation
Maintenance-free
Safety for people and nature

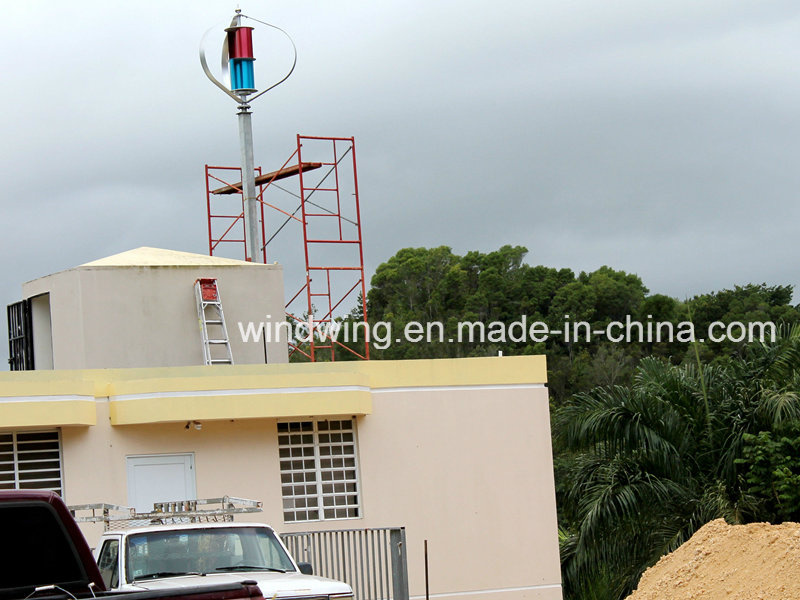

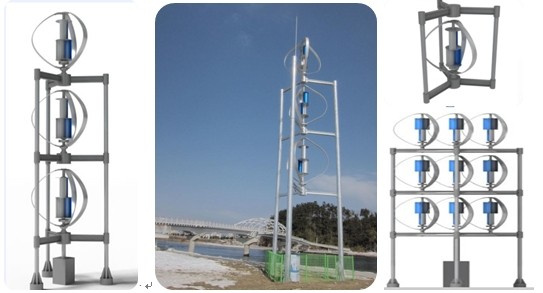

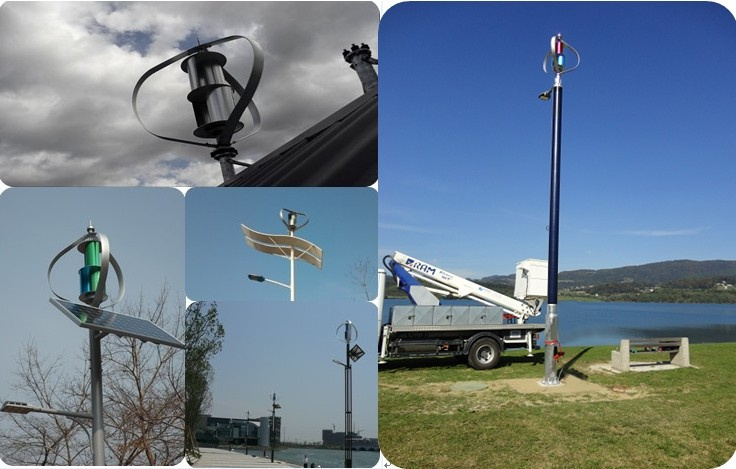

Project
Thanks for your visiting
PARAMETER
VERTICAL WIND TURBINE MODEL NUMBER
WKV- 600
Rated Power
600w
Size(Height / Diameter)
1.32/1.32(m)
Blades Material
aluminum alloy
Start-up Wind Speed
1m/s
Minimum Power Generation Wind Speed
2m/s
Cut-in wind speed
2.5 m/s
Rated Wind Speed
1 2 m/s
Cut out Wind Speed
15m/s
Survival Wind Speed
6 5 m/s
Generator Type
AC, 3 phases
Controller Output Voltage
24\48V
Controller Braking System
3-Phase short circuit by NFB brake
Ambient Temperature
. -30 ~ 50 °C
