Model No.:
Wkv-600
Export Markets:
Global
Rated Power:
600W
Blades Material:
Aluminum Alloy
Generator Type:
AC, 3 Phases
Controller Output Voltage:
24/48V
Controller Braking System:
3-Phase Short Circuit by NFB Brake
Ambient Temperature:
. -30~50 °c
Size(Height / Diameter):
1.32/1.32m
Start Up Wind Speed:
1m/S
Number Of Blade:
Multiple-Blade
Rotating Shaft:
Vertical
Stress Way Of Blade:
Resistance
Product Description

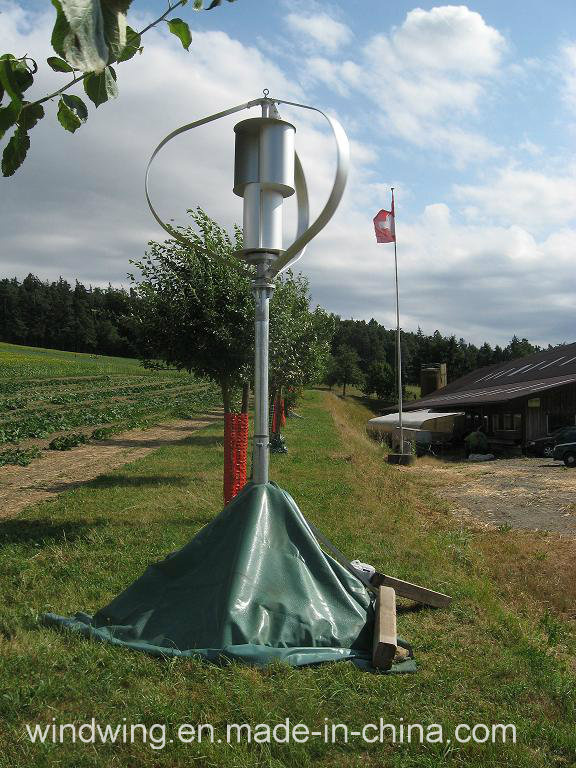

Vertical axis wind turbine
Lowest cut-in wind speed 1 m/s for power production
No noise, no vibrations (sound level< 25 dB at 7 m/s from 10 m distance)
Adaptable for hybrid solutions with solar and other sources of energy
Permanent power supply from wind/solarand continuous battery charging
Technically advanced Maglev generator No mechanical friction
Best price-performance ratio All weather resistant (rain, ice, heat, salt, sand)
Independent of wind direction
Suitable for roof fixation
Maintenance-free
Useage
· Household, Garden, farm eolic vertical wind turbine generator, Off grid and on grid power system · Telecom sites. · Rural electrification programs. Island, sentry, island, sight lighting · Make wind -solar hybrid power system
Our Service
1. Reply inquiry in 24 hours. 2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP. 3. Answer your question detailed 4. Solved the problem with you during using our products
Safety for people and nature More Model
Model No.
Output Power(W)
WKV-200
200W
WKV-300
300W
WKV-400
400W
WKV-600
600W
WKV-1000
1KW
WKV-2000
2KW
WKV-3000
3KW
WKV-6000
5KW
PARAMETER
VERTICAL WIND TURBINE MODEL NUMBER
WKV-600W
Rated Power
600w
Size(Height / Diameter)
1.32/1.32(m)
Blades Material
aluminum alloy
Start-up Wind Speed
1m/s
Minimum Power Generation Wind Speed
2m/s
Cut-in wind speed
2.5m/s
Rated Wind Speed
12m/s
Cut out Wind Speed
15m/s
Survival Wind Speed
65m/s
Generator Type
AC, 3 phases
Controller Output Voltage
24\48V
Controller Braking System
3-Phase short circuit by NFB brake
Ambient Temperature
. -30~50 °C
