South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Dimension:
2540*980*1670mm
Controller:
Smartgen
Insulation Grade:
H
Protection Grade:
IP21-23
Start System:
Electric Start
Alternator:
Leateck/Stamford
Type:
Micro-Computer Control Automatic Diesel Generator
Installation Method:
Fixed
Stroke:
Four Stroke
Cooling Method:
Water Cooling
Output Type:
AC Three Phase
Product Description

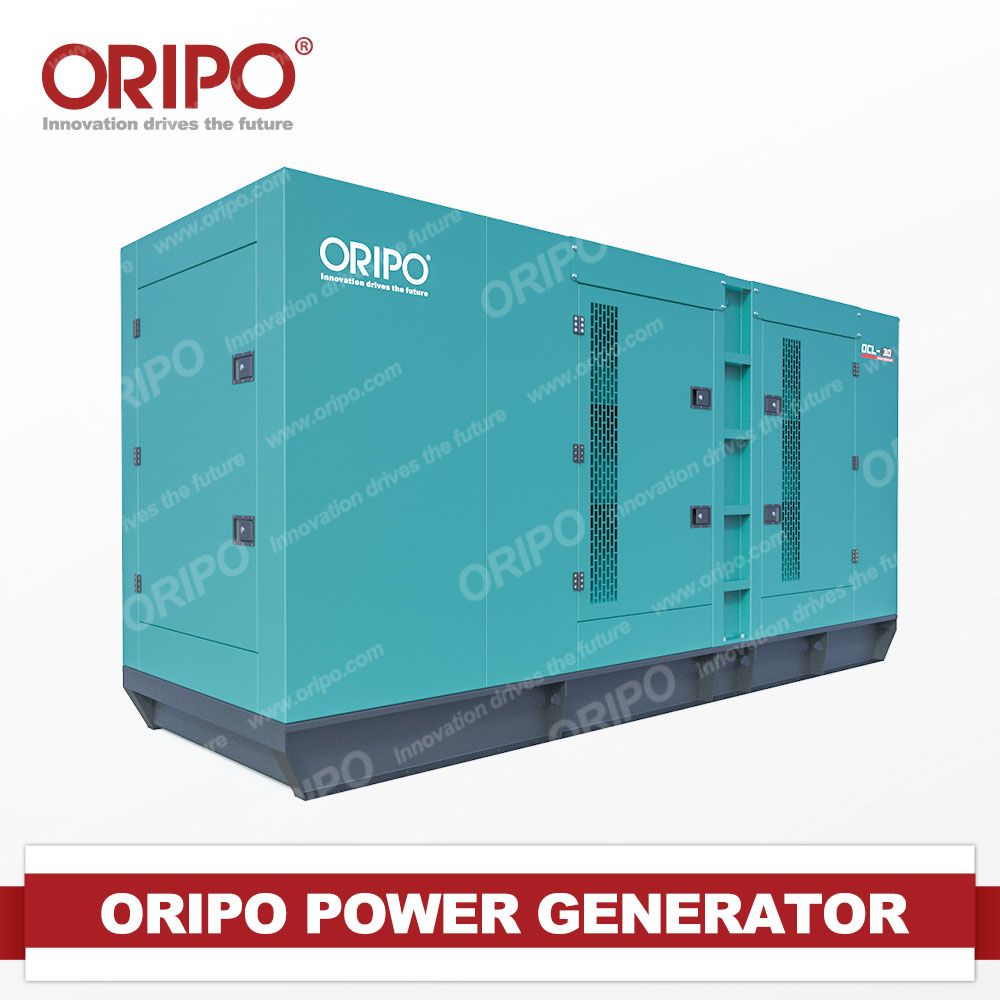

Product Description-200KW Silent,soundproof genset with cummins engine
1.Powered by Cummins Engine 2. With Stamford / Leateck Alternator 3. With CHINT / ABB MCCB & Electronic Components 4. Electric Start with Battery 5. Base Integrated Fuel Tank 6. ATS, Deepsea / ComAp / Smartgen Controller 7. Comply with CE 8. After-sale Services
Model No.
STANDBY POWER
PRIME POWER
ENGINE
ALTERNATOR
CONTROLLER
KVA
KW
KVA
KW
OCL60-265
265
212
245
196
6LTAA8.9-G2
LTG274K1
6110
254/440VAC,60Hz,0.8PF (lag),Three phase four wires
Governor Class
ISO8528 G3
Potential Drop
1%
Steady Voltage Regulation
1%
Frequency Drop
Synchronous(0%)
Steady-state Frequency
0.25%
R.R.I.Suppression
BS EN 61000-6-4 / BS EN 61000-6-2
Fuel Consumption Rate ,g/kw.h(L/hr)
210( 53.72)
Starting Battery Capacity ,A/hrhhr
200*2
Total Coolant Capacity ,L
41
Fuel Capacity (base tank),L
N/A
Model
6LTAA8.9-G2
Type
In-line 6 Cylinder,4 Cycle
Displacement ,L
8.9
Compression Ration
16.0:1
Aspiration
Turbo, Air / Air Cooling
Fuel System
P7100 Type Fuel Pump,EFC Electronic Governor
Bore*Stroke(mm)
114*145
Rated Speed ,rpm
1800
Governor Type
Electronic
Starting Voltage
24V ,Negative ground
Battery Charging System
24V 35A
Lubricant Capacity ,L
27.6
Coolant Capacity, L
41
Protection Class
IP21
Insulation Class
Class H
Temperature Rise in Standard
125ºC(When Ambient Temp.is 40 ºC)
Excitation Type
Brushless & Self-excited
Waveform Distortion
No load<1.5% Non-Distorting balanced linear load<5%
Telephone Interference(TIF)
<50
Telephone Interference(THF)
<2%
Our Advantages
Short time delivery within 15-20 days. 8 hours strict continuous testing before delivery OEM manufacturer of Cummins Company Sinopec Group's designated Generator manufacturer 17 years of experience in production generators According to customer demand for customized processing
Our Services
Guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, ORIPO POWER will provide the free easy-damageable spare parts of alternator caused by our quality of production or raw material. After expiration, ORIPO POWER provides cost spare parts maintenance of alternator. ORIPO - Power supply best after-sales service.
Payment term
1, TT(30% advance,the balance is paid before dispatch) 2, L/C(100% irrevocable L/C at sight.)
Delivery time
Within 15-20 days after receiving T/T 30% advance or L/C at sight.
Oripo Established in 1998, Oripo Power Engineering Co., Ltd is professional leading manufacturer, suppliers, exporter and authorized dealers of diesel gensets. With over 20, 000 square meters and a staff nearly 200, the headqauter is loacted in Foshan city, adjacent to Guangzhou which is the trade center of Guandong province. We offering power genset, industrial genset, silent genset, weather proof genset, Cummins genset, Perkins genset, Yuchai genset, Shanghai Dongfeng genset, Deutz genset, Weichai electric genset, China domestic genset, silent diesel generator, portable power generator, trailer diesel generator and electric power generator.
Currently, Oripo cooperated with multinational companies formed a strategic partnership. Import CUMMINS, PERKINS series generator sets, and purchase engine from with Cummins, SDEC, Yuchai, LOVOL, Deutz, alternater with STAMFORD, MARATHON, LEADTECH and other international or domestic famous brand. Establish a long-term friendly cooperation relations with the branded engine and alternator company, authorized to be the OEM partner, In 2009, Oripoe authorized by Cummins, Shanghai Dongfeng and Yuchai to provide OEM service. As professional qualified manufacturer provide OEM genset, spare parts, after sale service, in order to better serve customers and laid a solid foundation.
During the last ten odd years, Oripo has been dedicated to pursuing professional production, thus prevailing in the market with its superior quality, cutting-edge technology and tailor-made services. Moreover, with an endeavor to expand our business operations, we adhere to ethical business practices, transparent business dealings and work to attain the confidence and trust of our clients.
