| Prod Model: |
R-YM60ZD |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Frequency: |
50Hz |
| Voltage: |
380-415V |
| Cooling Method: |
Water Cooling |
| Stroke: |
Four Stroke |
| Installation Method: |
Fixed |
| Type: |
Self-Starting Diesel Generator |
| Output Type: |
AC Three Phase |
Product Description
Specification for Denyo type 60kVA Yanmar diesel generator sets:
1.50Hz 1500rpm Rated power: 60kVA /48KW
Note: 60Hz 1800rpm is also available
2. YANMAR engine imported from Japan & stamford Diesel generator
3. Brand: Ruichang Gold
4. Engine: YANMAR engine 4TNV106T-GGE imported from Japan
5. Alternator: Stamford UCI 224E Made by Cummins
6. Ruichang Gold Free Standing Control Cubicle
7. Standard Configuration:
1) Engine and Alternator SAE Coupling
2) Heavy Duty Base Plate with 8 hours fuel Tank
3) Ruichang Gold Control Box with ComAp NT MRS 16 Control Module
4) China Named Brand Lead Acid Battery, Optional Maintenance Battery
5) Optional Block Heater for Cold Area
6) Set Mounted 50 degree Copper Radiator
7) Delixi High Quality Air breaker

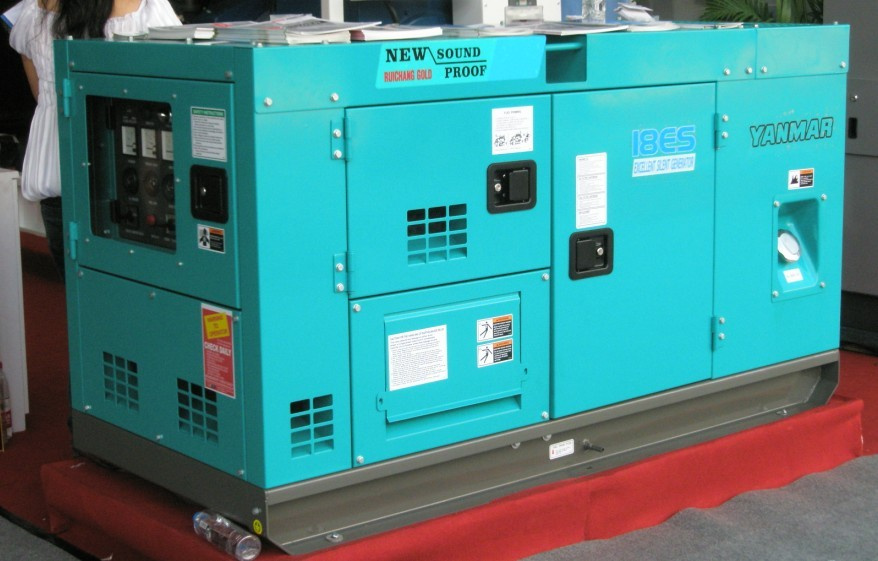

8) OPTIONAL Soundproof Canopy
9) Accessories: Flexible Exhausted Pipe, Industrial Silencer, Manual, Drawings
Packing: Ruichang Gold Wooden Packing
Delivery: 10 Days (Engine Stock )
10) Payment: 30%T/T and 70%L/C in Sight
11) More specificication pls contact ruichang gold international sales department
|
MODEL |
R-YM60 |
|
PRIME POWER (KVA/KW) |
60/48 |
|
STANDBY POWER(KVA/KW) |
66/52.8 |
|
Rated voltage(V) |
400/230 |
|
Rated speed(rpm) |
1500 |
|
Rated frequency(Hz) |
50 |
|
Power factor |
0.8 |
|
Ambient temperature(ºC) |
40 |
|
Altitude(m) |
1000 |
|
Connection type |
3 phase 4 wires |
|
ENGINE MANUFACTURER |
JAPAN YANMAR |
|
Model |
4TNV106T-GGE |
|
Rated Power(kW) |
56 |
|
No. of cylinders & configuration |
In-Line 4 cylinders |
|
Method of operation |
4-stroke |
|
Speed regulation |
Electric governor |
|
Starting system |
DC 12V Electronic start |
|
Cooling method |
Closed-circuit cooling system |
|
Total displacement(L) |
4.412 |
|
Compression ratio |
18.0:1 |
|
Bore×Stroke(mm) |
106*125 |
|
100% Load fuel consumption(L/h) |
≤11 |
|
ALTERNATOR MANUFACTURER |
STAMFORD |
|
Number of Phase |
3 |
|
Connection Type |
3Phase and 4Wires |
|
Number of Bearing |
1 |
|
Power Factor |
0.8 |
|
Protection Grade |
IP23 |
|
Terminal |
12 |
|
Winding/ Pitch |
100% Copper 2/3 Pitch |
|
Cooling Fan |
Cast alloy aluminum |
|
Exciter Type |
Brushless, Self-Exciting |
|
Insulation Class, Temperature Rise |
H/H |
|
Telephone Influence Factor( TIF) |
TIF <50 / THF<2% |
|
Total Harmonic TGH/THC |
<1.5% at no load / <5% at load |
|
Voltage Regulation, Steady State |
≤±1% |
|
Sustained Short-Circuit Current |
300%(3 in):10s |
|
CONTROL SYSTEM |
UK DEEP SEA SERIES |
