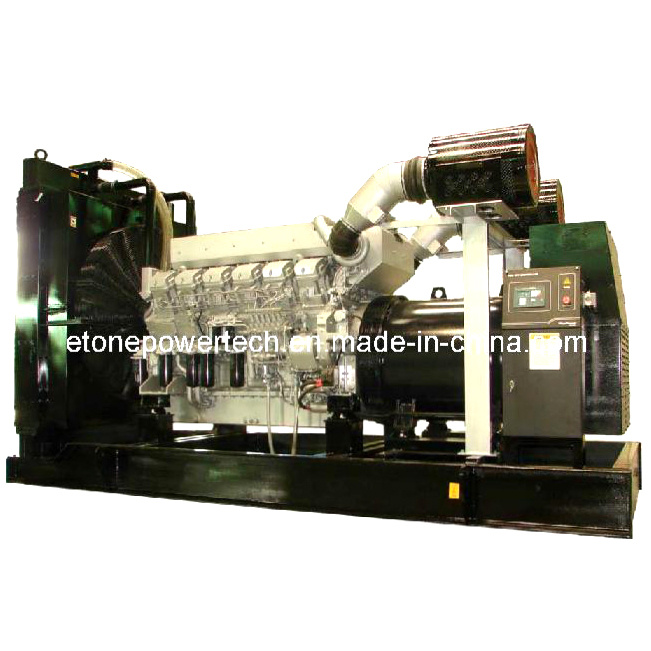

685-2200kVA Mitsubishi Diesel Generator Set (ETMG1500)

Prod Model:	ETMG1500
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	685-2200kVA
Outward:	Open, Silent, Box, Container, Portable
Output Type:	AC Three Phase
Cooling Method:	Water Cooling
Stroke:	Four Stroke
Installation Method:	Fixed
Type:	Self-Starting Diesel Generator

Product Description

Mitsubishi Diesel Generator Set:
Model: ETMG1500
Engine Model: S12R-PTA2
Prime Power: 1100KW/1375kVA
Standby Power: 1200KW/1500kVA

Genset Features:
1. World-class quality
2. Economical cost, high reliability and durability
3. Small in size and light weight
4. Low noise and stable performance
5. Profesional configuration and premium quality
6. Worldwide reputation and global renown.

Engine Features:
1. Highly volumetric efficiency and combustion efficiency, take use of mobile combustion and fuel injection etc., the combustion chamber is filled up with air evenly which can be burned fully!
2. Advanced electronic fuel injection system to ensure the low fuel consumption, low vibration and noise, high durability of belt.
3. Excellent emission performance, use hot-wire oxygen sensor, exhaust recirculation system, fuel and vapor recycling system, crankcase forced ventilation devices, unique test of air flow etc related technologies.

Alternator features:
(Optional: Stamford, Leroy-somer, Etone, Marathon, etc. )
1. Brush-less, 4 poles, rotation magnet
2. IP21-23 (NEMA1) enclosure is standard for all industrial alternators
3. The insulation system is class H
4. Simple installation and maintenance, with easy access to terminals, rotating diodes and coupling bolts
5. Wide range of flange adaptors and single bearing disc coupling
6. Standard 2/3 pitch windings avoid excessive neutral currents

Control System
Manual/Automatic start & stop controller
Various Monitor Meter and Optional Switch
Remote control interface and Remote monitor/Remote Sense/Remote Meter (Optional)
MCCB for Short circuit & Overload (optional)
High water temperature alarm, Low oil pressure alarm, over speed alarm and other kind of alarm

Warranty:
1. Since gen-set reached the agreed destination, its main parts will be guaranteed within 12 months or 1000 hours. (Subject to the earlier mature term).
2. We take charge of all troubles caused by gen-set's fault and repair according to the regulation stipulated by original plants.
3. Factors not accordance with the regulation of original plants such as fragile parts, daily consumed components, wrong operating, lack of maintenance are not include in the quality guarantee.
