North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Waranty Time:
1 Year Since The B/L Date
Certificate:
ISO9001: 2008
Color:
as Per Request
Delivery Time:
About 10 Days
Stroke:
Four Stroke
Type:
Basic Diesel Generator
Cooling Method:
Water Cooling
Installation Method:
Fixed
Output Type:
AC Three Phase
Excitation Mode:
Brushless
Speed:
1500rpm
Landuse Type Of Unit:
Open Type or Silent Type
Product Description

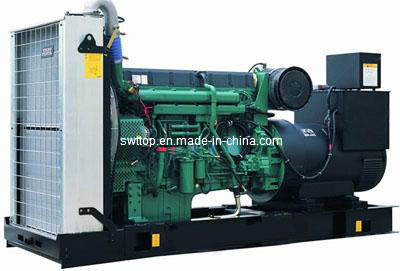

700kva volvo diesel generator set 1: Lower maintanence and use cost 2: Low fuel consumption, Outstanding quality and reasonable prices. 3: ISO certificated products. 4: With base fuel tank 5: Optional parts: Battery, heater, 4 protection functon, ATS system, silent shell, trailer etc.
Technical Data
GROUP
Manufacturer
WEITUO
Model
WTV700GF
Frequency
60HZ
Power
Standby Power
605KW 757KVA
Prime Power
550KW 687KVA
Open type
Dimension(L*W*H)
mm
3220x1440x1930
Weight
Kg
3900
DIESEL ENGINE
Engine Manufacturer
Volvo
Model
TWD1643GE
Cylinder Arrangement
6 in line
Governor/Class
Electronical
Fuel spray pattern
Electric spray
Bore and stroke
144× 165 mm
Compression Ratio
16.5
Displacement
16.12L
Rated RPM
1500rpm
Start-up mode
24V, electric
Battery capacity
180A/hr
Lubrication oil capacity
48L
Total Coolant Capacity
93L
Exhaust gas flow
130.1m3/min
Air intake – engine
53m3/min
Alternator
Manufacturer
Stamford
Model
HCI544E
Rated Voltage
254/440V
Voltage regulation mode
Auto
Exciter Type
Brushless self exciting
Power factor
0.8
Rated current
951A
Insulation class
H
Protection class
IP23
Standards
IEC34-1, NEMA1
Max. altitude
1000m
Shandong Weituo Group Co., Ltd. Were established in the early 1950' s and have more than 60 years of machinery production experience. Our product ranges from diesel engines, gas engine, generator sets, tractors from 17HP-120HP, farming implements and so on. We are also is the sole agent of large power tractor from 350--600HP of Germany DTU brand in Asia area.
We have 7 scientific research centers where our products are designed. In our production centers we use specialized casting, machining, pressing and assembly machines, 12 production lines and more than 1, 000 other units of equipment. This collection helps us to achieve a capacity of 200000 engines, 150000 generator sets and 200, 000 tractors annually.
Our tractors include TS series from 17HP to 28HP, TY series from 18HP to 30HP, greenhouse and gardon series compact tractor from 18HP to 30HP, AOYE series from 35HP to 60HP, SWT series from 70HP to 120HP and all kinds of farm implements. We have more than 60 years of tractor manufacturing history and have rich experiences in manufacturing and exporting. Our tractors are famous for its low price and steady propety and long life.
Our engines include three series which feature more than 300 varieties with power ratings varying from 20 to 660kW. You can select from diesel, gas or other fuel-powered options. We have turbo-charged models, with or without a cooler, altiplano models and models that use European technology. The latter reaches new standards in terms of dynamics, durability, low emissions and economical savings. These engines are used in agricultural equipemnt, generator set, ship, pump, air compressor and construction machinery and so on.
Our generator sets series include internal combustion engines and dynamotors that range from 5 to 1, 000KW. We offer automated units, mobile power stations, gas generator sets and more. The noise level for low-noise gensets can reach 60dB at 1M. Our generators are used in industry, standby power in hospital, malls and hotels, telecom
To fasten the company's development, SWT is building "Tractor Industrial Garden"(which occupies 100, 000 square meters in Weifang Economy and Technical Exploiting District) and "Power Industrial Garden"(which occupies 140, 000 square meters in Weifang Fangzi District). Of which Power Industrial Garden will get moving qualification at the middle of 2009. Tractor Industrial Garden mainly produces big and middle series tractors, TY series tractors and various implements. And Power Industrial Garden mainly produces diesel engine, gas engine, generator sets and power equipment parts, etc.
When the two Industrial Gardens are putting into production, SWT will develop into one of the largest enterprise, integrated with products such as tractors, engines, generator sets, various types of machinery parts and components casting process.
