Perkins Engine:
Silent Diesel Generator
Type:
Basic Diesel Generator
Installation Method:
Portable
Stroke:
Four Stroke
Cooling Method:
Water Cooling
Output Type:
AC Three Phase
Product Description

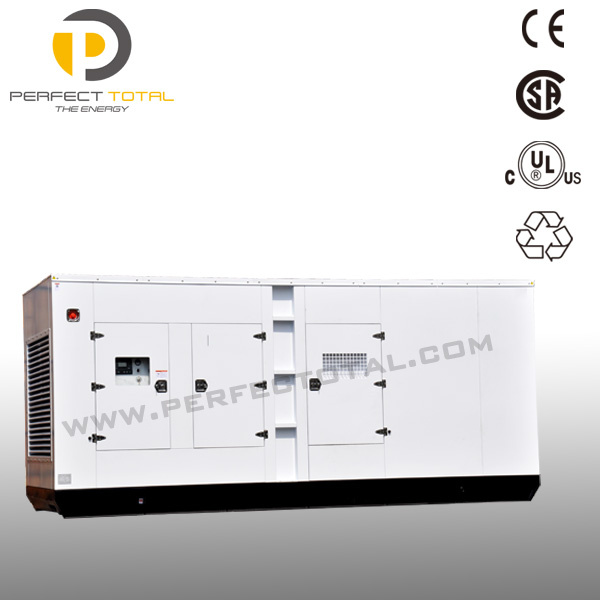

707KW CE certified diesel generator power with PERKINS engine
Quick Details
Place of Origin:Zhejiang, China (Mainland)
Brand Name:PERFECT TOTAL
Model Number:700EPTP
Output Type:AC Three Phase
Speed:1800rpm
Frequency:60hz
Rated Power:707kw
Rated Voltage:220/380v
Rated Current:1600A
Product Name::707KW CE certified diesel generator power with PERKINS engine
Engine brand::PERKINS BRAND 4008TAG1
Alternator Brand::Stamford/ Leory Somer/ MECC
Noisy Level::65dba
Fuel tank Capacity::1400liters
Bottom Forklift::Yes
ATS::OPTION
Frequency::50 hz or 60 hz
Steel::Cold Rolled plate
Controller::COMAP/DEEPSEA
genset Model Soundproof diesel generator set
700EPTP
SET
Rated power(Kw/kva) Prime power
707KW
Frequency(Hz)
60
Phase
3
Voltage(V)
220/380
Current(A)
1600
Fuel capacity(L)
1400
Fuel consumption(L/Hour)
100% Prime power
206
Dimension (mm)
L
6060
W
2440
H
2600
Weight(kg)
12000
Noice level for silent type (Db/7m)
65
ENGINE
Model
4008TAG1 , PERKINS BRAND
Prime power(kw/kva)
707kw
Cylinders
8
Bore×stroke(mm)
160×190
Intake Method
Natural intake
Displacement(L)
30.561
Speed governing
Mechanical governor
Cooling starting method
Water cooling
ALTERNATOR
Model
LVI634C
Rated power(kw/kva)
707/884
Insulation class
H
Alternator enclosure
IP23
THIS SET COULD BE OPERATED ON 100% OF THE POWER CAPACITY AT ALTITUTE OF 1500M, AMBIENT TEMPERATUR OF 50°C. WE RESERVE THE RIGHT TO EXPLAIN THE TERMS OF THIS SPECIFICATION.
HANGZHOU PERFECT TOTAL MACHINERY Co., Ltd. Built at 2014 Year and we have 14 years experience of doing Diesel Generator, Light Tower. We are Specialized in production and sales of diesel generators, super-silent generator, REEFER CONTAINER generator, mobile light tower, plant oil generator, message signs, construction machine, and the development of new products. We have much experience in manufacture and have strong technical strength. All products are of good quality and we are able to offer the efficient service, therefore the products are popular in our clients and enjoy and excellent reputation. We have big market in Dubai, Australia, Canada, USA, Malaysia, ...etc market. Offering OCEA power system equipment and high-quality service to over 200contries. We can do Generator power ranges from 5kVA to2200kVA. According to the functions, we offer common type (standard), automation, trailers, Van, low noise, and other series. We can design and manufacture the special specification and models in accordance with the customers' requirements. We would like to invite reliable partner join us!
