| Price: | US $ 25950/Set |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 1/Set |
| Pay Type: | T/T,Money Gram,Western Union |
| Prod Model: | HD-800 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Host Machine Size: | 900*700*1780mm |
| Weight: | 175kg |
| Electrode: | Titanium |
| Power: | Shipping Level |
| Raw Material: | Salt,Water,Electricity |
| Chlorine Production: | 500g/H |
| Liquid Concentration: | 5000-8000ppm |
| Use: | Swimming Pool,Water Disinfection,SPA,Hospital |
| Guarantee: | Whole Machine for 1 Year |
| Brine Concentration: | 2.5% |
We are
Leader of water treatment in China
"Trusted Enterprise" issued by Government of Fujian Province
"Well-Known Trademark of Fujian"
Director unit of EMCA (Enterprise Manager Configuration Assistant) of Fujian Energy Conservation Association
Member of Environment Protection Association of Fujian Province
We have
Certificate of ISO9001/ISO14001
Labs set up in specialized high-tech zone
More than 6 technical patents
More than 3 branches in China
About us
More than 16years' experience
Chinese government business partner in many water projects
We provide water treatment to Geogia government, Water company in Tashkent, Fuel company in Japan and other countries
sodium hypochlorite disinfectant water treatment plant of china supplier
Product Description

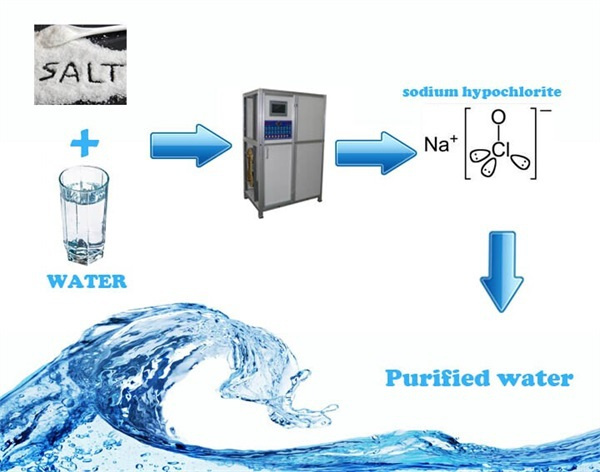

Main reaction process: NaCl(salt)+ H2O(water) = NaClO(sodium hypochlorite) + H2↑ (hydrogen)
Sodium hypochlorite generator is a device to generate sodium hypochlorite solution
Working principle:electrolysis of brine
Raw materials needed: water and salt
Functions: water bleaching, purification and disinfection
The Principle of Sodium Hypochlorite Disinfection
99.99% of NaClO will be hydrolysised into Water and generate HCL and O
Main reaction process:NaClO + H2O = NaOH + HClO(Hypochlorous acid)
HCLO = HCL(Chlorine hydride) + O ( new ecological oxygen)
1. The oxydation of HClO (Hypochlorous acid): The molecule of Hypochlorous acid can penetrate into the bacteria with oxidation reaction and break the balance of glucose metabolism to kill the bacteria
2. O (new oxygen): The protein of virus will be degenerated and led to death by the strong oxidability of O (new oxygen)
3. The Chloridion: can disturb the metabolism and alter the osmotic pressure of bacteria and virus, lead them to death
Application
sodium hypochlorite disinfectant water treatment plant of china supplier

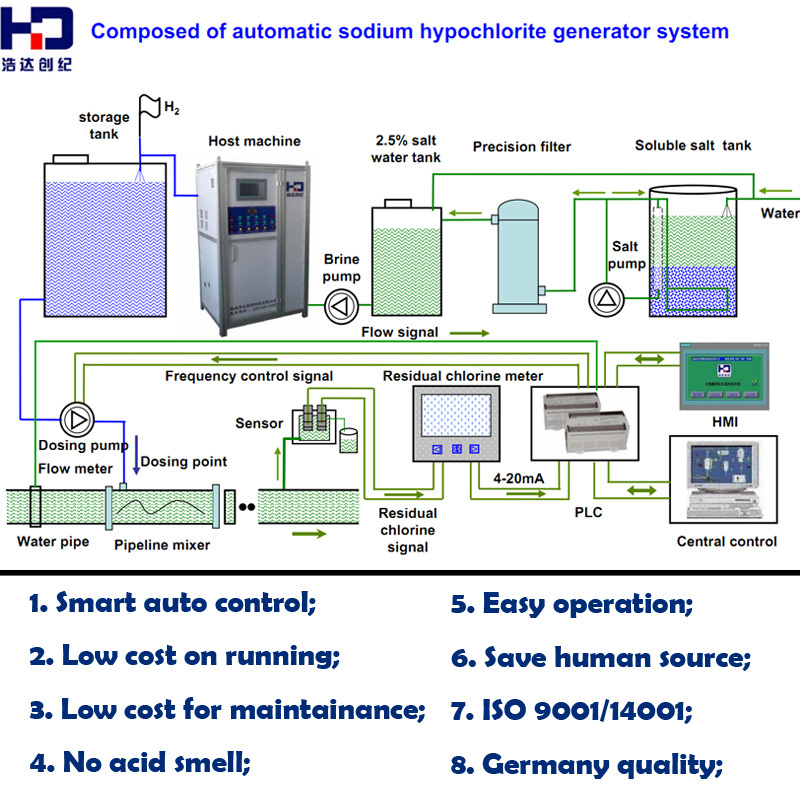

Automatic Sodium Hypochlorite Generator System Flow Chat

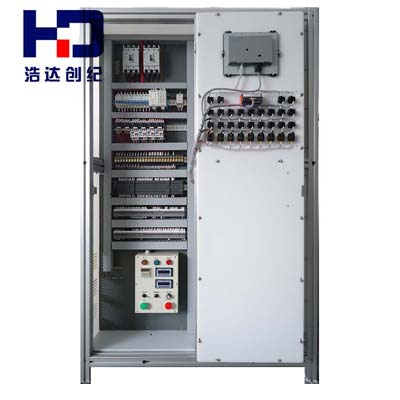

Main components
Electrolytic cell
1.UPVC resistance corrosion pipe, internal electrode plate
2.Between anode and cathode used PVDF material to isolation
3.Resistant to corrosion, high stability, long life characteristics
Electrode plate
1.HADA company patent technology, the cathode and the anode were all made of pure titanium TA1
2.Surface used nanotechnology, ruthenium, iridium oxide coated layer
3.25 times coated, coating thickness of 20um
4.Ensured the electrode has the long service life
Electrolysis power
1.Marine-grade high-frequency voltage constant current power supply
2.Power conversion efficiency>92%
3.Resist general moisture, dust ,and corrosive,low heat ,stable
Siemens PLC
1.Directly controlled the safe, reliable operation of the generator system
2.Alarmed and auto stopped the Siemens SmartSeries LC touch screen
3.Displayed the running state, through the touch screen to adjust and set all parameters.
sodium hypochlorite disinfectant water treatment plant of china supplier
Advantage by our machine
| HADA series | Others | |
| Chlorine concentration | 15% at max | 5~12% at max |
| Eletrolyzer |
HADA patent Pure titanium ,coating by ruthenium and iridium Gap between anode and cathode: 2~3mm, decrease scale formation generate Low heat 25~40 times of coating, ensure Anode long life and high producing
| Gap between anode and cathode: 0.5~0.9mm,incease scale formation generate High heat 15~20 times of coating, less durable |
| Electrolysis power |
HADA patent Power conversion efficiency>92% low heat, resist moisture,dust and corrosive
| Power conversion efficiency at 75%~85% |
| Control system |
"Siemens" PLC and LCD touch screen 24 hours automatic control online system which you can control and check status in office
| Other PLC |
| Cost for running |
To produce 1KG chlorine cost: <3KG salt and <4KW power
| To produce 1KG chlorine cost: >3.5KG salt and >4.5KW power |
| Supporting |
Detail of every part of the machine Whole set of design chart for project Detail manual books Technical support online and local
| PI and Manual books |
Our Projects
Model | Projects |
HD-10K×2 | 26th world University sports meeting 2011 |
HD-15K×2 | Shenzhen henggang water recycling plant |
HD-120 | Zhengzhou air port Water Company |
HD-200~1000 | Shandong changdao water company |
HD-1000×2 | Singapore SembCorp Water Company |
HD-1K | Guangdong minjie group |
HD-10K×2 | Daqing Oilfield longyi waterworks |
HD-20K×2 | Jiaozuo Wenxian east County water plant |
HD-15K×2 | Zhangzhou Development Water Company |
HD-350 | Uzbek Waterworks |
HD-4000 | Budweiser InBev Sedrin beer company |
HD-5K | Fujian mandy food company |
HD-300 | Zhangzhou huachang food company |
HD-5K~20K | Singapore shipyard |
HD-10K~15K | China shipyard |
HD-20K | Japanese Osaka |
HD-1500 | Fujian dragon Food Co. Ltd. |
HD-500 | Fuzhou xinfu food company |
HD-1000 | Xiamen Swire Coca-Cola Company |
HD-800 | Fuzhou Pepsi Cola Beverage Co., Ltd. |
HD-5K | Zhangzhou 175 Hospital |
Water company waterworks disinfection ( large-scale water plant )
water treatment water tester
Model: HD-15K
Output chlorine amount: 15000g/h
Applied industry: recycled water disinfection, medicine wash of ultrafiltration system
Processed water amount: 50000t/h
Room size for equipment: 6000mm (length) x 12000mm (width)
Salt dissolving tank: 1000L, one for use and the other for preparation
Dilute salt tank: 1000L
Storage tank: 3000L, one for use and the other for preparation
Dissolved salt filter: PVDF filter material, filter fineness, 150um
Salt adding cycle: 5~7days
Raw material: 2.5%~3.0% dilute salt water
Salt consumption: 3.0 Kg/Kg
Electricity consumption: 3.8Kw/Kg
Control mode: change-over of local and remote control
Man-machine interface: 10.5 inches man-machine interface
Controller: SIMENS PLC
Tank material: food grade PE material
Operation mode: fully automatic operation and closed-loop chlorine dosing control system
Ultrafiltration drug washing dosing pump: Milton diaphragm metering pump, three for use and one for preparation
Recycled water dosing pump: Milton diaphragm metering pump, four for use and two for preparation
Food company production process disinfection( Budweiser Beer Co., Ltd in Nan Chang )
water treatment water tester
Specification: 500g/h sodium hypochlorite generator of electrolyzing salt water type
Industry: adding chlorine to disinfect total water of beer production water
Dosing mode: DN200 electromagnetic flowmeter, online residual chlorine sensor and frequency conversion dosing
Configuration list: salt dissolving tank, filter for dissolved salt, proportioner, dilute salt water tank, dilute salt water metering pump, sodium hypochlorite generator, storage tank, hydrogen exhaust fan, dosing metering pump (one use, one spare), DN200 electromagnetic flowmeter, DN250 pipe mixer, SIMENS PLC of S7-200 type (carrying 4 input and 2 output analog modules), SIMENS SMART man-machine interface, frequency converter, online residual chlorine instrument.
Water recycling plant project ( project of Universiade in shenzhen,2011)
water treatment water tester
Model: HD-5000
Output chlorine amount: 5000g/h (one for use and the other for preparation)
Application: reclaimed water disinfection, drug washing by ultrafilter system
Water treatment amount: 25000t/h
Room size for equipment: 6000mm(long)x1200mm(wide)
Salt dissolving tank: 1000L, one for use and the other for preparation
Dilute salt tank: 1000L, one for use and the other for preparation
Storage tank: 3000L, one for use and the other for preparation
Salt dissolving filter: PVDF filter material, filter fineness, 150um
Salt adding cycle: 5-7days
Raw material: 2.5%~3.0% dilute salt water
Salt consumption: 3.0Kg/Kg
Electricity consumption: 3.8Kw/Kg
Control mode: change-over of local and remote control
Main-machine interface: 10.5 inches SIMENS interface
Controller: SIMENS PLC
Tank material: food grade PE material
Operation mode: fully automatic operation and closed-loop chlorine dosing control system
Ultrafiltration drug washing dosing pump: Milton diaphragm metering pump, two for use and one for preparation
Recycled water dosing pump: Milton diaphragm metering pump, three for use and one for preparation
