South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Dimension:

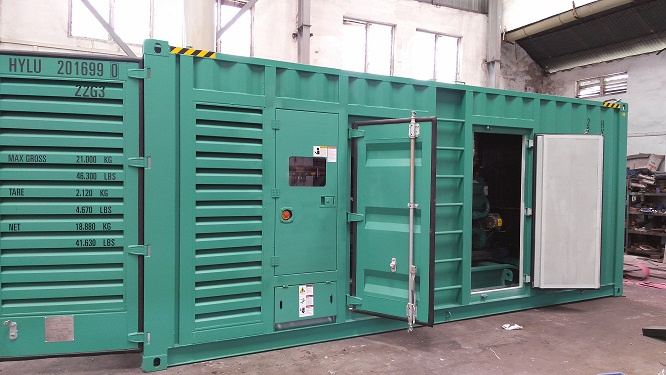

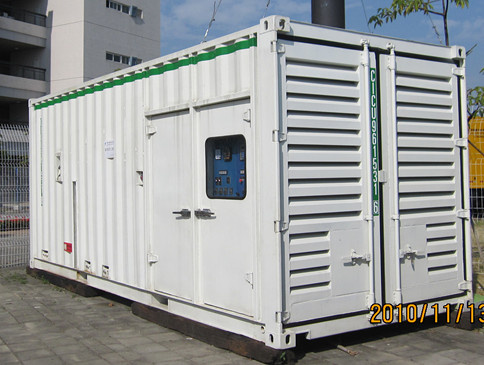

20'ft Container
Alternator:
Leateck/Stamford
Controller:
Smartgen/Deep Sea
Insulation Grade:
H
Protection Grade:
IP21-23
Start System:
Electric Start
Type:
Micro-Computer Control Automatic Diesel Generator
Installation Method:
Fixed
Stroke:
Four Stroke
Cooling Method:
Water Cooling
Output Type:
AC Three Phase
Product Description
Product Description-600kw Diesel Generator Set With Cummins Engine
1. Powered by Cummins Engine 2. With Stamford / Leateck Alternator 3. With CHINT / ABB MCCB & Electronic Components 4. Electric Start with Battery 5. Base Integrated Fuel Tank 6. ATS, Deepsea / ComAp / Smartgen Controller 7. Comply with ISO9001/CE/SGS 8. After-sale Services
Model No.
STANDBY POWER
PRIME POWER
ENGINE
ALTERNATOR
CONTROLLER
KVA
KW
KVA
KW
OCL-880
880
704
800
640
KTA38-G2A
LTG404D1
6110
230/400VAC,50Hz,0.8PF (lag),Three phase four wire Generator set specifications
Governor Class
ISO8528 G3
Potential Drop
1%
Steady Voltage Regulation
1%
Frequency Drop
Synchronous(0%)
Steady-state Frequency
0.25%
R.R.I.Suppression
BS EN 61000-6-4 / BS EN 61000-6-2
Fuel Consumption Rate ,g/kw.h(L/hr)
199 (185.12)
Starting Battery Capacity ,A/hrhhr
200*4
Total Coolant Capacity ,L
252
Fuel Capacity (base tank),L
N/A
Engine Data
Model
KTA38-G2A
Type
"V" Type 12 Cylinder,4 Cycle
Displacement ,L
37.8
Compression Ration
14.5:1
Aspiration
Turbo, Water / Air Cooling
Fuel System
PT type Fuel Pump,EFC Electronic Governor
Bore*Stroke(mm)
159*159
Rated Speed ,rpm
1500
Governor Type
Electronic
Starting Voltage
24V ,Negative ground
Battery Charging System
24V 35A
Lubricant Capacity ,L
135
Coolant Capacity, L
252
Alternator Data
Protection Class
IP21
Insulation Class
Class H
Temperature Rise in Standard
125ºC(When Ambient Temp.is 40 ºC)
Excitation Type
Brushless & Self-excited
Waveform Distortion
No load<1.5% Non-Distorting balanced linear load<5%
Telephone Interference(TIF)
<50
Telephone Interference(THF)
<2%
Exhaust System
Exhaust air flow
3225 L/S
Exhaust Temperature
536ºC
Max Back Pressure
10kPa
Air Intake System
Max Intake Restriction
6.23 kPa
Burning Capacity
1126 L/S
Air Flow
30425 L/S
Lubricant System
Total Lubricant Capacity
135L
Lubricant Consumption
≤4g/kwh
Engine Oil Tank Capacity
114L
Oil Pressure at Rated Speed
297-483 kPa

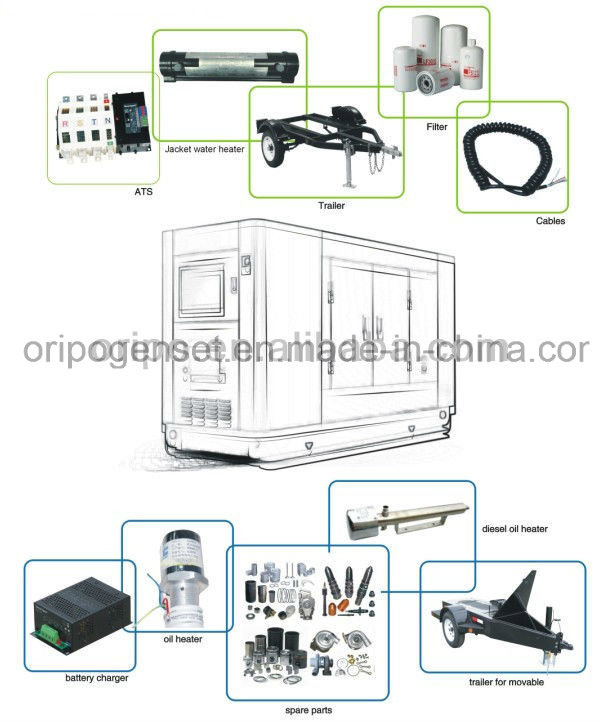

OPTIONAL ACCESSORIES/SPARE PARTS:
-Sound and water proof enclosure -Trailer/Movable power station -Battery charger -Jacket water heater -Oil heater -Diesel oil heater -Automatic transfer switches(ATS) & paralleling system -Extra fuel tank -Fuel water separator Service gurantee:
BEFORE SERVICE: According to the clients' requirement and actual situation, we will furnish the technology consultation and kinds ofinformation.including drawings,specifications and offical offer.
AFTER SERVICE: Guarantee for one year or 1000 running hours (accord to whichever reach first) from installed date. During the guaranteeperiod, such as Cummins or Perkins generators. they are international brands and the after-sale service is worldwide,you can contact yourcountry's after-sale or contact us for repairment;When replacing spare parts,please take some pics to describe the problems,we will solve it a.s.a.p.
maintenance:
1) Do the full power load test for five hours before package.
2) One year or 1000 working hours, whichever comes first.
3) After expiration, we provide spare parts maintenance with low price. Contact Details: FOSHAN ORIPO POWER ENGINEERING CO.,LTD Contact person:Janet Mobile: +86-18923200408 Fax:0757-28791208 Web:http://en.oripo.com
