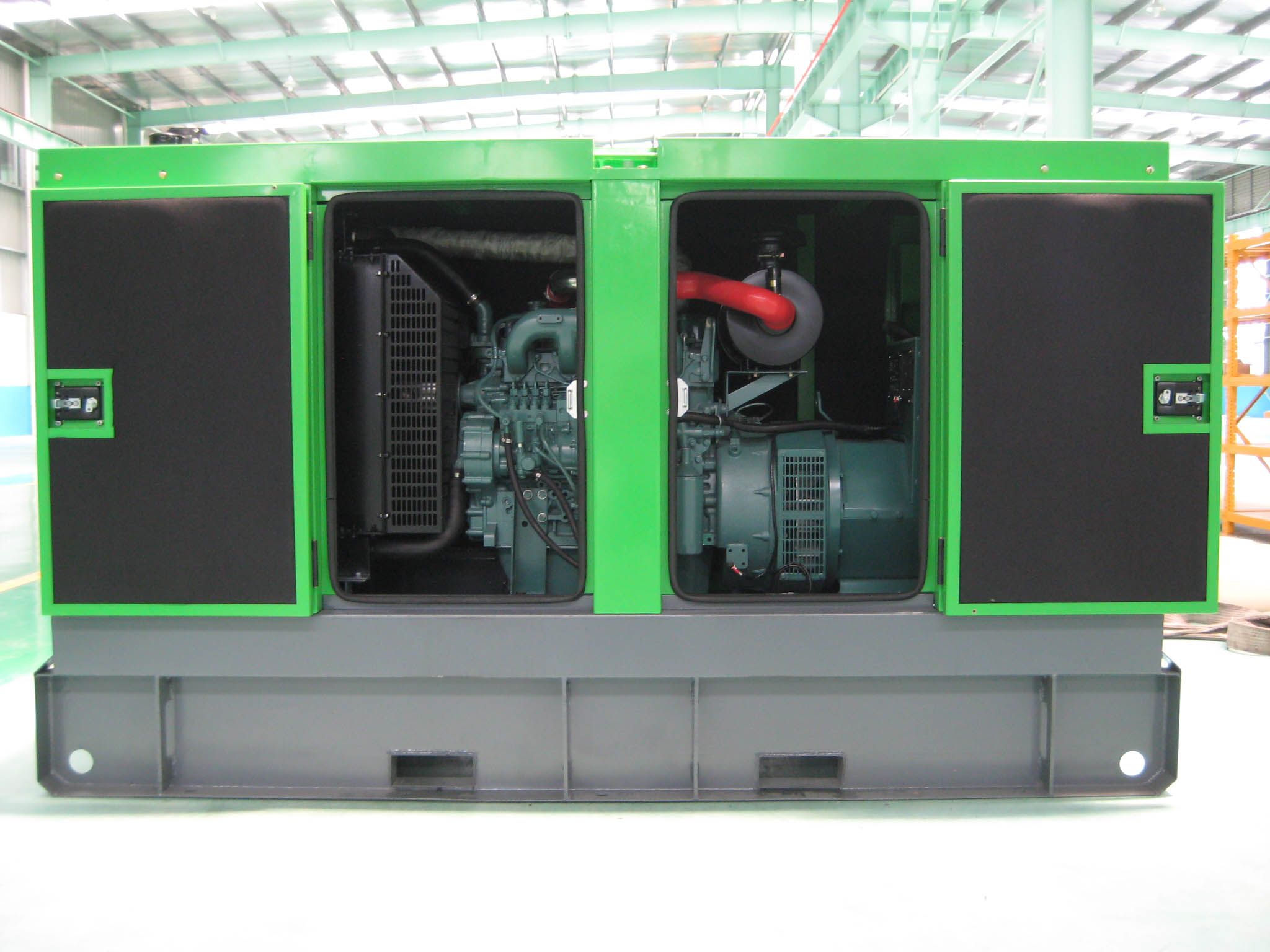

80kw/100kVA Water Cooled Silent Deutz Diesel Generator (GDD100*S)

Prod Model:	GDD100*S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Specialize:	100% Famous Material
Engine:	Deutz Engine, Cummins, Perkins etc Is Optional
IP:	23
Controller:	Dse, Smartgen Is Optional
Wire:	100% Pure Copper Wire
Load Test:	25%, 50%, 75%, 100%, 110%
Alternator:	Stamford, Ennga, Marathon, Leroy Somer
Type:	Basic Diesel Generator
Installation Method:	Fixed
Stroke:	Four Stroke
Cooling Method:	Wind Cooling
Output Type:	AC Three Phase

Product Description

80kw/100kVA Water cooled Silent Deutz Diesel Generator (GDD100*S)

Basic Info.
1. International Warranty Service
2. Both water cooled engine and air cooled engine for option
3. With ISO9001 & TUV certification
4. Spare parts are easy to get from worldwide market with much cheaper price
5. Coupled with Stamford alternator, Leroy Somer alternator or Chinese Lisite alternator
6. Perfect after-service network
7. Power range from 15kVA to 585kVA, 50Hz &60Hz
8. Rigorous test including 50% load, 75% load, 100% load and 110% load
9. Very short delivery time

Generator Set:
Generator Model: GDD100*S
Prime Power(KW): 80KW
Rated Voltage(V): 400/220V
Frequency(Hz): 50Hz
Power Factor: 0.8(lagging)
Rated Current (A): 144A
Dimension (L× W× H) (mm): 2400*800*1600mm
Genset weight (KG): 1150KG
Diesel Engine:
Brand: Deutz
Type: TD226B-6D
Power(KW): 99KW
Number of Cylinders: 6
Rotating Speed: 1500RPM
Aspiration: Turbocharged after water-cooled
Bore× Stroke(mm): 105*120mm
Displacement(L): 6.23L
Compression Ratio: 15.5: 1
Speed Governor: Electrical
Cooling System: Water-cooled
Fuel Consumption at 100% Load: ≤ 208g/kwh
Starting Method: 24V Electrical starting

Alternator:
Brand: Stamford Brushless
Model: HJI64
Rated Voltage(V): 120V-690V
Rated Volumn(kVA): 80kVA
Rated Power(KW): 64KW
Connecting Type: 3hase and 4 Wires
Frequency: 50/ 60Hz 1500RPM/1800RPM
Number of Bearing: Single/Double
Protection Grade: IP23/IP44
Altitude: Within the limits of 1000m, temperature of 40º C or OEM
Exciter Type: Brushless, Self-exciting, AVR automatic voltage regulating
Insulation Class: H/F
Telephone Influence Factor (TIF): 50
THF: <2%
Voltage Regulation, Steady State: ≤ ± 0.5%
Transient State Voltage: ≤ -15%~+20%

Test before shippment
1, Each Generator Set shall be put into commission more than 4 hours totally, tested on idleload, fully load and 10% overload.
2, Noise level shall be tested.
3, All of the meters on the control panel shall be tested.
4, The appearance of the Set and the label, nameplate shall be tested. "
Voltage available: 50Hz: 380-400-415V/ 220-230-240V; 60Hz: 220-380-416-440-480V/ 110-208-220-240V. Any special voltage is also available as cilent's request.

Packing & Warranty
Packing: Wooden, Plywood or Metal Case.
Delivery Time: Less than 25 working days after receiving prepayment.

Warranty: One year or 1, 000 hours from the date of shippment
(15 Months or 1, 200 hours for Alternator Part).
Our warranty standard is higher than most manufacturers for about 25%, because we are confident in our strict test and quality management during each step of manufacture.

Control System:
Basic control system, the basic type control system is provided with a current meter, a volmeter, a frequency meter, an oil pressure guage, a water thermometer and indicator lights on the control cabinet and 4 additional protection fuctions are to be provided as required by customers.

Germany Deutz Air-cooled generator configuration and technical data

50HZ, 3 Phases, 400V
No.	GENSET Model	OUTPUT POWER  1500RPM 50HZ				Engine Model	Alternator Model		Bore*Stroke	Cyl.	Disp.	Fuel Cons.
		Prime KVA	Prime KW	Standby KVA	standby KW	Deutz	GODLIKE	Stamford	(mm)	Nos	(L)	g/kw.h
1	GDD15*S	15	12	17	13	F2L912	JDG164D	BCI164D	100*120	2	1.9	≤249
2	GDD20*S	20	16	22	18	F3L912	JDG184E	BCI164E	100*120	3	2.8	≤249
3	GDD25*S	25	20	28	22	F3L912	JDG184F	BCI184F	100*120	3	2.8	≤249
4	GDD30*S	30	24	33	26	F4L912	JDG184G	BCI184G	100*120	4	3.8	≤249
5	GDD33*S	33	26	36	29	F4L913	JDG184H	BCI184H	100*120	4	3.8	≤249
6	GDD38*S	38	30	41	33	F4L912T	JDG184H	BCI184H	102*125	4	3.8	≤249
7	GDD43*S	43	34	47	37	F4L912T	JDG184J	BCI184J	102*125	4	3.8	≤249
8	GDD50*S	50	40	55	44	F6L912	JDG224D	UCI224D	100*120	6	5.7	≤251
9	GDD53*S	53	42	58	46	BF6L913	JDG224ES	UCI224E	102*125	6	6.1	≤251
10	GDD60*S	60	48	66	53	F6L912T	JDG224E	UCI224E	102*125	6	5.7	≤251
11	GDD69*S	69	55	76	61	BF6L913	JDF224F	UCI224F	102*125	6	6.1	≤251
12	GDD94*S	94	75	103	83	BF6L913C	JDG224H	UCI274C	102*125	6	6.1	≤251
13	GDD113*S	113	90	124	99	F8L413F	JDG274DS	UCI274D	125*130	8	12.8	≤206
14	GDD150*S	150	120	165	132	BF8L513	JDG274E	UCI274F	125*130	8	12.8	≤206
15	GDD188*S	188	150	206	165	BF8L513C	JDG274G	UCI274H	125*130	8	12.8	≤206
60HZ, 3 Phases, 220V
No.	GENSET Model	OUTPUT POWER  1800RPM 60HZ				Engine Model	Alternator Model		Bore*Stroke	Cyl.	Disp.	Fuel Cons.
		Prime KVA	Prime KW	Standby KVA	standby KW	Deutz	GODLIKE	Stamford	(mm)	Nos	(L)	g/kw.h
1	GDD16X*S	16	13	18	14	F2L912	JDG164C	BCI164D	100*120	2	1.9	≤249
2	GDD29X*S	29	23	32	25	F3L912	JDG184E	BCI184E	100*120	3	2.8	≤249
3	GDD34X*S	34	27	37	30	F3L913	JDG184F	BCI184F	102*125	3	2.8	≤249
4	GDD38X*S	38	30	41	33	F4L912	JDG184G	BCI184F	100*120	4	3.8	≤249
5	GDD43X*S	43	34	47	37	F4L913	JDG184H	BCI184G	102*125	4	3.8	≤249
6	GDD61X*S	61	49	67	54	F6L912	JDG224D	BCI184J	100*120	6	5.7	≤249
7	GDD73X*S	73	58	80	64	F6L913	JDG224E	UCI224D	102*125	6	6.1	≤251
8	GDD80X*S	80	64	88	70	F6L912T	JDG224E	UCI224D	100*125	6	6.1	≤251
9	GDD88X*S	88	70	96	77	BF6L913	JDG224F	UCI224G	102*125	6	6.1	≤251
10	GDD119X*S	119	95	131	105	F6L913C	JDG274C	UCI224G	102*125	6	6.1	≤251
