North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Torque ( Nm):
548
Low Idle(Rpm):
750~850
Engine Coolant F Low ( L/Sec):
2.0
Piston Speed (M/S):
6.0
Air Intake Flow ( L/Sec):
100
Low Idle(Kpa):
207
Rated Speed(Kpa):
345
Max . Coolant Temperature Permitted:
69
Continuous Power(L/ H):
N/a
Max . Back Pressure(Mmhg):
76
Type:
Self-Starting Diesel Generator
Installation Method:
Fixed
Stroke:
Four Stroke
Cooling Method:
Water Cooling
Output Type:
AC Three Phase
Product Description

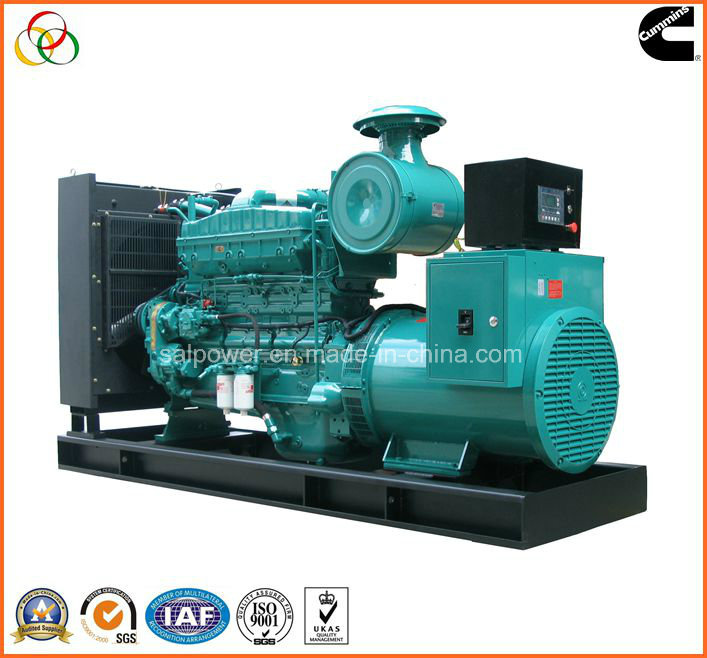

85kw/106KVA Diesel Fuel Power Electric Generator with Cummins engine 6BT5.9-G2
Manufacture
Guangdong Salpower Equipment CO,.LTD
Genset Model
SALC-85
Prime Power (50Hz/60Hz) 77KW/96KVA StandbyPower (50Hz/60Hz)85KW/106KVA Rated Current (Prime) 144A
Size and Weight
Open Type Overall Size:
2390mm*1110mm*1930mm
Weight:
1830kg
Standard Configuration
Engine(DCEC Cummins(6BT5.9-G2)
Radiator 50OC max, fans are driven by belt, with safety guard
24V charge alternator
Alternator: single bearing alternator IP23, insulation class H/H
Dry type air filter, fuel filter, oil filter
Main line circuit breaker
Standard control panel
Two12V batteries, rack and cable
Muffler and Bellows and other accessories
User manual product certification
Technical Parameters
Gen-set
Steady voltage adjustment rate (%)
≤±1
Voltage fluctuation rate (%)
≤±0.5
Transient voltage adjustment rate (%)
+20~-15
Voltage stability time (s)
≤1
Steady frequency adjustment time (%)
≤±1
Frequency fluctuation rate (%)
≤±0.5
Transient frequency adjustment rate(%)
+10~-7
Frequency stability time (s)
≤3
Waveform distortion rate (%)
≤5
Altitude (m)
≤1000
Relative air humidity (%)
≤90
Engine
Brand
Cummins
Origin
Hubei
Model
6BT5.9-G2
Primary\Standby power (KVA)
96 / 106
Type
4Stroke,In-LineType, 6 Cylinder
Start model
24VDC electric start
Bore X Stroke (mm)
102x120
Type of Governor
Electric(E)
Compression Ratio
17.5
Displacement (L)
5.9
Fuel consumption@100% load
212g/kw. h
Cooling system
Cooling style
Closed circulating water cooling
Cooling system capacity (L)
9.9
AC Alternator 1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon, Engga, 2. Brushless, 4 poles, rotation magnet 3. IP21-23(NEMA1) enclose is standard for all industrial alternators 4. H class insulation system 5. AVR self-regulated, voltage regulation rate: ≤ ± 1% 6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts 7. Wide range of flange adaptors and single bearing disc coupling 8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528 9. Moisture proof, sand-proof, dustproof, salt-proof andvibration-proof
Control System * Standard matching brands:Smartgen,Deepsea and ComAp * LED/Graphics/meters indicate unit running parameters * High water temperature, low oil pressure, low speed, overspeed and others alarm and protected * Automatically start switching when the main power service fails(optional) * Multi-gensets with automatic parallel connection control module(optional) * Functions of remote control interface, remote control, remote test and remote signal(optional).
Product description: Genset with ISO9001/ISO14001,with Cummins engine 6BT5.9-G2 equipped with Alternator Stanford/ENGGA/Marathon, the control panel is /Deepsea/ Smartgen /ComAp. The frequency is 50HZ, the rated speed is 1500rpm/min or 60HZ/1800rpm/min, the insulation class is IP23/H, self-exciting, brushless and the altitude is about 1000m, three-phase four wire. Open size/ Super silent DG set, the noise level never exceed 70db at a distance of 7m.
Additional Info.
Packing:Plywood Case, Customized Origin:China HS Code:8502120000 Production Capacity:300PCS/Month
Instruction and Quality warranty
Available in the following voltages:415/240,380/220 Prime Power (PRP):Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97(eqv ISO8528); A 10% overload capability is available for a period of 1 hour within a 12-hour period of operation. Standby Power Rating (ESP):The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating. Quality warranty:Guangdong Salpower Equipment Co.,LTD provides a full line of brand new and high quality products. Each and every unit is strictly tested. Warranty is according to our standard conditions:12 months, counted on the day sold to the first buyer; One year after installation; 1000 running hours (accumulated); subject to the earlier one.
Guangdong Salpower Equipment Co., Ltd. is a leading generator manufacturer with a long history in Guangdong Province, and it is a large-scale enterprise specializing in R & D, production, sale and service of diesel generating set. It owns modern production equipments and high-quality scientific and R & D personnel, strong technical force, global fittings and unit purchase system and network.
With great advantage of diesel generating set R & D and high-quality after-sale service, Salpower Company has obtained fine market reputation. In this industry, it has been an important with such domestic and international manufacturers as Cummins, Perkins, Shanghai Diesel Engineering Limited, Weichai Power, Yuchai Power, Wuxi Power, Jinan Diesel Company, Stamford, Guangzhou Engga, Shanghai Qianghui, etc. Power of generating set manufactured by Salpower ranges from 30KW to 2000KW, it can cove generating sets for general purpose and various purposes. The products are extensively utilized for telecommunication system, express highway, real estate, construction project, finance system, hotel, railway, large shopping mall, hospital, factory, school, residence and other important fields. In domestic market, this Company owns a great deal of excellent clients. In addition, Salpower also tries to exploit the international market. Presently, its products have been well sold to The South America, Middle East, Africa and so on. What's more, all the products from Salpower are strictly complied with ISO9001&ISO14000, and other certifications, including SGS, CE, etc.
With the principle of "quality for survival, credit for development", Salpower is willing to provide high-quality product and perfect service to you, and is ready to cooperate with you for creating brilliant future together.
We cordially welcome vast new and frequent clients to give us call and letter for enquiry and cooperation!
