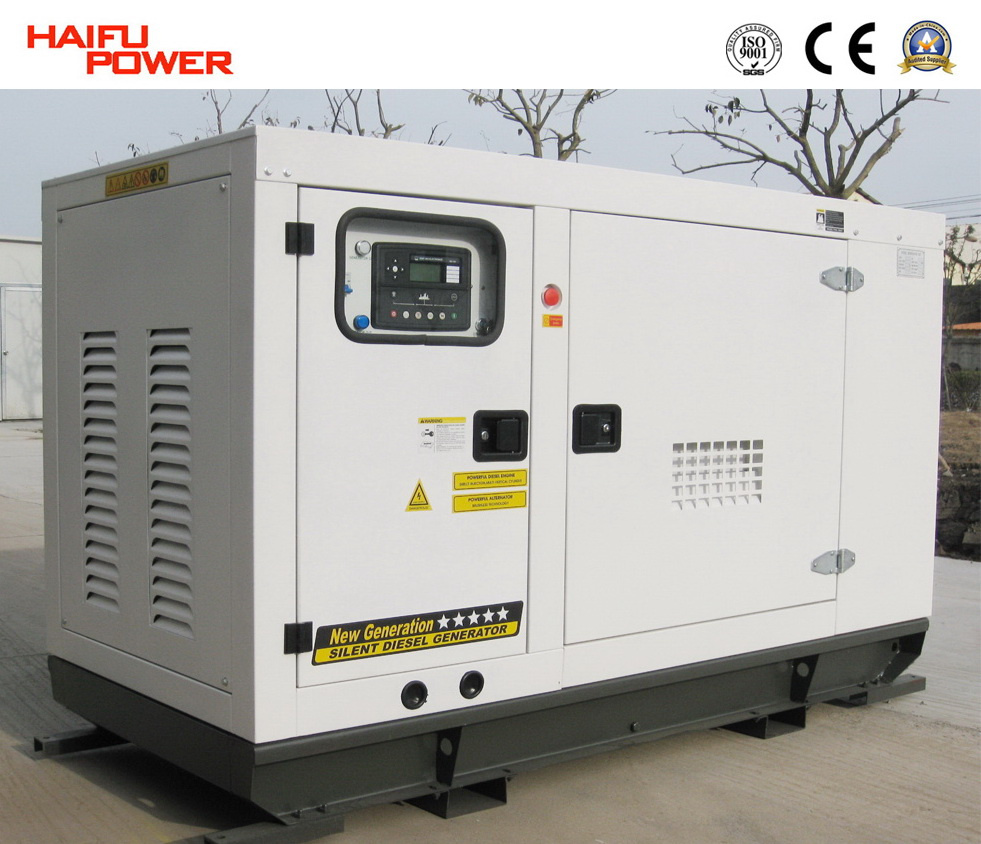

8kVA~300kVA Quanchai Engine Diesel Generator Set/ Diesel Genset/ Silent Generator (HF100Q2)

Prod Model:	HF100Q2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency:	50/60Hz
Rated Speed:	1500/1800rpm
Fuel Tank:	Skid Mounted
Place Of Origin:	Jiangsu, China
Certification:	CE, ISO, Soncap
Type:	Micro-Computer Control Automatic Diesel Generator
Installation Method:	Fixed
Stroke:	Four Stroke
Cooling Method:	Water Cooling
Output Type:	AC Single Phase

Product Description

1. 8kVA~300kVA Quanchai Engine Diesel Generator Set/ Diesel Genset/ Silent Generator/ Power Generator
2. Powered by Quanchai Engine
3. With Stamford / Leroy Somer / Marathon Alternator
4. With CHINT / ABB MCCB & Electronic Components
5. Electric Start with Battery
6. Base Integrated Fuel Tank
7. ATS, Deepsea / ComAp / Smartgen Controller
8. Comply with ISO8528/GB2820
9. After-sale Services

Engine and alternator mounted on the same frame steel skid.
Built-in damper for anti-vibration.
Small size, low weight, easy to operate, installation and maintenance.
China famous brand Quanchai diesel engine.
World famous brand AC alternator: Stamford, Marathon, Leroy Somer, etc
Advanced and reliable control module: Key start, Auto start, Remote control by PC with RS232/485
Full range protect function and alarm shutdown feature.
ATS, Base Fuel Tank as Options.

Control Systems

Standard control panel is the basic configure for normally operation and usage. The advantages of this panel are easy operation, aomprehensive function and reliable protection and so on. There are indicating gauges, lamps, transfer switches and emergency stop button, etc. The control panel wil stop the whole generator set and alarm as well when malfunction appears.

LED Automatic Control Panel is a kind of intelligent controller with LED displaying the operating mode of the controller and the running state of the generator sets. It can configure the control procedure and protection parameter of the generator set, and completely satisfied the automatic controlling requirement of the generator sets for the user or factory.

LCD Automatic Control Panel is the configuration for nobody on duty controlling generator sets. This kind of panel adopts module control system, with large LCD screen to show the menu. The module can receive output signal from ATS and realize automatic start and stop the generator set.

ATS(Fully Automatic) is the standard configure of emergent power system. It detects the voltage and
Frequency of main power timely. While there is something wrong, such as high voltage, low voltage, phase missing, electricity cutting off, etc., it will signal to start the generator set automatically;
While main power resumes balanced, it controls the generator set to shut down after cooled.

Engine

• Heavy duty diesel engine
• Four stroke, water cooled
• 12V and 24V stater and charge alternator
• Cooling radiator and fan
• Maintenance free battery including ract and cable
• Flexible fuel connection hoses and manual oil sump drain valve
• Exhaust silencer

Alternator

• Brushless, single bearing, flexible disc
• Insulation class: H
• Protection class: IP23
• Self-exciting and Self-regulation

Canopy

• All canopy designed with modular principles
• All metal canopy parts painted by electrostatic polyester power paint
• Soundproof design ensure that the noise level be controlled in small scope
• Convenient to lift and move
• Easy to maintenance and operate

Base Frame

• Base frame including position for forklift and crane
• Integral fuel tank
• Daily fuel tank continuously supply for 8-24 hours
• Fuel tank easy to maintain and clean
• Anti-vibration pads are flexed between engine and alternator.

Control System
Control, monitor and protect the Generator Set including:

• High water temperature
• Low oil pressure
• Over and under speed
• Over current
• Under/Over generator voltage
• Start and stop failure
• Low and high battery voltage
• Charge fail
• Emergency stop

General Data Sheet

Model	Engine Model	Power 50/60HZ		Cylinder No.	BorexStroke (mm)	Cylinder Liner Type	Fuel Consumption (g.kw/h)	Dimension / Silent Type (mm)	Weight (kg)
		KW	KVA
HF08Q	QC380D	8	10	3	80*90	wet	210	1920x950x1180	660
HF10Q	QC385D	10	12.5	3	85*90	dry	210	1920x950x1180	680
HF12Q	QC480D	12	15	4	80*90	dry	210	1920x950x1180	720
HF16Q	N485D	16	20	4	85*95	wet	215	1920x950x1180	800
HF20Q	QC490D	20	25	4	90*105	wet	215	2070x950x1200	800
HF24Q	QC498D	24	30	4	98*105	dry	215	2070x950x1200	840
HF30Q	4102D	30	37.5	4	102*118	dry	215	2150x950x1200	860
HF32Q	4105D	32	40	4	102*118	dry	215	2150x950x1200	880
HF36Q	4105D	36	45	4	102*118	dry	215	2150x950x1200	910
HF40Q	4JR3AD	40	50	4	105*135	wet	198	2280x1050x1300	1000
HF48Q	4JR3ABD	48	60	4	108*135	wet	198	2280x1050x1300	1050
HF50Q	4JR3ABD	50	62.5	4	108*135	wet	198	2280x1050x1300	1100
HF56Q	QC4112D	56	70	4	112*135	wet	198	2500x1200x1400	1200
HF60Q	QC4115D	60	75	4	115*135	wet	198	2500x1200x1400	1250
HF64Q	QC4112ZD	64	80	4	112*135	wet	198	2500x1200x1400	1310
HF72Q	QC4112ZD	72	90	4	112*135	wet	198	2500x1200x1400	1380
HF80Q	QC4112ZD-1	80	100	4	112*135	wet	198	2500x1200x1400	1450
HF88Q	QC4112ZLD	88	110	4	112*135	wet	195	2500x1200x1400	1500
HF96Q	QC4112ZLD	96	120	4	112*135	wet	195	2500x1200x1400	1560
HF100Q	QC6112ZD	100	125	6	112*135	wet	195	2850x1200x1600	1770
HF112Q	QC6112ZD	112	140	6	112*135	wet	195	2850x1200x1600	1850
HF120Q	QC6112ZD-1	120	150	6	112*135	wet	195	2950x1250x1700	2000
HF128Q	QC6112ZD-1	128	160	6	112*135	wet	195	2950x1250x1700	2200
HF144Q	QC6112ZLD	144	180	6	112*135	wet	195	3050x1250x1700	2300
HF160Q	QC6112ZLD	160	200	6	112*135	wet	195	3050x1250x1700	2380
HF180Q	QC10ZLD	180	225	6	126*130	dry	190	3200x1500x2000	2450
HF200Q	QC10ZLD1	200	250	6	126*130	dry	190	3200x1500x2000	2530
HF240Q	QC10ZLD-1	240	300	6	126*130	dry	190	3300x1500x2100	2800
