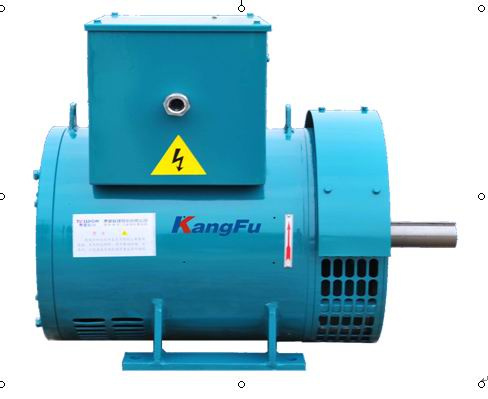

AC Alternator Series 280kw~500kw

Name: AC Alternator Series 280kw~500kw
Brand: aboutgenerator.com
SKU: 684909455
Availability: InStock
Rating: 4.7 (93 reviews)

Price:	Negotiable
Trade Terms:	by Sea
Min Order:	1Set
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Guangzhou Weilida Machinery & Electronic Co., Ltd.

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage:	Industrial
Speed:	Low Speed
Power Source:	AC Motor
Structure:	Synchronous Motor
Function:	Driving
Starting Mode:	Three Phase

Product Description

Performance characteristic

Particular exciting system design and high-ability for nonlinerity load
Single bearing and two bearing structure, rotors have been dynamic balanced, adopt sealed bearings
Advanced AVR control, apply± 2.5% or ± 1% voltage regulation factor
Easily to install and maintenance
Standard IP23 protection class
Apply the newest marine standard producing

Collocation to choose

Resistance temperature detect (RTD)
Winding temperature protection thermistor
Space heater
Air filter
Parallel droop device
PMG exciting system

3-phase stator class F, rator class H Temp. Rise
Type	Rate power(KW)	Rate Capacity(KVA)	Rate Voltage(V)	Rate Frequency(HZ)	Rate Speed (r/min)	Rate PF(LAG)	Insula-tion Class	Protect-ion Class	Effice-ncy(%)
HW4(. D)-280KW	280	350	6300	50	1500	0.8	H/H	IP23	92.4
HW4(. D)-300KW~	300	375							92.8
HW4(. D)-320KW	320	400							93.3
HW4(. D)-355KW	355	443.75							93.4
HW4(. D)-400KW	400	500							93.9
HW4(. D)-456KW	456	570							94.1
HW4(. D)-500KW	500	625							94.3

One of the Leading Manufacturers of Diesel Generator Sets:

Founded in 1994, Guangzhou Weilida Machinery & Electronic is one of the leading manufacturers of diesel generator sets in China. Through our hard work, we have built long-term relationships with engine manufacturers such as Cummins, Deutz, Mitsubishi, Daewoo and Volvo etc. We are also the general agent of SDEC (Shanghai Diesel Engine Co. ) in Guangdong.

Developing New Items to Update Your Selection:

We have 20 R&D engineers with 19 years of experience. They develop new items to freshen up your options. We also employ 5 QC auditors with five to eight years of experience. They ensure all our products are free of defects. For your added assurance, a one-year warranty is offered.

Monthly Output of 300 Units:

Our ISO 9001: 2008-certified factory covers an area of 5, 000 square meters and houses over 100 workers. With such support, we have a monthly production capacity of 300 sets, which are mainly exported to Africa, the Middle East, Southeast Asia, and South and North America.

Inquire Today:

Our 7 sales representatives with two to five years of experience, They are available to help you in selecting the right generator for your operating environment. At Weilida, we are committed to providing the highest level of customer service, competitive pricing, speedy delivery and reliable products. Our ultimate goal is your satisfaction.
