| Prod Model: |
KDE12T3 |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency: |
50Hz |
| Rated Power: |
9kVA |
| Max. Power: |
10kVA |
| Structure: |
Silent Type |
| Engine Model: |
Ka840f, 11kw/3000rpm |
| Type: |
Basic Diesel Generator |
| Installation Method: |
Portable |
| Stroke: |
Four Stroke |
| Cooling Method: |
Air Cooled |
| Output Type: |
AC Three Phase |
Product Description
1. 10kVA diesel generator set
2. Small portable diesel generator
3. New automatic regulator ensures steady voltage output
4. Low oil pressure alarm system, which can shut down the engine automatically
5. Electric start ensures rapid starts of the set
6. It meets the diversified demands from customers
7. CE&ISO9001 approved, powered by KAIAO advanced air-cooled diesel engine
Low noise
8. Ideal for home emergency use or as standby power supply
9. Large fuel tank, ensuring hours of continuous output
10. Advanced direct fuel injection system
11. A variety of specially-designed control panels available for different markets

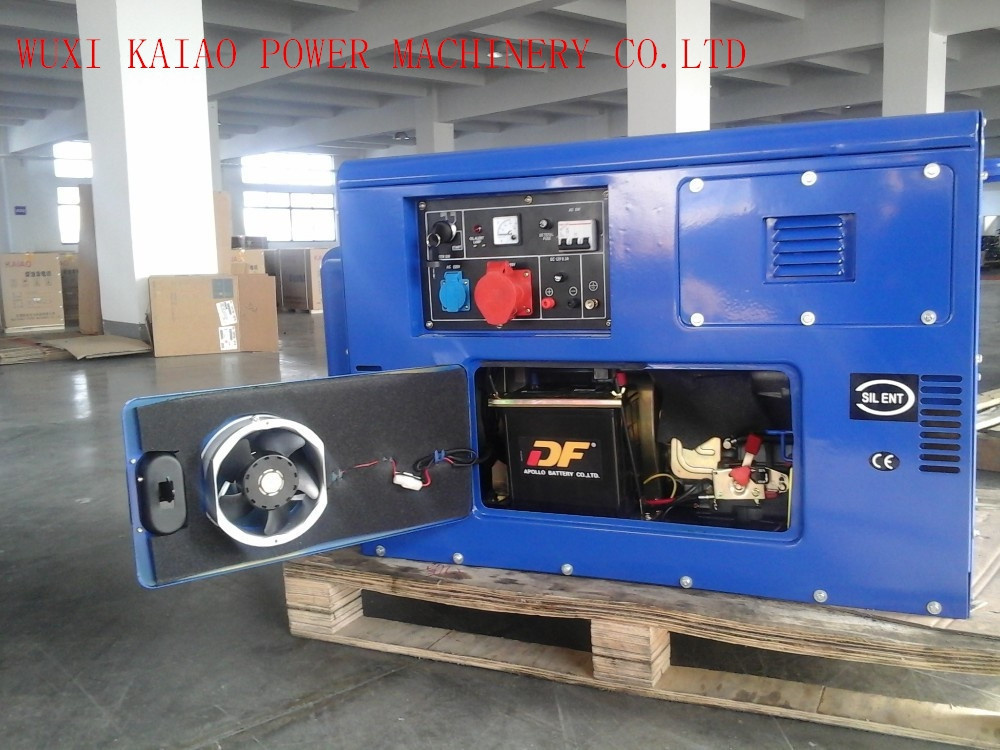

Diesel generator set KDE12T3 |
| Model | KDE12T3 |
| Frequency (Hz) | 50HZ | 60HZ |
| Output power (KVA) | 9KVA | 10KVA |
| Max. Power(KVA) | 10KVA | 11KVA |
| Voltage (V) | 230/400V | 240/416V |
| Current (A) | 13.7A | 14.6A |
| Engine speed (r/min) | 3000rpm | 3600rpm |
| Phase | 3-phase |
| Power factor(cosφ ) | 0.8 |
| Excitation system | Self-excited constant voltage |
| Noise level (7m) | DB (A): 72 |
| Fuel tank capacity (L) | 25L |
| Structure | Silent Type |
| Panel | Ordinary Panel Board |
| Output socket | Two |
| DC12V output | Terminal post |
| Engine Model | KA840 |
| Bore*stroke (mm) | 86 *72mm |
| Displacement (L) | 0.836L |
| Power (KW) | 11KW/3600rpm |
| Fuel consumption rate (g. KW/h) | < 340 |
| Compression ratio |
| Lubrication system | Spring |
| Engine starting system | Electric starter |
| Diesel oil model | Summer: 0#, winter: -10# |
| Lube oil model | SAE10W-30 (above CD grade) |
| Lube oil capacity (L) | 1.65 |
| Battery capacity(V-AH) | 12V-36Ah |
| Net weight (KG) | 265Kg |
| Dimension(L*W*H) | 1180× 720× 820mm |
