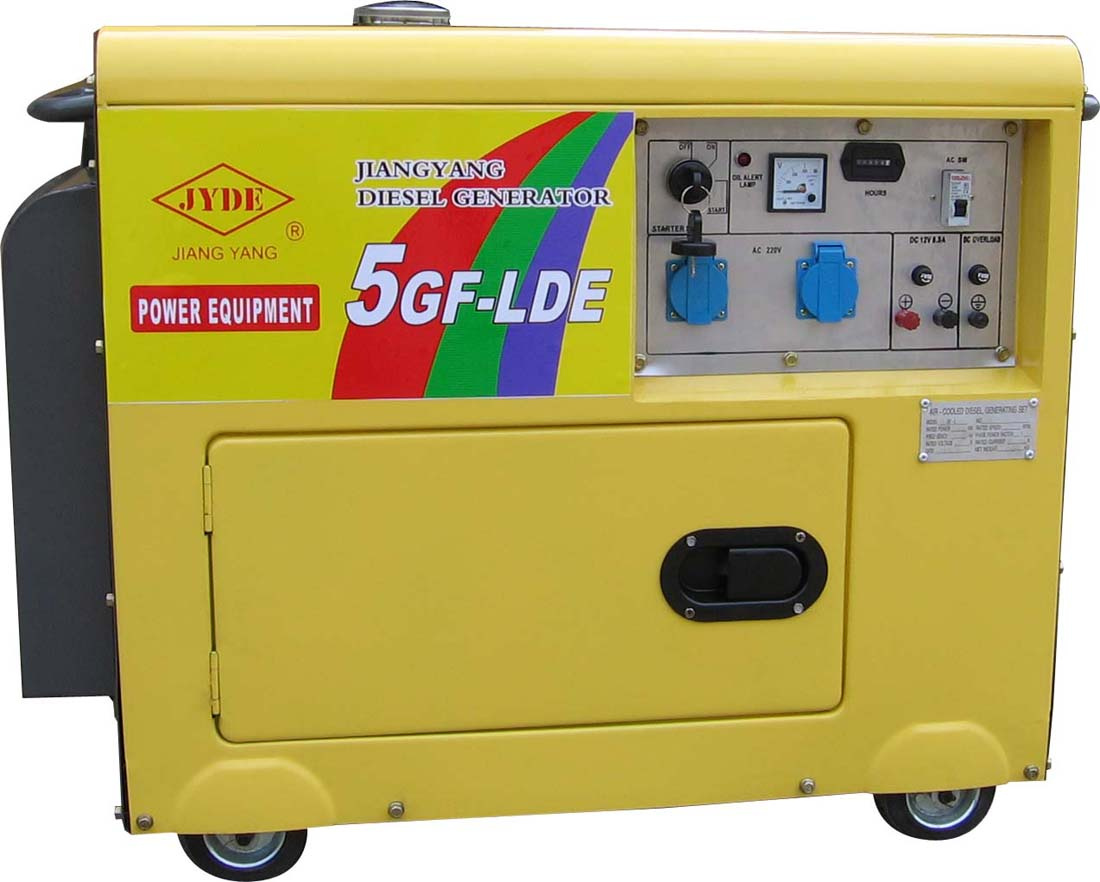

| Model | Econoical type | Luxury type | Silent type | ||||||||||||||
| 2GF-L | 3GF-L | 5GF-L | 2GF-LH(E) | 3GF-LH(E) | 5GF-LH(E) | 3GF-LDE | 5GF-LDE | ||||||||||
| G e n e r a t o r | Type | Revolving field type 2 pole generator | |||||||||||||||
| Frequency(Hz) | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | |
| Cont.output(kw) | 1.7 | 2 | 2.8 | 3.3 | 4.2 | 5 | 1.7 | 2 | 2.8 | 3.3 | 4.2 | 5 | 2.8 | 3.3 | 4.2 | 5 | |
| Voltage(A.C)(V) | 230 | 240 (120) | 230 | 240 (120) | 230 | 240 (120) | 230 | 240 (120) | 230 | 240 (120) | 230 | 240 (120) | 230 | 240 (120) | 230 | 240 (120) | |
| Current(A.C)(A) | 7.4 | 8.3 (16.7) | 12.2 | 13.8 (27.5) | 18.3 | 20.8 (41.7) | 7.4 | 8.3 (16.7) | 12.2 | 13.8 (27.5) | 18.3 | 20.8 (41.7) | 12.2 | 13.8 (27.5) | 18.3 | 20.8 (41.7) | |
| Engine speed(r/min) | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | |
| Phase | Single | ||||||||||||||||
| Power factor(cosØ) | 1 | ||||||||||||||||
| Excitation system | Controlled constant self-excitation | ||||||||||||||||
| D.C.output V/A | 12V/8.3A | ||||||||||||||||
| Operation capacity | 12hour constant operation | ||||||||||||||||
| Coulping pattern | Straight shaft coupling | ||||||||||||||||
| E n g i n e | Model | 170FG | 178FG | 186FG | 170FG(E) | 178FG(E) | 186FG(E) | 178FGE | 186FGE | ||||||||
| Type | Direct injection vertical, 4-cycle, air-cooled diesel engine | ||||||||||||||||
| Displacement cc(cu.in) | 211(12.88) | 296(18.06) | 406(24.78) | 211(12.88) | 296(18.06) | 406(24.78) | 296(18.06) | 406(24.78) | |||||||||
| Max.output(kw/rpm) | 2.8 | 3.1 | 4.6 | 4.6 | 6.6 | 7.35 | 2.8 | 3.1 | 4.6 | 4.6 | 6.6 | 7.35 | 4.6 | 4.6 | 6.6 | 7.35 | |
| Cont.output(kw/rpm) | 2.5 | 2.8 | 4 | 4.4 | 5.9 | 6.6 | 2.5 | 2.8 | 4 | 4.4 | 5.9 | 6.6 | 4 | 4.4 | 5.9 | 6.6 | |
| Starting system | Recoil | LE:Electric LH:Recoil | Electric | ||||||||||||||
| Governor system | Centrfugal weight system | ||||||||||||||||
| Fuel | Diesel light fuel(BS-AL or equivalent) | ||||||||||||||||
| Fuel tank capacity(L) | 2.5 | 3.5 | 5.5 | 7.5 | 13.5 | 15 | 13.5 | 16 | |||||||||
| Lube oil capacity(L) | 0.8 | 1.1 | 1.65 | 0.8 | 1.1 | 1.65 | 1.1 | 1.65 | |||||||||
| Bore x stroke(mm) | 70x55 | 78x62 | 86x70 | 70x55 | 78x62 | 86x70 | 78x62 | 86x70 | |||||||||
| Protection system | Low oil, warning system/stop device(not for L-series) | ||||||||||||||||
| U n i t | Noise level at 7m dB(A) | 79 | 82 | 85 | 79 | 82 | 85 | 70 | |||||||||
| Dimensions(LxWxH)(mm) | 575x400x500 | 640x480x530 | 720x480x580 | 575x400x500 | 640x480x530 | 720x480x580 | 840x520x640 | 905x520x680 | |||||||||
| Dry weight(kg) | 46 | 61 | 95 | LE:70 LH:65 | LE:85 LH:80 | LE:100 LH:95 | 126 | 165 | |||||||||
