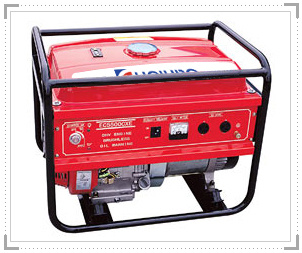

Product Description
Rated frequency: 60 (Hz)
Rated voltage: 110/220 (V)
Rated current: 50/25 (A)
Rated output power: 5.5 (KVA)
Rated rotation speed: 3600 (r/min)
DC output: 12V/8.3A(option)
Power factor: 1.0
Phase number: Single phase
Engine model: LIQ380F(E)
Engine type: Single-cylinder, 4-stroke, air-cooled,
Direct-injection, diesel engine
Noise level: 70-75 dB(A)/7m
Dimension: 680*510*540 (LxWxH)(mm)
Packing size: 700*530*570 (LxWxH)(mm)
Net weight: CX: 82 CXE: 85 (kg)
Structure model: Open-frame
Displacement: 389 (cc)
Compression ratio: 8: 1
Rated power/speed: 7.0(9.5)/3000 [KW(HP)rpm]
Starting system: Hand (Electric) starter
Rotation direction: Clockwise (view from wheel)
Fuel type: Automotive unleaded gasoline
Lube brand: SAE15W40(above CC grade)
Low oil pressure alarm system: With
Shanghai Liqiubo Industry Co., Ltd. Is a export-oriented manufacturer company specialized in production of air-cooled gasoline, diesel engine, air-cooled gasoline, diesel generators, multi-cylinder water-cooled diesel engine. Diesel generators, petrol, diesel-powered water pump unit and so on.
Since 2002, the establishment of the company, we have been persisting to perfect our products and after service, and we are greatly acknowledged by our customers. With many years of experience of this series of products, our products are getting better and the price are getting more competitive.
We are looking forward to suggestions from our old friends and also cooperation of new friends. We won't disappoint the people who trust in us.
