Noise Level:
62~64dB
Color:
as Requested
Rated Frequency:
50Hz/60Hz
Rated Output:
4.5~5kw
Rated Voltage:
as Requested
Structrure Type:
Silent Type
Engine Model:
Ym186FAG
Type:
Self-Starting Diesel Generator
Installation Method:
Portable
Stroke:
Four Stroke
Cooling Method:
Air Cooled
Output Type:
AC Single Phase or AC Three Phase
Speed:
3000/3600rpm
Excitation Mode:
Self-Excitation & Constant Voltage (AVR)

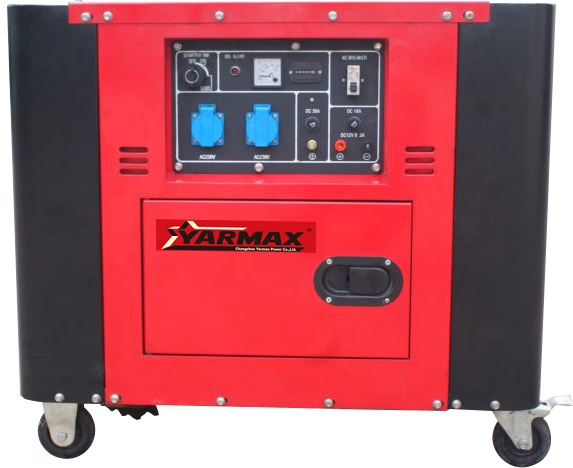

Product Description
Model
YM7000T
Rated frequency
50 60
Rated output(kVA)
4.5 5.0
Max. output(kVA)
5.0 5.5
Rated Voltage(V)
230 or as requested
Rated current (A)
19.6
Rated rotation speed(r/min)
3000 3600
Phase NO.
Single phase or Three phase
Power factor(Cos Φ)
1
Insulation Grade
B
Pole number
2
Excitation mode
Self-excitation & constant voltage (AVR)
Panel Type
General Panel
Voltage(V)
230 or as requested
Receptacle
Two receptacles
Connection pole
Without
DC12V output
Connection pole output
Overall dimension(L×W×H)mm
930×530×740
Dry weight(kg)
170
Working assorting weight
185
Noise level(7m)dB(A)
62~64dB
Structure type
Silent type
Engine Model
YM186FAG
Engine Type
Single cylinder, vertical, four-stroke, direct injection
Cylinder NO.-bore×stroke(mm)
1-86×72
Displacement(ml)
418
Rated power[KW/(r/min)]
5.7/3000
Compression ratio
19:01
Rated rotation speed(r/min)
3000
Cooling system
Air cooled
Combustion system
Direct injection
Starting system
Electric starter
Fuel type
0#(summer)-10#(winter)-35#(chillness)diesel
Lube oil brand
CD grade or SAE10W-30,15W-40
Lube capacity(L)
1.65
Starting motor capacity( V-kW)
12V 0.8kW
Charging generator capacity ( V-A)
12V 3A
Battery capacity(v-Ah)
12V 30-36Ah
Fuel consumption(g/kw.h)
≤360
Fuel tank capacity(L)
15
Continuous running time(hr)
6
Changzhou Yarmax Power Co. Ltd. China established in 2007, is a professional manufacturer and exporter that is concerned with the design , development and production of generator,water pump, engine etc. We are located in Changzhou, Jiangsu Province, China , with convenient transportation access. All of our products comply with International quality standards such as ISO9001:2000 and CE, etc.
Yarmax Power (Changzhou) Co., Ltd. is one of the leading worldwide suppliers of Air-cooled diesel engines, Gasoline engines, Diesel generators, Gasoline generators, water pumps, Air compressors, High Pressure washers and engine powered construction machines. Our factory is located in Changzhou City, Jiangsu Province, which is easily accessible with a two-hour drive from Shanghai.
As a professional genset manufacturer and facilitator, Yarmax Power keeps improving the quality of products in controlling noise, improving fuel efficiency and lowering emissions for environmental protection. Our company is in compliance with ISO9001: 2000 standards and our products have gained CE approval issued by European Community. We have got the EPA approval from the United States.
To better serve our customers, we provide complete technical support and any other information on our engine and gensets. Additionally, we offer a 12 month or 1000 working-hour warranty. This warranty covers any product deficiency caused by raw materials or any quality problem. The warranty does not cover wearing part problems or damage caused by improper operation or maintenance.
Yarmax Power is also an OEM service provider. If you have any need for engines or generator sets, please don't hesitate to contact us. We would like to establish long-term business relationships with you.
