| Prod Model: |
AMC30GF-PZ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engine: |
Dongfeng Nq100n |
| Alternator: |
Faraday Fd2c1-4 |
| Controller: |
Harsen Gu641b |
| Type: |
Open(Optional Soundproof ) |
| Prime Power: |
30kw(37.5kVA) |
| Rated Voltage: |
230/400V |
| Rated Current: |
54.1A |
| Rated Frequency: |
50 or 60Hz |
| Power Factor: |
0.8 |
| Gas Consumption: |
0.53nm3/Kw.H |
| Gas Source: |
Biogas |
| Certification: |
SGS |

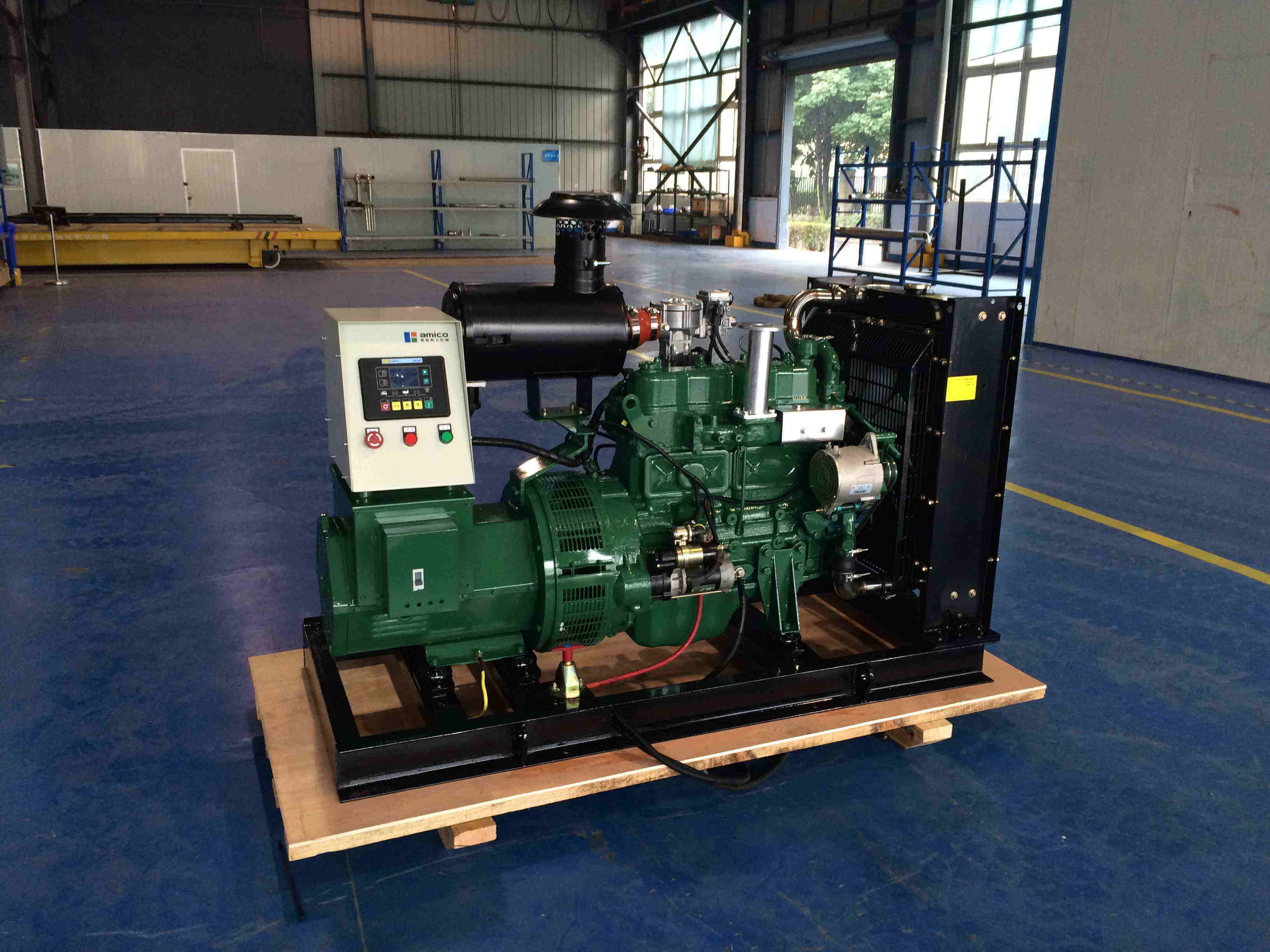

Product Description
Main Specification & Configuration
| Prime Power | 30Kw (37.5KVA) |
| Engine | Dongfeng NQ100N |
| Alternator | Faraday FD2C1-4 |
| Controller | HARSEN GU641B |
Recommended Operation Conditions
| Gas CH4 Content ≥45% |
| Gas Pressure ≥3KPa |
| Calorific Value ≥ 16MJ/M3 |
| Gas H2S Content ≤20mg/M³ |
| Gas Total Sulphur ≤460mg/M³ |
| Altitude ≤ 4,000m |
| -25ºC≤ Ambient temperature ≤ +50ºC |
Advantage & Feature
| Prompt dynamic response similar to diesel genset. |
| Excellent power generation efficiency. |
| Widely gas pressure adaptability. |
| Reliable manual control model. |
Detailed Specification & Configuration
| Genset |
| Model | AMC30GF-PZ |
| Prime Power | 30Kw(37.5KVA) |
| Rated Voltage | 230/400V |
| Rated Current | 54.1A |
| Rated Frequency | 50 or 60Hz |
| Power Factor | 0.8 |
| Gas Consumption | 0.53Nm³/Kw·h |
| Operating Weight | 780Kg |
| Overall Size(L x W X H) | 1,720 × 820 × 1,250mm |
| Engine |
| Brand | Dongfeng |
| Model | NQ100N |
| Type | 4-cylinder, 4-stroke, natural aspirated |
| Displacement | 3.759L |
| Compression Ratio | 10.5 |
| Ignition | Electric control, independent ignition |
| Fuel Control | Equivalent burn, closed-loop control |
| Speed Governing | Electric Control |
| Rated Speed | 1500rpm |
| Conversion Efficiency | 34.2% |
| Alternator |
| Brand | Faraday |
| Model | FD2C1-4 |
| Excitation Type | Brushless with AVR |
| Connection Type | 3-Phase, 4-Line |
| Conversion Efficiency | 87.5% |
| Controller |
| Brand | HARSEN |
| Model | GU641B |
| Type | Manual control |
| Others |
| Pedestal, Radiator, Air filter, Muffler, Battery & Gas Pressure Reducer are included. |
| Soundproof, Engine oil, Coolant and Output Cable are not included |
Remark: Specification subject to change without prior notice.
AMICO GAS POWER Co., Ltd. is a gas power professor in gas engine R&D, electronic control system integrating, gas genset & power unit manufacturing, gas technology training and after-sale service supplying.
AMICO is located in No. 203, North Gangtong 2ND Road, Chengdu Modern Industrial Park(North), ChengDu City, Sichuan Province, P. R. China and owns 20, 000 square meters R&D and production base. AMICO had participated in drafting & reviewing the China national standard for gas product and undertaken the China "863" project for natural gas engine R&D because it own professional R&D team and advanced automatic test system. In addition, AMICO has passed ISO9001: 2008 Quality Management System authentication and awarded with the honorary title of high-tech enterprise in Sichuan province.
AMICO serial product are independently developed and adopt with lean-burn & electronic control technology. AMICO serial product ranges from 30Kw to 2000kw and widely used in gas field, oilfield, coal mine, refuse landfill and farm for power generation & supply. Especially AMICO is the sole qualified domestic supplier of 750Kw & 1000Kw gas genset for electric drilling platform in China.
AMICO adheres to principles of customer interest first and strenuously promote the cooperation with customers & partners to achieve mutual benefit. At present, AMICO own dozens of sales and service centers in Asia, Africa and South America and has established solid cooperative relationship with PetroChina, Sinopec, CNOOC, POVSA, SHELL and other well-known domestic and foreign oil companies.
