Automatic Voltage Regulator AVR Uvr6

Name: Automatic Voltage Regulator AVR Uvr6
Brand: aboutgenerator.com
SKU: 710684115
Availability: InStock
Rating: 4.4 (121 reviews)

Price:	US $ 120-169/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Money Gram,Western Union

Contact Supplier

Fujian Yuxing Electronic Appliance Co., Ltd.

Showroom Product Company Profile

Prod Model:	UVR6
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
G.W:	0.6kg/PC

Product Description

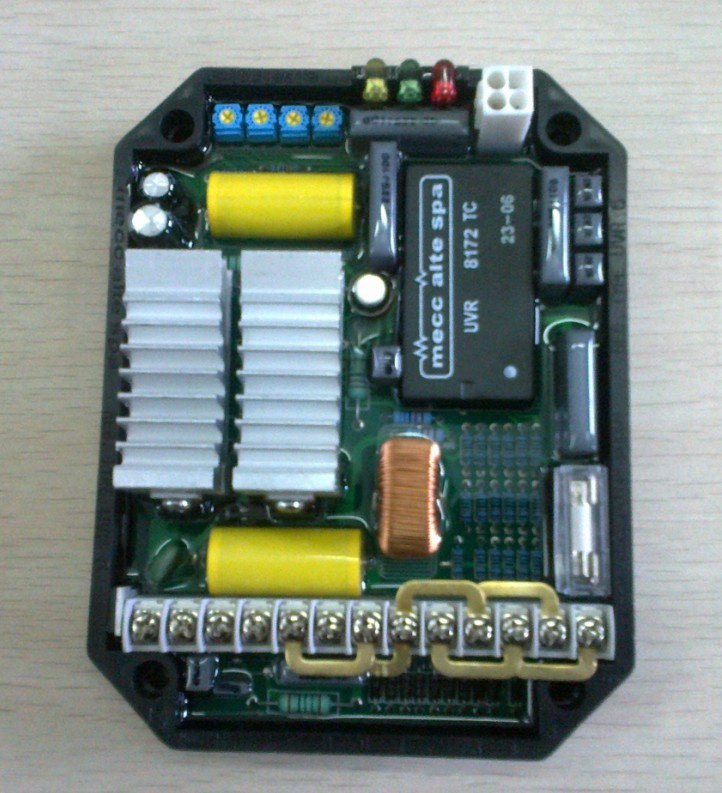

Diesel controller UVR6 AVR introduction:
The Mecc Alte UVR6 type voltage regulator is an advanced design electronic regulator that ensures excellent performance of the lternators while they are running and during starting. The regulator is equipped with a complete protection system against operation conditions that could be dangerous for the machine.
The UVR6 regulator is suitable for being used with all Mecc Alte alternators and is standard supply for power outputs above or equal to 85 KVA, both three-phase and single phase.
The components of this regulator are modern utilising solid-state integrated circuit technology. These components were chosen to guarantee maximum durability and reliability. The entire unit, also made using a hybrid circuit, is inside a box of modest dimensions that has been impregnated with resin to protect against vibrations and ingress of water.
Mecc Alte avrUVR6
Voltage Build upResidual volts at AVR terminal > 5 VAC
Power InputAC80~270V 50/60Hz
Sensing InputAC170-480V 1/3 phase 50/60Hz
Outputvoltage 80V DC
Current Continuous 6A, Intermittent 10A for 10 sec.
Volt. Regulation< ± 1% (with 4% engine governing)

Stamford: SX460, SX440 AS440, AS 480, MX341, MX321(or NUPART AVR)
Leroy Somer: R230, R438, R448, R449, R250, R450, R220
Marathon AVR: SE350
Marelli AVR: M16FA655A, M40FA640A
Mecc Alte AVR: SR7-2G(SR7), UVR6
Basler AVR: AVC 63-7, AVC 63-12, AVC 63-4, AVC63-4A
Cat. AVR: VR6
KUTAI AVR: EA06A, EA04C, EA05A, EA350, EA08A, EA15A, EA16
Brushless generator AVR: CF-8A(AVR 8A), CF-12A (GAVR 12A), CF-15A (GAVR 15A), GAVR20A
Brush/brushless generator AVR: YX2DA (10KW AVR, single and three phase); YX3DA(10KW three phase)
Brush generator AVR: 2KW AVR, 5KW AVR, 5KW Welder AVR, ST/STC AVR,

Generator automatic voltage regulator
Stamford (nupart)	Leroy Somer	Marathon	Mecc-Alte Engga	Kutai	Marelli	GAVR/CF/YH	Others
Stamford (nupart)	Leroy Somer	Basler	Mecc-Alte Engga	Kutai	Cat.	GAVR/CF/YH	Others
SX460	R230	SE350	UVR6	EA06A	M40FA640A	GAVR 8A	ST/STC gb160 gb170
SX440	R250	SE350	SR7-2G	EA04C		ACF 12A	ST/STC(Plastic case)
AS440	R438	AVC63-4	WT-2 WT-3	EA05A		GAVR 12A	2~3.5 kw avr
AS480	R448	AVC63-7	DAEWOO DGC2007	EA350	M16FA655A	AVR 15A	5~7.5 kw avr 186F
MX321	R449	AVC63-4A	DAEWOO DGC2007	EA08A	M16FA655A	GAVR 15A	5~7.5 kw welder 186F
MX341	R450	AVC63-12	KUTAI EG2000	EA16	VR6	GAVR 20A	Lanzhou KXT-2WC avr
or plain	R220	AVC63-12	KUTAI EG2000	EA15A	VR6		10KW avr YX3DA 2DA
Cummins Parts
3044196	3044195	3030256	3062322	3098693	3037359	4913742	3408326
3408324	4914090	4914091	3655944	3034572	3408328	3408329	3032733 3971994
GAC Parts
ESD5500E	ESD5550	ESD5570	ESD5111	ESD5120E	ESD5522	ESD5520	ESD5522
ESD5131	ESD5525	ESD5221	ESD5330	MSP675	MSP676	MSP677	MSP678
MSP6732C	MSP6729	MSP6731	MSP6714	MSP6719	MSP6724	M16	ADD 175 12V 24V
MSP3721	MSP6273	ADC225 12V 24V				ADC120 12V 24V
DSE parts
701AS MS	702AS MS	703	704	705	501K	710	720
5110	5120	5210	5220	EIM 630 465 12V		EIM 630 466 24V
Generator/Genset Charger
178A 186F	670	680	12~24V 5A		12~24V 3A		12/24V 6A~10A
Varistor and rectifier diode kit
Leroy Somer 330-25777			Stamford SSAYEC432			33025777 and SSAYEC432 Varistor
RSK1001	RSK2001	RSK5001	RSK6001	Stamford Varistor B		Stamford Vaistor C
MXY MXG 40-12		MXY MXG 30-12		MXY MXG 50-12		MXY MXG 25-15
MXY MXG 40-15		MXY MXG 50-15		MXY MXG 70-15		MXY MXG 100-15
MXY MXG 110-15		MXY MXG 150-15		MXY MXG 200-15		Stamford BC series 25A : rsk1001
HC 4/5 series 40A : RSK5001			HC7/LV6 series :70A RSK6001			Stamford UC series 25A rsk2001
