| Prod Model: |
CRB6013 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Inner Diameter: |
2.3622 Inches |
| Outer Diameter: |
3.5433 Inches |
| Depth: |
2.9134 Inches |
| Weight: |
0.3kg |
| Rolling Body: |
Roller Bearings |
| The Number Of Rows: |
Single |
| Outer Dimension: |
Small and Medium-Sized (',60-115mm) |
| Material: |
Bearing Steel |
| Separated: |
Separated |
| Load Direction: |
Both |
Product Description
We are specialized in the design, research and production to various non standard bearing, imported substitution bearing and special bearing, which are widely applied to aerospace, precision instruments, textile, precision lathe, port, mining, medical treatment, coal, cement, oil drilling, wind power generation, industrial robots, defense industry and other fields. A large number of our products are exported to the United States, Britain, Canada, Germany, Austria, Italy, Japan, Korea, Singapore, India, Pakistan, Thailand, Malaysia and other countries. We have got ISO9001: 2000 certificate, as it is represented in "Quality Guideline", Lirui bearing focus on comprehensive quality management, and take it as a sustained effort to improve customer satisfaction.

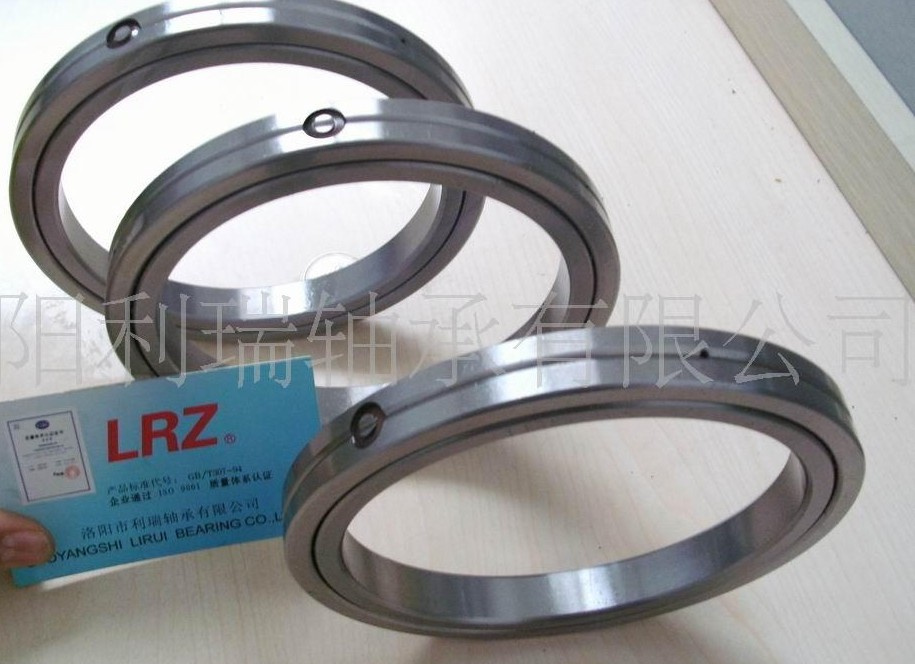

Precious cross roller bearing is mainly applied to joint and rotating parts of industrial robot, rotary worktable of machinery processing center, mechanical rotary parts, precious rotary worktable, medical instruments, measuring instruments, IC manufacturing equipment, microscope, welding stents, rotary surface grinding machines, and vertical grinding machines, etc.
Crossed cylindrical roller bearing has multiple structures along with retainer, isolation block and full roller, which has completely rich and various series. Structures with retainer and separator are suitable for parts with low friction coefficient and high speed, while full roller type is suitable for parts with low speed and heavy load. Cross cylindrical sealed roller bearing has sealed rings with special synthetic rubber on the side of the bearing, which makes it very effective for dust-proof and grease leakage
We now produce substitute imported cross roller bearings, like: IKO bearing, CRBF, CRBH, CRB, CRBC, CRBS series, THK bearing RU, RB, RE, RA, the RA-C series cross roller bearing. Structures such as the attached mounting holes, with retainer, with isolation block, full roller and double sealed type are all available.
Cylindrical roller bearing.
Cylindrical roller and its race is line contact, with great radial load capacity, that is applicable to bear heavy load and shock load, also applies to high speed rotation and axial movement, N and NU type can be able to adapt to the change of relative position between shaft and shell, caused by thermal expansion or installation error, most suitable as the free end bearing. NJ and NF type can withstand a certain degree of one-way axial load, NH and NUP type can withstand two-way axial load inner ring and outer ring separable in a certain degree, which is completely convenient handling, Due to the strong rigidity of resistance radial load, making NNU and NN type mostly used for machine tool spindle.
Main use: Medium and large motors, generators, internal combustion engines, gas turbine, machine tool spindle, speed reducer, loading and unloading handling machinery, all kinds of industrial machinery
Note: Four-row cylindrical roller bearings can withstand the big radial direction load, cannot limit the axial displacement, often used for rolling mill and other heavy machinery.
| Dimension size(mm) | Rated load | weight | Model number |
| d | D | B | radial(KN) |
| d | D | B | C | Co | Kg | IKO |
| 30 | 55 | 10 | 7.35 | 8.36 | 0.12 | CRB3010 |
| 40 | 65 | 10 | 8.33 | 10.6 | 0.16 | CRB4010 |
| 50 | 80 | 13 | 16.7 | 20.9 | 0.27 | CRB5013 |
| 60 | 90 | 13 | 18 | 24.3 | 0.3 | CRB6013 |
| 70 | 100 | 13 | 19.4 | 27.7 | 0.35 | CRB7013 |
| 80 | 120 | 16 | 30.1 | 42.1 | 0.7 | CRB8016 |
| 90 | 130 | 16 | 31.4 | 45.3 | 0.75 | CRB9016 |
| 100 | 150 | 20 | 33.1 | 50.9 | 1.45 | CRB10020 |
| 110 | 160 | 20 | 34 | 54 | 1.56 | CRB11020 |
| 120 | 180 | 25 | 66.9 | 100 | 2.62 | CRB12025 |
| 130 | 190 | 25 | 69.5 | 107 | 2.82 | CRB13025 |
| 140 | 200 | 25 | 74.8 | 121 | 2.96 | CRB14025 |
| 150 | 210 | 25 | 76.8 | 128 | 3.16 | CRB15025 |
| 230 | 30 | 100 | 156 | 5.3 | CRB15030 |
| 200 | 260 | 25 | 84.2 | 157 | 4 | CRB20025 |
| 280 | 30 | 114 | 200 | 6.7 | CRB20030 |
| 295 | 35 | 151 | 252 | 9.6 | CRB20035 |
| 250 | 310 | 25 | 69.3 | 150 | 5 | CRB25025 |
| 330 | 30 | 126 | 244 | 8.1 | CRB25030 |
| 355 | 40 | 195 | 348 | 14.8 | CRB25040 |
| 300 | 360 | 25 | 76.3 | 178 | 5.9 | CRB30025 |
| 395 | 35 | 183 | 367 | 13.4 | CRB30035 |
| 405 | 40 | 212 | 409 | 17.2 | CRB30040 |
| 400 | 480 | 35 | 156 | 370 | 14.5 | CRB40035 |
| 510 | 40 | 241 | 531 | 23.5 | CRB40040 |
| 580 | 70 | 470 | 811 | 72.4 | CRB40070 |
| 500 | 600 | 40 | 239 | 607 | 26 | CRB50040 |
| 625 | 50 | 267 | 653 | 41.7 | CRB50050 |
| 680 | 70 | 653 | 1330 | 86.1 | CRB50070 |
| 600 | 700 | 40 | 264 | 721 | 29 | CRB60040 |
| 780 | 70 | 700 | 1540 | 102 | CRB60070 |
| 870 | 120 | 1490 | 2800 | 274 | CRB600120 |
| 700 | 815 | 45 | 281 | 836 | 46 | CRB70045 |
| 880 | 70 | 766 | 1810 | 115 | CRB70070 |
| 1020 | 150 | 1980 | 3820 | 478 | CRB700150 |
| 800 | 950 | 70 | 468 | 1330 | 105 | CRB80070 |
| 1030 | 100 | 1140 | 2640 | 247 | CRB800100 |
Luoyang Lirui Bearing Co., Ltd, located in an ancient capital city Luoyang which is a great production base for bearing, is a new-high technology corporation with the integration of design, research and development, manufacturing. Our company is based on not only the development of China's bearing, but also the global perspective, and has first-class team of bearing experts and engineers, the domestic first-class CNC grinding, automatic equipment, and large-scale sophisticated equipment, all of these guarantee that our bearings have high precision and stability.
Our company has been found in 1994, since the establishment, we inherit "honest and trustworthy, the user orientated", adhere to high quality pre-sales technical support, superior product quality coupled with excellent after-sale service to serve every customer. We are specialized in the design, research and production to various non standard bearing, imported substitution bearing and special bearing, which are widely applied to aerospace, precision instruments, textile, precision lathe, port, mining, medical treatment, coal, cement, oil drilling, wind power generation, industrial robots, defense industry and other fields. A large number of our products are exported to the United States, Britain, Canada, Germany, Austria, Italy, Japan, Korea, Singapore, India, Pakistan, Thailand, Malaysia and other countries.
We have got ISO9001: 2000 certificate, as it is represented in "Quality Guideline", Lirui bearing focus on comprehensive quality management, and take it as a sustained effort to improve customer satisfaction. These requires our team including senior management take on the job training and further education. At the meantime, it is necessary to establish full assessment to ensure that this goes smoothly in this area. The company gradually forms a stable country and worldwide sales network. Each product reflects constant pursuit of the excellence of Lirui employees, and serves our customers by qualified products and business philosophy of "innovation, integrity and pragmatic, development". Creating value for customers and guarantee satisfaction to the customers are our principles, thus, we sincerely welcome friends from all over the world come to discuss, exchange and cooperation. Let us use our joint hands to create a bright future.
