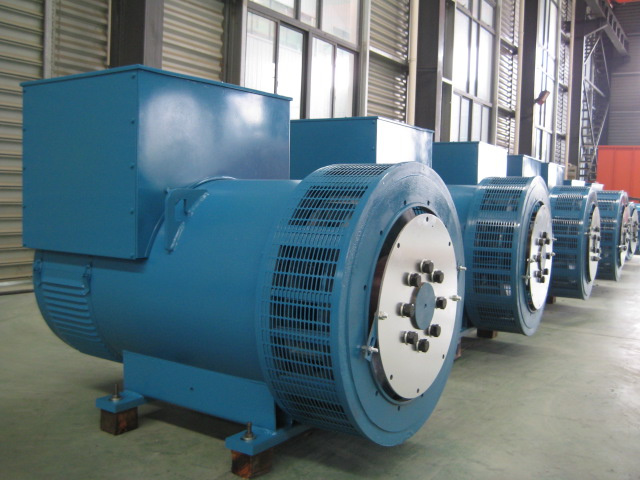

Best Quality 100% Pure Copper 120kw/150kVA Alternator (JDG274E)

Prod Model:	JDG274E
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
IP:	23
Material:	100% Pure Copper Wire
Type:	Basic Diesel Generator
Installation Method:	Fixed
Stroke:	Four Stroke
Cooling Method:	Water Cooling
Output Type:	AC Single Phase

Product Description

Best quality 100% Pure Copper 120kw/150kVA Alternator (JDG274E)

Basic Info.
Model NO.: JDG274E
Brushless: Single or Double Bearing
Export Markets: Global
Additional Info.
Trademark: Godlike
Packing: Plywood Case
Standard: IECBS 5000, VDE 0530, IEC 34, NEMA MG1-22, CSA C2
Origin: China
Production Capacity: 8000sets Per Year
Product Description
Specifications
1) Brushless Synchronous A. C. Alternator,
2) Stamford& Leroy somer Type of Electric Generator,
3) Three Phase, IP23, Class H, (single phase for option)
4) Power range: 22.5kVA-50kVA
5)Rated voltage 400V, 110-690V option

Features
1) A. V. R. (Automatic Voltage Regulator)controlled
2) 12 wire reconnectable winding;
3) 5/6 pitch windings avoid excessive neutral currents;
4) Permanent Magnet Generator(PMG) is available as an option;
5) Reliable supplier with Quality Materials, and strict Quality Controller (by QC Dept. )
6) Easily coupled with power networks or other genetator sets,
7) Balance rotor with single or two sealed ball bearings available,
8) Convenient installation and easy maintenance, easy access to terminal, rotating rectifier and coupling bolts,
9) Wide range of flange adaptor and single bearing coupling disc,

Standards&Certifications
1) GODLIKE generators are comformity to International standards of IECBS 5000, VDE 0530, IEC 34, NEMA MG1-22, CSA C22.2-100 and ASB59.
2) GODLIKE generators are Certified of CCC, TUV, EPA, SGS

Solutions
Easily coupled with Industrial&Marine, Diesel&Gasoline engines, world first-class of Cummins, Lovol, Volvo Penta, MTU, Deutz, MAN, Caterpillar, Yanmar, Kubota, Lister Petter, Doosan, etc,

Warranty:
2 years, Godlike Power DHL new parts for replacement within 3 days upon customer's complaint.

Model	50hz / 1500rpm/3 phase		60 hz/ 1800rpm/ 3 phase
	190  ~  454V		110 ~ 240V/230 ~ 690V
	KVA	KW	KVA	KW
JDG 184E	22.5	18	30	24
JDG 184F	27.5	22	35	28
JDG 184G	31.3	25	37.5	30
JDG 184H	37.5	30	46.9	37.5
JDG 184J	42.5	34	50	40
JDG 224C	42.5	34	55	44
JDG 224D	50	40	65	52
JDG 224ES	56.25	45	70	56
JDG 224E	60	48	75	60
JDG 224F	72.5	58	93	74.4
JDG 224GS	80	64	100	80
JDG 224G	85	68	103	82.4
JDG 224H	94	75	115	92
JDG 274C	100	80	125	100
JDG 274DS	120	96	146	117
JDG 274D	125	100	150	120
JDG 274ES	140	112	178	142
JDG 274E	150	120	187.5	150
JDG 274F	160	128	206	165
JDG 274G	190	152	225	180
JDG 274H	200	160	255	204
JDG 274J	230	184	300	240
JDG 274K	250	200	312.5	250
JDG 314C	250	200	320	256
JDG 314DS	275	220	344	275
JDG 314D	300	240	375	300
JDG314ESS	312.5	250	387.5	310
JDG 314ES	325	260	419	335
JDG 314E	350	280	440	352
JDG 314FS	380	304	475	380
JDG 314F	400	320	500	400
JDG 354C	450	360	594	475
JDG 354D	500	400	644	515
JDG 354ES	562.5	450	703	562.5
JDG 354E	600	480	750	600
JDG 354FS	625	500	738	590
JDG 354F	670	536	825	660
JDG 354G	700	560	862.5	690
JDG 404B	750	600	938	750
JDG 404C	800	640	1000	800
JDG 404D	910	728	1138	910
JDG 404E	1000	800	1250	1000
JDG 404F	1125	900	1390	1112
JDG 404G	1250	1000	1513	1210
