| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Fuel: |
H2 & O2 |
| Colour: |
Blue |
| Gas Source: |
Electroysis Water |
Product Description

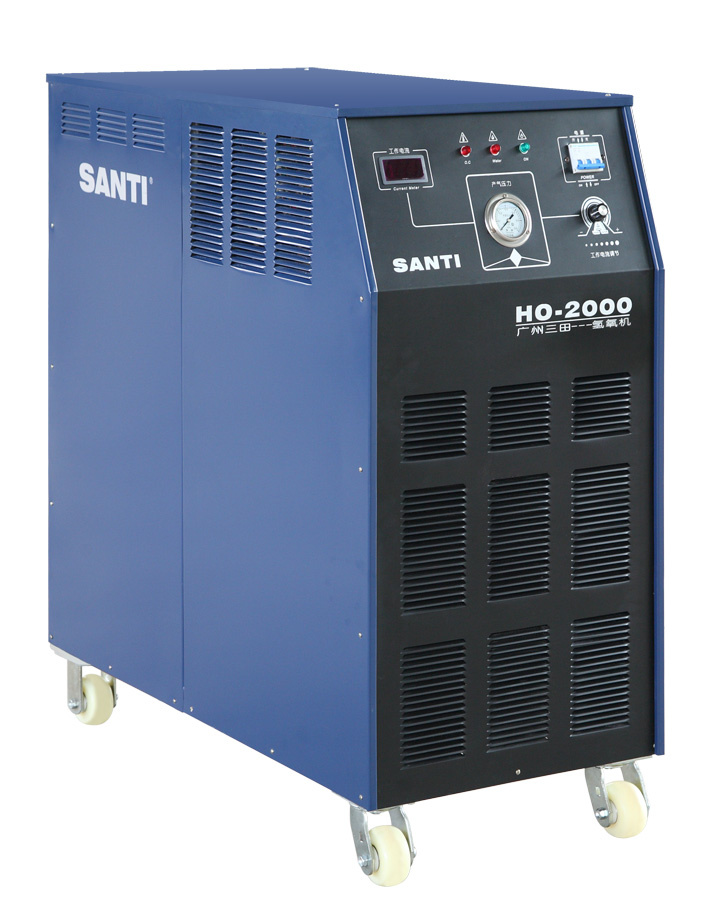

Hydrogen Oxygen Generator
Technology Theory
Oxy-hydrogen machine is a high-tech product in the world. It adopts water electrolysis technology to decompose hydrogen and oxygen from water under electricity, this machine uses hydrogen as the fuel and oxygen as the combustion-supporting gas in polishing, brazing, cutting, welding, furnaces; Oxy-hydrogen machine is a very promising and practical equipment, friendly to environment in the meantime.
Multi-purposes
This machine might turn water into flame which is like that produced by oxy-acetylene, oxy-propane and oxy-LPG and can do same work like cutting carbon iron, metal welding, processing headgears, jewelries, gold, platinum, silver, glassware.
Safe energy
Oxy-hydrogen is a very safe fuel, no poison, no harming smell to human body. Hydrogen has the smallest density among all gases, once leaking it will escape to the air quickly and not as dangerous as LPG, acetylene etc.
Easily procured energy sources
Oxy-hydrogen fuel is easily procured as we can find water and electricity easily. It can save much energy other than using acetylene, propane, LPG, etc., for example, each cubic oxy-hydrogen gas consumes 0.5 liter water and 3.5 KW electricity which is cheaper cost than using acetylene.
Working features compared with tradtional oxy-fuels
As oxy-hydrogen flame body is slimmer than other flame bodies, it has advantages like narrower slit, focused firepower, little heat affection area, high heat value, faster preheating, better cutting quality. The following is the workpiece cut by it:
When welding, the welding surface is glossy, if filling a little gasoline or alcohol, the welding piece will be oxidation resistant.
Our oxy-hydrogen machines can work without stop and at least 5 years lifetime.
To avoid the after-sale cost, we we use good parts so no problem happened during the operation process. And we also provide detailed instructions to our customers, thus they can use the machine easily.
Our Hydrogen Oxygen Generators can be used in below fields
1. Cutting metals by oxygen flame
2. Gas welding and flame spray painting
3. Thermal processing of jewelry, especially good for platinum as oxy-hydrogen flame contains no carbon
4. Fine cutting, fusion, repair and local thermal processing of delicate metal parts.
5. Direct fusion of fine copper wire and enameled wire
6. Be applicable to continuous casting templet in the steel factory
7. Removals of carbon deposit in the combustion chamber of internal combustion engine such as cars
8. LED chip integration
9. The thermal processing of glass and quartz glass
10. Surface polishing of organic glass
11. Computer wire peeling
12. Burn with other fuels together for boilers, cooking stoves, melting metals.
Main features:
1. Energy Saving
2. Environmental Friendly
3. Excellent Performance-----Superiority
4. Low Cost----High Efficiency
5. Safe--------Reliable
6. Simple Screen----Humanistic
7. Wide Adaptability
8. Handiness and Agility_Dynamic
|
Parameter |
Model |
|
HO-2000 |
HO-4000 |
HO-6000 |
HO-8000 |
|
INPUT VOLTAGE(V) |
(3 Phase) AC380 ± 10% 50/60HZ |
|
RATED CAPACITY(KVA) |
7 |
17 |
24 |
31 |
|
RATED OUTPUT POWER(KW) |
6.4 |
13 |
21 |
25.6 |
|
RATED OUTPUT CURRENT(A) |
160 |
250 |
370 |
460 |
|
WORKING MIDIUM |
Distilled Water or Deionized Water |
|
AMBIENT TEMPERATURE() |
0~40 |
|
RELATIVE HUMIDITY(%) |
≤ 90 |
|
OPERATION GAS PRESSURE(MPa) |
≤ 0.18 |
|
RATED OUTPUT GAS(L/h) |
2000 |
4000 |
6000 |
8000 |
|
CONSUMPTION RATE OF WATER(L/h) |
≤ 1.1 |
≤ 2.2 |
≤ 3.3 |
≤ 4.4 |
|
MAX FLAME TEMPERATURE() |
3000 |
|
MAX CUTTING THICKNESS(mm) |
50 |
80-90 |
110-120 |
140-150 |
|
MAX WELDING THICKNESS(mm) |
3 |
5 |
5 |
5 |
|
OPERATION METHOD |
Continuous |
|
POWER SUPPLY SAFEGUARD GRADE |
IP21S |
|
WEIGHT(kg) |
159 |
247 |
320 |
390 |
|
DIMENSIONS(mm) |
760*450*800 |
880*550*1000 |
1150*630*1050 |
1150*700*1200 |
Guangzhou Santi Electro-mechanical Equipment Co., Ltd, as one of the main suppliers of inverter welding and cutting machines in China, We are specializing in Inverter Welding & Plasma Cutting Machines for 10 years. With high technology & development capacity, our product range covers inverter MMA, TIG, MIG/MAG, PULSE TIG, AC/DC TIG, PLASMA CUTTING digital controlled flames series. Quality is reliable and price is reasonable.
Our new machine Hydrogen Oxygen Generator consumes water and electricity and electrolyze water into H2 and O2 as the fuel. This kind of product not only save energy but also protect environment. It can be used for welding, cutting, glass processing and jewelry processing.
Generally speaking, Guangzhou Santi Electro-mechanical Equipment Co., Ltd has been endeavoring to make perfect products for customers. Welcome to cooperate with Santi.
