| Price: | US $ 45-60kg |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 100kg |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | YH-0611 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: | Black |
| MSDS: | Available |
| Sample: | Available |
| Coa: | Available |
| Shape: | Cylinder |
| Sorbent: | Molecular Sieves |
| Desiccant: | Chemical Desiccant |
| Kind: | Carbon Molecular Sieve |
Carbon molecular sieve is a new type non polar adsorbent,could adsorb oxygen molecules in the air under normal temperature and pressure swing.Thus,it
could adsorb PSA nitrogen.The ability of air separating are decided by different diffusion speed,or different adsorption
ability of various gas in the carbon molecular sieve porous, or this two effect works at the same time,carbon molecular
sieve nitrogen-making is based on this performance.
Carbon molecular sieve is the first choice for PSA nitrogen air separation adsorbent in engineering industry.This nitrogen are widely used
in chemical industry,oil gas industry,electrics industry,food industry, coal industry,pharmaceutical industry,cable industry, metal heat treatment,transport and storage
area etc.
Physical properties
Diameter of the CMS granule: 1.7-1.8mm
Period of adsorption: 120S
Bulk density: 680-700g/L
Compressive strength: ≥ 95N/ granule
Technical Data:
| Type | Adsorbent pressure | Nitrogen purity | Nitrogen quantity | N2/Air |
| (MPa) | (N2%) | (NM3/h.t) | (%) | |
| CMS-200 | 0.8 | 99.99 | 70 | 21 |
| 99.9 | 140 | 27 | ||
| 99.5 | 200 | 36 | ||
| 99 | 260 | 41 | ||
| 98 | 330 | 48 | ||
| CMS-220 | 0.8 | 99.99 | 90 | 25 |
| 99.9 | 160 | 34 | ||
| 99.5 | 220 | 43 | ||
| 99 | 290 | 48 | ||
| 98 | 360 | 54 | ||
| CMS-240 | 0.8 | 99.99 | 100 | 26 |
| 99.9 | 175 | 35 | ||
| 99.5 | 240 | 44 | ||
| 99 | 300 | 49 | ||
| 98 | 370 | 55 |
Typical Application:

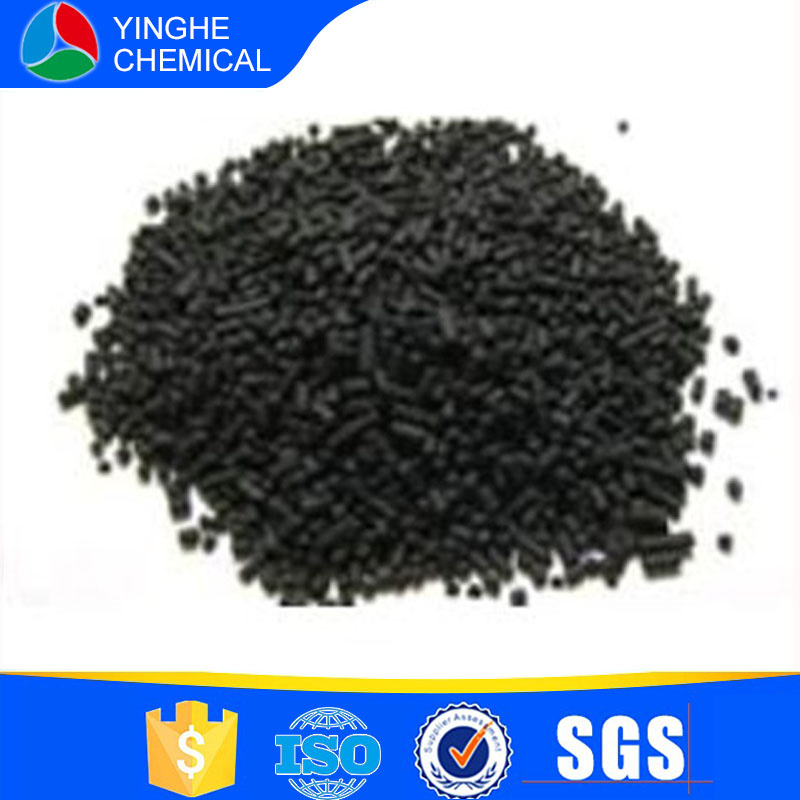

CMS takes the appearance of cylindrical black solid, contains countless 4 angstrom fine pores, it can be used to separate air into nitrogen and oxygen .In industry, CMS can concentrate nitrogen from air with PSA systems. Our CMS products have the character of large nitrogen yield capacity; high nitrogen recovery. It can meet the requirement of all types of PSA nitrogen systems.
The carbon molecular sieve is widely applied in petroleum chemical industry, the heat treatment of metal, the electronic manufacture and food preservation industries.
