| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cooling Method: |
Air Cooled |
| Stroke: |
Four Stroke |
| Installation Method: |
Portable |
| Type: |
Basic Diesel Generator |
| Output Type: |
AC Single Phase |

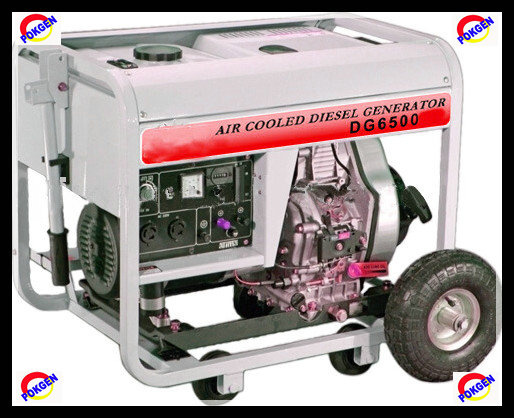

Product Description
1. CE approved, powered by POK advanced air-cooled diesel engine.
2. Noise-reducing enclosure, made of high-efficient noise-proof material.
3. Ideal for home emergency use or as standby power supply.
4. Large fuel tank, ensuring hours of continuous output.
5. Advanced direct fuel injection system.
6. Large silent muffler & air-cleaner, reducing exhaust and intake noise.
7. A variety of specially-designed control panels available for different markets.
|
Model |
POK6700T |
|
|
Rated frequency (Hz) |
50 |
60 |
|
|
Rated voltage (V) |
220, 230, 240, 220/110, 230/115, 240/120 |
|
|
|
|
Rated output power (KVA) |
4.6 |
5.0 |
|
|
Rated rotation speed (rpm) |
3000 |
3600 |
|
|
DC output |
12V, 7A |
|
|
Power factor cosφ |
1 |
|
|
Phase number |
Single phase |
|
|
Excitation mode |
Self-excitation Brushless |
|
|
|
|
Noise level dB(A)@ 7m (zero load - full load) |
70-74 |
|
|
|
|
Overall dimension [mm(in)](L× W× H) |
920× 520× 700 |
|
|
36.22× 20.47× 27.56 |
|
|
Net weight [kg(lbs)] |
140 (308) |
|
|
Structure model |
Low noise type with enclosure |
|
|
Connection mode |
Single bearing, rotor drive shaft, rigid coupling |
|
|
Engine model |
POK186FAE |
|
|
Engine type |
1-cylinder, 4-stroke, air-cooled, direct injection, diesel engine |
|
|
Displacement [cm³ (Cu-in)] |
406 (24.78) |
|
|
Compression ratio |
19: 01 |
|
|
Rated power [KW(Hp)/rpm] |
6.3 (8.6)/3600 |
|
|
Starting system |
Electric starting |
|
|
Rotation direction (view from flywheel) |
Clockwise |
|
|
Fuel type |
0 (sumber), 10 (winter) diesel oil |
|
|
Lube |
SAE10W30 (above CC grade) |
|
|
Low oil pressure alarm system |
With |
