| Prod Model: |
Biogas Generator |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
500kw CE Standard Biogas Electric Generator |
| Biogas Generator Applied Voltage: |
110-480V,6.3kv,10kv |
| Biogas Generator Frequency: |
50/60Hz |
| Biogas Generator Size: |
6200X2100X2800mm |
| Biogas Generator Weight: |
12500kg |
| Speed: |
1000/1500rpm |
| Exciting Mode: |
Brussless |
| Biogas Generator Warranty: |
12 Months |
| Installation Abroad: |
Yes, Guide Installation |
| Biogas Generator Byproduct: |
Hot Water / Steam |
| Gas Source: |
Biogas |
Product Description

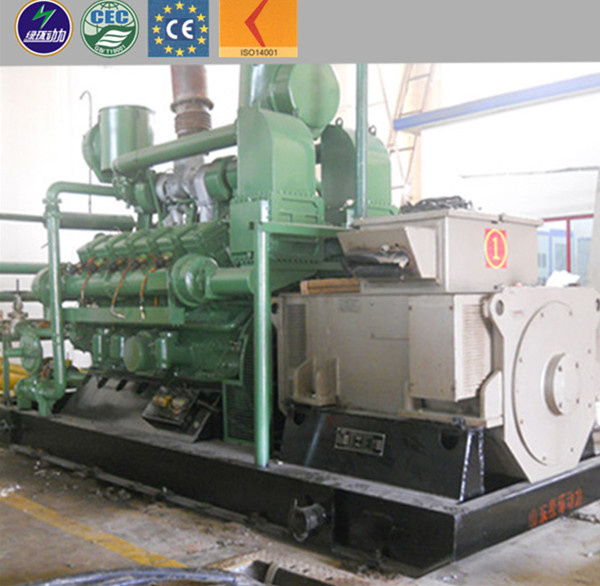

500kw CE standard biogas electric generator
Our generator production range:
Biogas generator (10-600kw),
Biomass generator (10-600KW),
National gas generator (10-600 kw),
Syngas generator (10-600 kw),
Coal gas generator (10-600kw),
Diesel generator (400-1000kw),
Other power range can be customized
Biogas generator specification:
Rated Power/continuous power: 600KW/500kw
Power factor: 0.8
Rated Voltage and Rated Frequency: 400V/230V, 50/60HZ
Voltage Stabilized Regulation: ≤ ± 1.5%
Frequency Fluctuation Ratio: ≤ ± 1%
Insulation Class: H
Fuel: Biogas (generated/made from: City garbage, sludge form sewage treatment plants, human excrement & animal husbandry, crop straws and other plants)
Biogas generator required gas condition:
Within 1meter from gas intake valve of generator
1. Gas temperature ≤ 40ºC
2. Pressure 3-20kpa, pressure changing rate ≤ 1kpa/min
3. H2S ≤ 200mg/Nm3
4. NH3 ≤ 20mg/Nm3
5. CH4 content ≥ 40%, changing rage ≤ 2%/min
6. Tar Content ≤ 20 mg/Nm3
7. Impurity particle size ≤ 5μm, impurity content ≤ 30mg/Nm3
Moisture content ≤ 40g/Nm3
Biogas Generator supply details:
Ignition system:We adopt ignition system of magneto which produced by American ALTRONIC company,including:magneto,high-tension coil,sparking plug.
Starting system: DC24V electric motor,12v190 adopt ST710 of direct-current.
Pressure charging system:Pulse Mixed-flow supercharger, compression ration is 1:8,meet engine's requirement for gas-flow rate.
Speed regulating system: EGS gas controller of American WOODWARD Company.
Cutting - edge of our biogas generator
1.Pure copper water tank for best cooling effect
2.Famous component brand to ensure overall quality
3.Expansion fitting combined with shrinking fitting give high tightness to the system4.Safety guarantee form electromagnetic valve as well as back-fire relief valve
5.Residual heat CHP recycle system available for choice.
Optional device for noise absorbing-- Silent canopy:
It is environment friendly product. It adopts advanced noise reduction technique and is made of new type sound absorbing materials, Suitable to installation in narrow place and place with strict demand for noise, like: factory, school,hotel, restaurant and residential area,etc.
Features of generator silent canopy:
1.Regular low noise control within 75dB(A) ( at 7 meters), super low noise with in 70 dB(A)(at 7 meters)
2. Double layers bottom frame with shock absorbing device.The oil tank, battery and muffler are assembled together. Easy to deliver and install.
3.Glass window and emergency button to make it easier to operate and inspect the working situation of generator.
Other Specification
Payment: TT(30%+70%), TT30%+LC 70%, LC%
Installation service provided if you need
Inspection:100% inspection before shipment in person or third party
Service form us:
1. Installation and maintaining service abroad
2. Best sale service for machine using time
3.CE, ISO14001:2004 certificate
4.Turnkey project with CHP/CCHP system and recovery system of exhaust heat.
5. Needed other service also available form our company.
biogas generator parameter:
Model Number | LHBG10-600 |
| Brand Name | Lvhuan |
| Rated Power | 10-600 KW |
| Rated Speed | 1500/1000 rpm |
| Rated Frequency | 50/60 Hz |
| Rated Voltage | 400/230V |
| Applied voltage | 380V/220V |
| Phase | AC 3 phase 4 wire |
| Starting system | 24V DC electric motor |
| Cooling method | water cooler |
| Lubricant method | passive and splash |
| Isolation class | H |
| Protection | IP23 |
| Power Factor | 0.8 lagging |
| Exciting method | Brush less |
| Voltage Stability | ≤±2% |
| Voltage Transient | ≤±10% |
| Voltage Stable time | ≤1 s |
| Generator engine specification: |
| Engine capacity | 1.81-71.451L |
| Cylinder Diameter | 100-190mm |
| Range | 115-210mm |
| Heat consumption | ≤9.8mj/kw.h |
| Oil consumption | ≤1.63g/kw.h |
Shandong Lvhuan Power Equipment Co., Ltd. is a manufacturer which specially produces internal-combustion gas engine generator sets and gas engines, with registered capital of more than RMB10 million, annual turnover of RMB100 million, over 200 staff, beautiful scenery and convenient transportation. Our factory mainly specializes in the design, research, production, sale, installation and technical service of gas generator sets and diesel generator sets. Our company has strong specialty, powerful technical force, a complete production plant, advanced processing technology, mature inspection method and a strict test system.
Our products include 105, 135 and 190 series base engines. The output power ranges from 10kw to 500kw. The gensets can be used for biogas, natural gas, oil associated gas, coal mine gas and mash gas produced by burying rubbish and sewage disposal.
We manage our company by ISO9001 system strictly. Gas engines and alternators are environment-friendly products.
Our philosophy is "Only pay attention to supplying stronger power to you". More importantly, combining with our continuous technological innovation and hard work, we believe that you will choose our company and keep a long-term business relationship with us!
