| Prod Model: |
GDC1000*S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engine: |
Cummins Brand, Perkins, Deutz Is Optional |
| Alternator: |
Stamford, Marathon, Engga |
| Material: |
100% Famous Material |
| Controller: |
Dse, Smartgen Is Optional |
| Type: |
Micro-Computer Control Automatic Diesel Generator |
| Installation Method: |
Fixed |
| Stroke: |
Four Stroke |
| Cooling Method: |
Water Cooling |
| Output Type: |
AC Three Phase |
Product Description

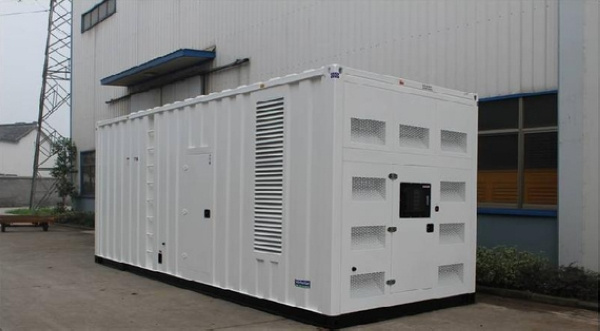

CE,ISO approved Cummins Conatiner 800kW/1000kVA Power Generator(GDC1000*S)
Specifications
1) Power range: 1000kVA /800kw
2) Brushless Synchronous A. C. Alternator,
3) Stamford& Leroy somer Type of Electric Generator,
4) Three Phase optional, IP23, Class H,
5) Rated voltage 400V, 110-690V option
1, HGM6110 control panel
2, Using microprocessor as a core, graphics LCD with big screen & back light;
3, Control protection: Manual start/stop, load transfer and alarming of generator;
4, Display of generator cumulated electricity energy;
5, Security password - protected programming levels;
6, Several crank success conditions are opitional;
7, Builtin speed/ frequency detecting units can accurately judge the states such as crank success and over speed;
8, Power supply range is wide, accommodating to different starting battery voltage environment;
9, All parameters use digital modulation, abandoning analog modulation using conventional electronic potentiometer, reliability and stability are increased;
10, Built-in watch dog can never be dead halt, ensuring smooth program execution;
11, Modular configuration design, inserted type connection terminal, flush type installation, compact structure, easy installation.
Warranty:
12 months or 1000 running hours from shipment date. If the quality problem arise during the warranty period, and verified the problem is caused by our genset-body instead of external or natural reasons. (Refer to all kinds of natural disaster, shipping, loading, unloading, wrong-operation, etc), we will supply the relevant spare parts free of charge for maintenance; After the warranty period, we can supply the required spare parts for you under cost prices
Our service quality assurance:
1)Before-sale Service: We provide detailed product technical parameters for equipment choosing and system designing
2)Service quality assurance: Our sale staffs are all experience and professional, who can provide the most proper system design and optimized equipment for the customers.
3)After sale maintenance service: We create files for end user and provide them follow-up service, regular return visit and permanent maintenance.
| Model: | GDC1000*S |
| Prime Power: | 800KW / 1000KVA |
| Standby Power: | 880KW / 1100KVA |
| Frequency: | 50HZ |
| Voltage: | 400/230V |
| Phase: | 3 Phase |
| P.F(COS¢): | 0.8 |
| Fuel: | Diesel |
| Rated Current: | 1440A |
| Start Method: | 24V DC Start Battery |
| Accessory: | Battery, wire, exhaust pipe, muffler |
| Altitude: | ≤1000m |
| Engine Specifications |
| Brand and Model: | Perkins 4008-TAG2A |
| Aspiration: | Turbocharged |
| Cylinder Arrangement: | 8 in line |
| Displacement: | 30.6L |
| Bore and Stroke: | 160×190 mm |
| Compression Ratio: | 13.6:1 |
| Rated RPM: | 1500rpm |
| Maximum Output Power: | 947KW |
| Governor Type: | Electronic |
| 100% Load Fuel Consumption: | 214 g/Kw.h |
| Total Lubrication Capacity: | 153.0L |
| Total Coolant Capacity: | 143.0L |
| Cooling System: | Forced water cooling cycle |
| Alternator Specifications |
| Manufacturer: | Mecc Alte Alternator (Haimen) Ltd |
| Model: | ECO43-1LN/4 |
| Rated Capacity: | 1100KVA |
| Winding: | 100% Copper Wire |
| Frequency: | 50HZ |
| Speed: | 1500 RPM |
| Connecting Type: | 3 Phase and 4 Wires, "Y" type connecting |
| Power Factor: | 0.8 |
| Protection Grade: | IP23 |
| Alternator Warranty: | 2 Year No Time Limited |
| Exciter Type: | Brushless, self-exciting, with AVR |
| Insulation Class, Temperature Rise: | H/H |
| Voltage Regulation: | ≥±5% |
| Control System Specifications |
| Manufacturer: | DEEP SEA ELECTRONICS PLC (UK) |
| Model: | DSE6020 |
| Type: | AMF Automatic Operation |
| Operation: | Automatic Start and Auto Mains (Utility) Failure Control |
| Alarm Protect: | Engine pre-heat, Current monitoring, Comprehensive
Shutdown, Charge Failure |
| Size and Weight |
| Open Type Overall Size: | 4657mm*2064mm*2410mm |
| Weight: | 7320KG |
| Soundproof Type Overall Size: | 20' GP Container |
| Weight: | 9820KG |
