| Prod Model: |
Kingkar10000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Kingkar13000 |
| Input Power: |
3 Phase 380 V (50-60) Hz |
| Max.Gas Output(Lph): |
13000L/H |
| Working Current(a): |
500 |
| Water Consumption(L/H): |
7.6 |
| Rated Capacity: |
44kVA |
| Flame Temperature: |
800-3200 Adjustable |
| Working Time: |
Continuous |
| Appearance Size(L*W*H)Mm: |
1400*880*1880 |
| Weight(Kg): |
620 |
| Gas Source: |
Water and Electricity |
Product Description

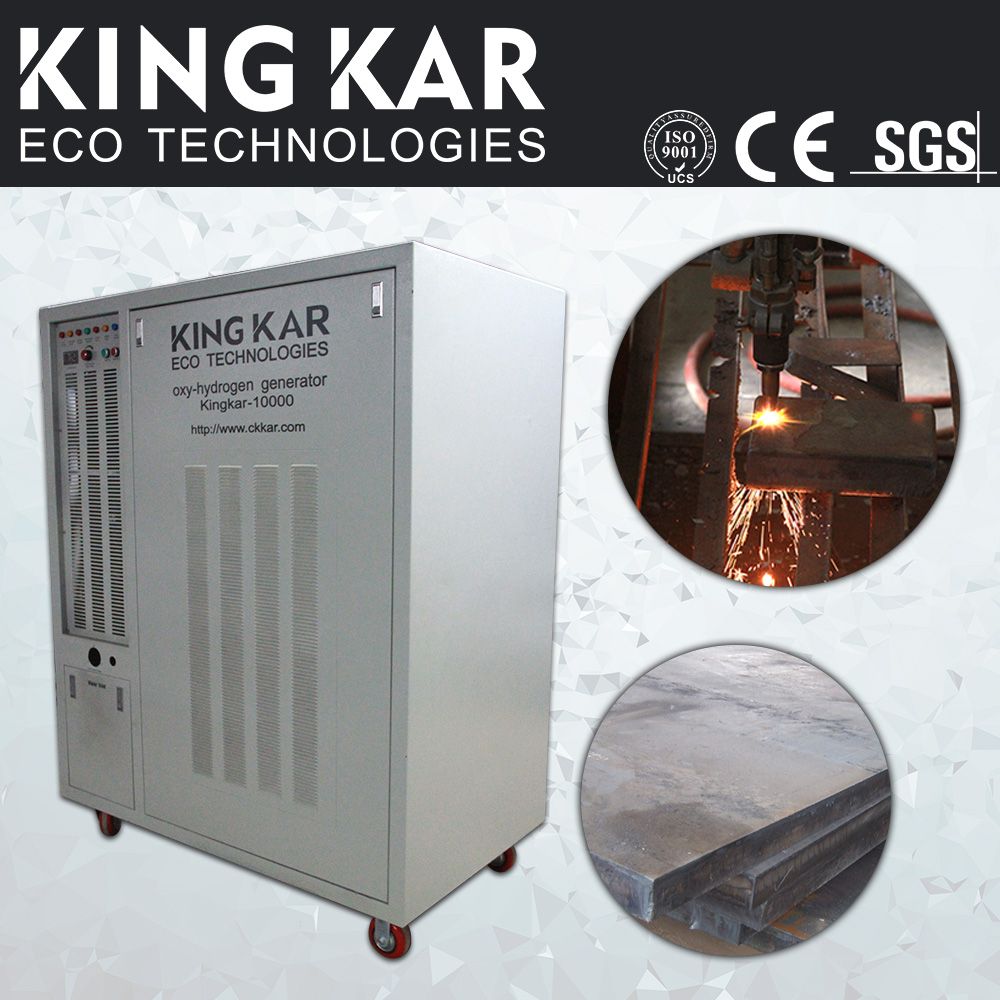

Oxy-hydrogen generator source:
Electricity flows to the Adjustable Transformer Controller; The alternating current then goes into the Commutator, and transforms into direct current.
The direct current connects to the anode "+", and cathode "-" in the electrolytic cell, to electrolyze water into pure hydrogen and oxygen.
As the Oxyhydrogen gas passes through the filter and pressure detector, the flame device (with antibackfire safety valve) ignites to a temperature between 800 and 3200 degrees centigrade.
It can be used for precision cutting processing equipment, giving results that are economical, reliable, safe, and environmental.
Features:
1. Energy Saving: Get enough H2 and O2 mixture by electrolysis of water. HHO mixture can use for heating, welding and cutting.
2. Environment friendly: The combustion product of HHO flame is water, no pollution.
3. Excellent performance: HHO flame is featured as high burning rate, firmness, focusing and strong penetration.
4. Low cost: Just need water and electricity.
5. Safe and reliable: Designed with protection for over-voltage, over-current and over-heat.
6. Simple in operation: Completely control the machine just by one button on the panel.
7. Wide adaptability: Can be used in any field that needs flame for processing.
8. Movable.
Technical Data Sheet
| Model | Kingkar-3000 | Kingkar-5000 | Kingkar-7000 | Kingkar-10000 |
| Voltage(V) | 380 ±10%,50/60Hz,three phase |
| Rated capacity(KVA) | 9 | 15 | 22 | 31 |
| Working pressure(Mpa) | ≤0.2 |
| Relative humidity(%) | ≤90 |
| Rated gas output(L/H) | 3000±10% | 5000±10% | 7000±10% | 10000±10% |
| Water consumption(L/H) | 1.6 | 2.7 | 3.8 | 5.8 |
| Maximum Cutting Thickness(mm) | 110 | 220 | 310 | 420 |
| Effective perforated thickness(mm) | 40 | 60 | 70 | 90 |
| Cooling way | Air cooling |
| Insulation class | F |
| power protection grade | IP2S |
| Flame temperature(T) | 800-3200 adjustable |
| Working medium | Filtered water or deionized water or soft water |
| Working | continuous |
| environment temperature(T) | 0-40 |
| Dimension(L×W×H)mm | 1020*770*1270 | 1250*830*1720 | 1300*930*1820 | 1500*930*1940 |
| Weight(KG) | 293 | 567 | 653 | 894 |
KingKar provides green energy solutions. We are specialized in Oxy-Hydrogen Generator, which changes soft water into a clean burning fuel that can be used to replace traditional gas fuels. We offer this safe, clean and pollution-free new source of green energy for mankind. Our development concept is based on creating a cleaner living environment around the world and promoting the use of sustainable energy sources.
KingKar Oxy-hydrogen generator for boiler only consumes water
And electricity to create oxy-hydrogen gas which feeds into to the combustion chamber for complete burning. It increases the combustion efficiency of the existing fuel etc. There is no pollution, no harmful gases or other chemical additives.
Our machine content: Oxy-hydrogen generator for boiler, Oxy-hydrogen used in industrial furnace, Oxy-hydrogen used in medical care, industrial And household wastes incinerator, Oxy-hydrogen used in generator, Oxy-hydrogen used in clean coal combustion technology, Oxy-hydrogen used in pharmaceutical industry and etc
