| Prod Model: |
ZY200GFT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Gas Source: |
Natural Gas |
Product Description

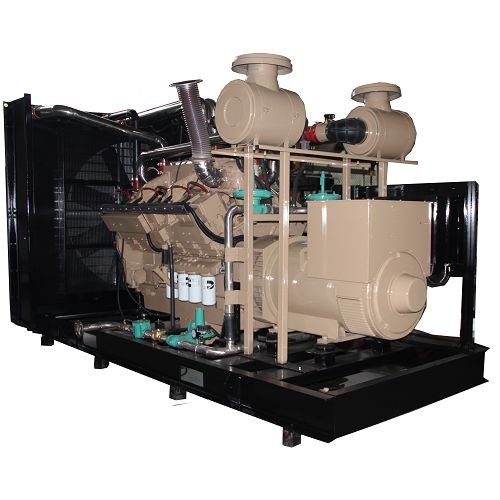

Generating set general Model ZY200GFT
Structure integral
Exciting method AVR Brushless
Rated Power (kW) 200
Rated Current(A) 360
Rated Voltage(V) 400/230
Rated Frequency(Hz) 50
Rated Power Factor 0.8 LAG
No load voltage setting range 95%-105%
Steady state voltage regulation rate ≤ ± 1%
Transient state voltage regulation rate ≤ -15%_+20%
Voltage fluctuation rate ≤ 3s
Steady state frequency regulation rate ≤ ± 0.5%
Transient state frequency regulation rate ≤ ± 10%
Frequency stabilization time ≤ 5s
Line-voltage waveform sinusoidal distortion rate ≤ 2.5%
Gas Engine Model ND119D20TL
Type V type 4 stroke, electric control ignition, pre-mixed lean burn, turbocharged after cooled
Cylinder number 6
Bore X Stroke (mm) 132× 145
Total displacement (L) 11.9
Rated Power (kW) 216
Rated Speed (r/min) 1500/1800
Speed Regulation Mode Electrical
Starting Mode Electrical
Fuel type Natural gas
Overall dimension (L x W x H)(mm) 2650× 1460× 1880
Net weight (kg) 2250
Wincom Industrial Co., Limited. Established in 1985, covers an area of 28, 000 square meters, 188 engineers and 290 workers. We produce 8kw to 2000kw diesel generator, gas generator and brushless alternator. The generators are equipped with CUMMINS, Volvo, DEUTZ brand engine and Stamford, Marathon and our own alternators. We have CE certificate and export to over 30countries around the world now
We have produced generators for nealy 30years old. The annual prodution capacity is more than 26, 000sets now. "ZY is our brand. It enjoys superior quality and professtional test. The global service is 18months. "ZY" brand generators are warmly welcomed by the customers.
We wish to establish long term friendly business relations with cutomers all over the world. We warmly welcome all frends and customers to visit our company.
