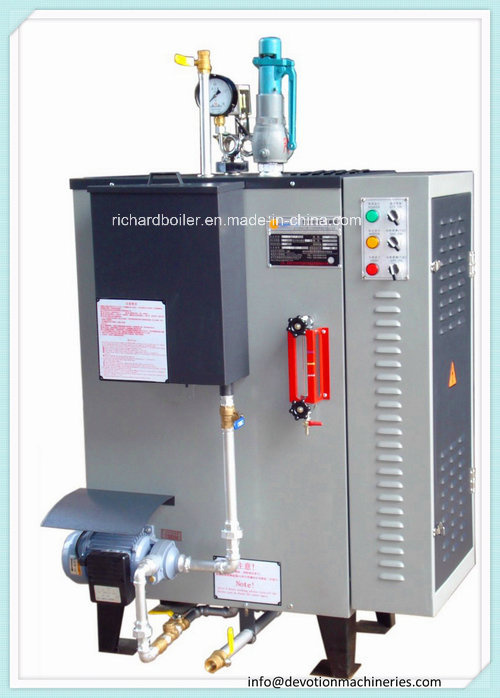

Capacity:
48kw
Steam Evaporation:
64 Kg/H
Rated Pressure:
0.7 MPa (7 Bar or 100 Psi)
Boiler Structure:
Vertical
Function:
Steam Boilers
Fuel:
Electric Heating
Installation:
Packaged Boiler
Media:
Steam
Water Circulation:
Natural Circulation
Drum Placement:
Vertical Boiler
Pressure:
Low Pressure
Manufacturing Level:
A
Structure:
Electric Heating Elements
Burning Style:
Electricity Heating
Usage:
Industrial and Commercial
Product Description
Boiler Applications -providing steam for factory process; -providing steam for commercial applications; -recommendation: for those areas where electricity cost is cheap;
Product Features -clean and high efficiency up to 99%; -competitive prices and less initial investment for boiler house; -control panel with PLC and touch screen with parameters setting function, fully automatic operation; -fine quality and long life-span electric heating elements; -multi-level protections
Technical data
Model
LDR0.012
LDR0.016
LDR0.024
LDR0.032
LDR0.05
LDR0.064
LDR0.072
LDR0.1
LDR0.15
Perfor-mance
Rated Evaporationg(kg/h)
12
16
24
32
50
64
72
100
150
Volume(kw)
9
12
18
24
36
48
54
72
108
Rated steam pressure(Mpa)
0.4
0.4
0.4
0.4
0.7
0.7
0.7
0.7
0.7
Rated steam temperature(ºC)
152
152
152
152
170
170
170
170
170
Thermal efficiency of boilers(%)
≥98
≥98
≥98
≥98
≥98
≥98
≥98
≥98
≥98
Adaptation of fuel
Electric
connect or outlet
Inlet valve calibert
G1/2"
G1/2"
G1/2"
G1/2"
G1/2"
G1/2"
G1/2"
G1/2"
G1/2"
Steam outlett(mm)
G1/2"
G1/2"
G1/2"
G1/2"
G1/2"
G1/2"
G3/4"
G3/4"
G3/4"
Blow-offvalve caliber(mm)
25
25
25
25
25
25
25
25
25
Safety valve calibert
G1/2"
G1/2"
G1/2"
G1/2"
G1/2"
G11/2"
G11/2"
G11/2"
G11/2"
Specifi-cation
Equipment weight(kg)
122
122
138
138
180
180
205
205
205
length(mm)
610
610
610
610
855
855
855
855
855
Width(mm)
520
520
520
520
580
580
580
580
580
Height(mm)
1025
1025
1235
1235
1395
1395
1450
1575
1575
Devotion Machineries Co. Limited (hereinafter referred as Devotion), is dedicated in fabricating and R & D of industrial and commercial boilers, with a wide product range of oil/gas fired steam/hot water boilers, electric steam/hot water boilers, thermal oil boilers, solid fuel steam/hot water boilers as well as all types of pressure vessels.
Devotion is a holder of class B boiler manufacturing license, class A steam generator manufacturing license in oil field, D1 & D2 pressure vessel manufacturing license and class 2 boiler installation license. Devotion has state-of-the-art fabricating & testing facilities, complete quality management system, world-wide sales and after sales network. For last 15 years, Devotion sales revenue and technological innovation achievements are ranking the top in boiler industry. In addition, we are one of pioneers in obtaining certificates of ISO9001, ISO14001, ASME, GOST, etc in boiler industry.
Devotion has got numbers of honors such as grade A Taxpayer, AAA class creditable company, municipal big taxpayer, provincial big taxpayer, 2007 Guangzhou Excellent Foreign Investment Enterprise, etc. Its products also have been awarded titles of 2008 national environment- friend promoting products, energy-saving products of Industrial Boiler Association, etc. DEVOTION trademark is a famous brand of Guangzhou.
Devotion products have been sold to every corner of China and also exported to worldwide countries. For the time being, there are more than 10, 000 Devotion brand end users of hotels, schools, hospitals, petroleum and industrial plants in the chemical, textile, power plant, smelting, automobile, tobacco, food, brewing sectors and so on. In the mean time, Devotion products have been batch sold to many departments of central government, national embassies worldwide; Five-star hotels like Sheraton, Hilton, Marriott, etc; Chain hotels like Jinjiang Inn, Hanting, etc; Top global 500 enterprises such as Coca Cola, P&G, Toyota, etc; Famous domestic enterprises such as Dongfang Steam Turbine Works, Liaohe Oilfield, Foxconn, etc; Renowned real estate companies such as Wanda, Country Garden, Chateau Star River, etc; Reputable universities such as Tsinghua University, Beijing University and so on.
Devotion's products also have been well sold to Europe, Africa, Middle East, Southeast Asia, South America and so on. It's more than 60 countries. It's one of leading exporters in China boiler industry.
