| Prod Model: |
ENG-2500 / 3600/ 3800 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Motor Winding: |
100% Copper Wire |
| Rated Output: |
2000watt |
| Continuous Working Time: |
11hours |
| Output Type: |
AC Single Phase |

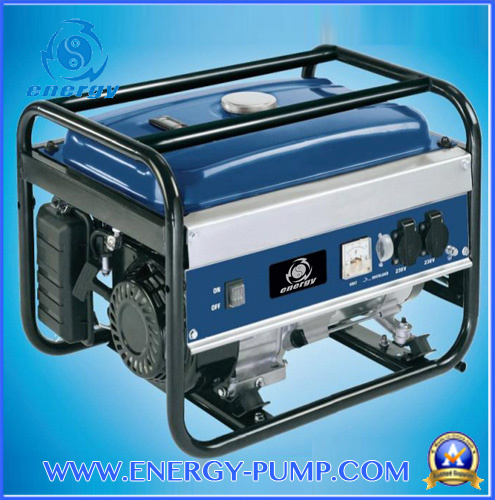

Product Description
Engine
Air-cooled; 4-stroke; OHV25 tilt, level shaft, single cylinder
Work capacity: 163CC/196CC/210CC
Maximum Power Output: 4.1kw /4.8kw /5.1kw
Lgnition system: Transistor magneto
Starting system: Recoil/Electric
Fuel tank capacity: 15 Liter
Continuous operating time: 13hour /12hour/10hour
Min. Fuel Consumption: 360g/Kw/h
Noise level: 65dB/67dB/69dB
Engine oil system capacity: 0.6Liter
Generator
A. C. Frequency: 50/60Hz
Rated Voltage: 220/110V
Max. A. C. Output: 2.2KW/2.8KW/3.0KW
Rated. A. C. Output: 2.0KW/2.5KW/2.8KW
Size and weight
Overall dimension: 605X445X450mm
Net weight: 40kg/43kg/45kg
|
Generator |
Rated A. C. output |
2.0kW |
2.5kW |
2.8kW |
5.0kW |
6.0kW |
|
Max. A. C. output |
2.2kW |
2.8kW |
3.0kW |
5.5kW |
6.5kW |
|
A. C. Frequency |
50/60Hz |
|
Rated Voltage |
220/110V |
|
Engine |
Engine Model |
JJ-168F |
JJ168F-1 |
JJ-170F |
JJ188F |
JJ190F |
|
Power |
5.5HP |
6.5HP |
7.0HP |
13.0HP |
15.0HP |
|
Engine Type |
Air-cooled; 4-stroke; OHV, Single Cylinder |
|
Ignition System |
Transistor Magneto |
|
Starting System |
Recoil/Electric |
|
Displacement Max. Output |
163cc |
196cc |
210cc |
389cc |
420cc |
|
Max. Output |
4.1kW |
4.8kW |
5.1kW |
9.6kW |
11kW |
|
Fuel Tank Capacity |
15L |
15L |
15L |
25L |
25L |
|
Continuous Operating Time |
13h |
12h |
10h |
10h |
8h |
|
Min. Fuel Consumption |
360g/kW@ h |
360g/kW@ h |
360g/kW@ h |
313g/kW@ h |
313g/kW@ h |
|
Noise Level |
65dB |
67dB |
69dB |
74dB |
78dB |
|
Lube. Oil Capacity |
0.6L |
0.6L |
0.6L |
1.1L |
1.1L |
|
Size & Weight |
Dimension(LxWxH)(mm) |
640x455x450 |
640x455x450 |
640x455x450 |
695x525x545 |
695x525x545 |
|
Net Weight |
40kg |
43kg |
45kg |
82kg |
85kg |
Taizhou Energy Pump, has been developing, manufacturing and marketing high quality water pumps for many year, located in Daxi Town, Taizhou City of Zhejiang Province, which is called the "pump town of China".
We can supply a comprehensive range of water pumps, such as 3'', 4'', 6'', 8'' deep well submersible pumps, sewage submersible pumps, clear water submersible pumps, self-priming jet pumps, peripheral pumps, centrifugal pumps, DC solar pumps; we can also supply gasoline generator from 0.65kw~7kw, diesel water pump with National Patent. Every component in every pump is thoroughly tested and runs through its complete running cycle. Then will be further tested as a complete unit, to assure reliability and performance. From engineering through manufacturing, we design our products to meet the highest quality standards. We are continually working to produce products that deliver the ultimate in performance and dependability.
At present, our pumps are exported to many countries and areas such as Europe, Southeast Asia, the Middle East, and South America, and have gained great reputation from our customers. We are looking forward to establishing mutual benefit and long-term business with more and more friends worldwide and warmly welcome your enquiry and visit anytime.
