| Prod Model: |
CPO93-30 |
| Markets: |
North America,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Name: |
Chemical Psa Oxygen Generator |
| Purity: |
25~93% |
| Capacity: |
1-200nm3/H |
| Technology: |
Pressure Swing Adsorption(Psa) |
| Other Customization: |
Available |
| Type: |
on-Site Psa Oxygen Generator |
| Color: |
Blue |
| Operation: |
Automatic |
| Maintenance: |
Low Cost |
| Application Field: |
Chemical Industry |
| Gas Source: |
Air |
| Power: |
Upon Equipment Size |
Product Description
HYT Oxygen Generator Features and Benefits
1. Customized design.
2. High quality and reliability.
3. Air: O2 Ratio about 10:1 (93% oxygen outlet).
4. High-level automation.
5. High-tech Control System
Standardized module design.
IP65 level protection.
More than 29 selectable functions, can be added according to the actual situation .
Friendly interface,easy to operate.
Resistance of the electromagnetic interference (OPTIONAL).
6. Minimal space requirements.
7. Easy to operate, install and maintenance.
8. Excellent after-sales service.
9. Save energy 20%-30% for low pressure condition.
Company Introduction
Wuhan HengYeTong Gas Equipment Co.,Ltd, whose headquarters located in Huading Mold Industrial Park A035 of Hannan District, Wuhan, Hubei Province, China, has been devoting itself to product application, research and development.
Its core business is manufacturing PSA nitrogen generators, PSA oxygen generators and VPSA oxygen generators, and it has become a leading and reliable gas equipment supplier in China.
HengYeTong has passed approval of ISO9001, License of Special Equipment (GC2), and acquired many national patents. All products are manufactured per strict enterprise standard.
With more than 30 years of experience, our technical experts will collaborate closely with you to select the optimal gas supply solution for your application.
Oxygen Generator
PSA, short for Pressure Swing Adsorption, is a kind of the advanced technology for air separation, and it plays an irreplaceable role in nowadays on-site gas supplying.

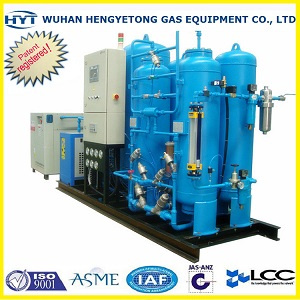

HYT-CPO PSA oxygen generator provides dependable oxygen supply to meet middle and small amount
oxygen on-site requirements.
PSA oxygen generator usually adopts two adsorption towers, which are filled with the Zeolite Molecular Sieve(ZMS). ZMS has many tiny holes, under certain pressure, the tiny holes have different adsorption capacity to nitrogen and oxygen. When one tower adsorbs nitrogen and produces oxygen, the other desorbs nitrogen and makes regeneration. This alternate process constantly produces oxygen.
PO Series: Technical Specifications
| | Model | O2 Purity and Quantity(m3/h) | O2 (93%) Energy Efficiency | Dimensions
(L * W* H )cm | Weight
Kg | |
| | | 80% | 90% | 93% | Air
(m3/h) | E Power eff Kw/m3 | | | |
| | PO-150 | 2 | 1.8 | 1.6 | 15.7 | 1.3 | 120*60*160 | 500 | |
| | PO-200 | 4.7 | 4.1 | 3.7 | 36.3 | 1.3 | 130*60*190 | 700 | |
| | PO-250 | 7.5 | 6.4 | 5.9 | 57.9 | 1.3 | 140*80*190 | 900 | |
| | PO-300 | 10.7 | 9.2 | 8.3 | 81.5 | 1.3 | 140*80*190 | 1050 | |
| | PO-350 | 14.3 | 12.3 | 11.1 | 109 | 1.2 | 155*90*190 | 1200 | |
| | PO-400 | 18.4 | 15.8 | 14.3 | 140 | 1.2 | 160*90*190 | 1300 | |
Services
Engineering and Design
HYT's engineers will design gas generating systems unique for your application and economic conditions.
Manufacturing
HYT custom builds & assembles systems to accommodate your gas generating application.
Installation & Commissioning
HYT's experienced and highly skilled technicians can assist you with system installation, start-up and commissioning. Our staff can also provide on-site operational training.
Maintenance & Repair
HYT can provide regularly scheduled on-site maintenance checks to ensure your system functions at peak performance levels. HYT can also quickly dispatch our technical staff to repair your system, when necessary.
