| Price: | US $ 20000/Piece |
|---|---|
| Trade Terms: | FOB,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Money Gram |
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
|---|---|
| Frequency: | 50Hz or 60Hz |
| Type: | Self-Starting Diesel Generator |
| Installation Method: | Fixed |
| Stroke: | Four Stroke |
| Cooling Method: | Water Cooling |
| Output Type: | AC Three Phase |
| Excitation Mode: | Self Excited & Brushless |

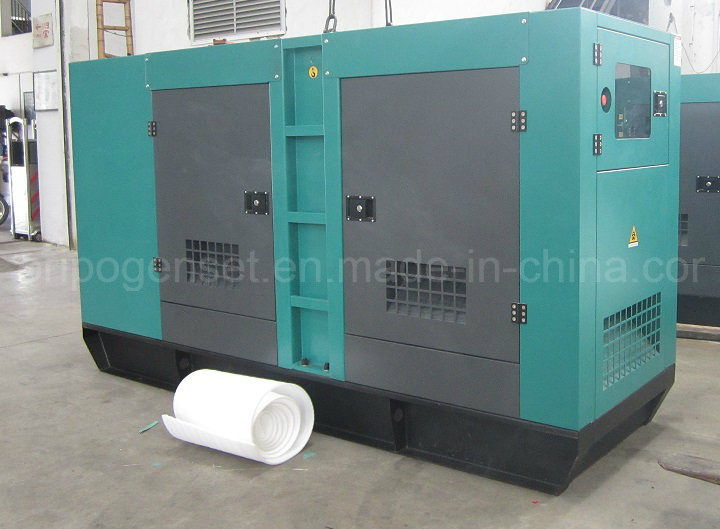

China Factory Good Quality Silent Diesel Generator
Product Features:
1. With Brand New Cummins Engine.
2. 100% Copper Alternator Generator.
3. Good Quality and Rapid Service.
4. Lasted 8 Hours Running Fuel Tank.
5. Fuel Less Generator.
6. If With ATS, Can Be Automatic Started When Out Of Electric Supply.
230/400VAC,50Hz,0.8PF (lag),Three phase four wire
CE Authorized Cogeneration Type 300KW Natural Gas Generator Price Advantages:
1) Adopting advanced Hall ignition sensor and Highly capable ignition system, the engine ignition will be more reliable, and easier to start.
2) Main control parts are all the most advanced imported ones, to make more stable and reliable running.
3) Several gensets can be parallel connection or parallel net, which can increase the total power range. In addition,the gas gensets can take maintenance in different times,which will make little influence to the normal performance of gensets.
4) Low gas pressure is acceptable, no need to set up specified gas storage tank , which will save the investment and enhance the efficient output power .
5) Self-contained parts of gensets needs few accessories
6) Economical and low-cost running.
7) The fuel of gas reduces the accumulated carbon, which lessen the damage to between cylinder and valve, therefore, it will largely prolong lifetime.
8) The installation of high-quality control cabinet set enable mutiple protection, which enhance the safety for the running of gensets.
| CE Authorized Cogeneration Type 300KW Natural Gas Generator Price Specifications | |||||||||||
| Model Item | P25N | P50N | P80N | P120N | P150N | P200N | P250N | P300N | P400N | P500N | |
| Rated power | KW | 25 | 50 | 80 | 120 | 150 | 200 | 250 | 300 | 400 | 500 |
| KVA | 31 | 62 | 100 | 150 | 187.5 | 250 | 312.5 | 375 | 500 | 625 | |
| Rated Voltage (V) | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | |
| Frequency (Hz) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | |
| Rated Current (A) | 45.1 | 90.2 | 144.3 | 216.5 | 270.6 | 360.9 | 451.1 | 541.3 | 721.7 | 902.1 | |
| Voltage Stabilized Regulation | ≤±1.5% | ≤±1.5% | ≤±1.5% | ≤±1.5% | ≤±1.5% | ≤±1.5% | ≤±1.5% | ≤±1.5% | ≤±1.5% | ≤±1.5% | |
| Voltage Instantaneous Regulation | ≤±20% | ≤±20% | ≤±20% | ≤±20% | ≤±20% | ≤±20% | ≤±20% | ≤±20% | ≤±20% | ≤±20% | |
| Voltage Recovery Time (S) | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | |
| Voltage Fluctuation Ratio | ≤1% | ≤1% | ≤1% | ≤1% | ≤1% | ≤1% | ≤1% | ≤1% | ≤1% | ≤1% | |
| Frequency Fluctuation Ratio | ≤1% | ≤1% | ≤1% | ≤1% | ≤1% | ≤1% | ≤1% | ≤1% | ≤1% | ≤1% | |
| Generator Insulation Class | H | H | H | H | H | H | H | H | H | H | |
| Noise Level (Db) | ≤95 | ≤95 | ≤98 | ≤98 | ≤100 | ≤100 | ≤100 | ≤100 | ≤103 | ≤103 | |
| Aspration | Natural | Natural | Natural | Natural | Turbocharged | Turbocharged | Turbocharged | Turbocharged | Turbocharged | Turbocharged | |
| Type | Dry cylinder jacket | Wet cylinder jacket | |||||||||
| Inline | Inline | V type | |||||||||
| Four stroke, electronic-control spark plug ignition, water-cooling, premix proper ratio of air and gas before combustion | |||||||||||
| Cooling Mode | Radiator fan cooling for closed-type cooling mode, or heat exchanger water cooling for cogeneration unit | ||||||||||
| Cylinders | 4 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 12 | 12 | |
| Bore X Stroke (mm) | 102*120 | 102*120 | 140*152 | 140*152 | 140*152 | 140*152 | 159*159 | 159*159 | 159*159 | 159*159 | |
| Displacement (L) | 3.92 | 5.88 | 14 | 14 | 14 | 14 | 18.9 | 18.9 | 37.8 | 37.8 | |
| Compression Ratio | 11.5:1 | 11.5:1 | 11.5:1 | 11.5:1 | 11.5:1 | 11.5:1 | 11 : 1 | 11 : 1 | 11 : 1 | 11 : 1 | |
| Rated Power (Kw) | 33 | 56 | 135 | 135 | 232 | 232 | 328 | 328 | 520 | 520 | |
| Rated Speed (r/Min) | 1500/1800 | ||||||||||
| Fuel | Natural Gas / Biogas | ||||||||||
| Gas Consumption (MJ/Kw·h) | 12 | 11.9 | 11.8 | 11.8 | 11.2 | 11.2 | 10.9 | 10.9 | 10.5 | 10.5 | |
| Idling Speed (r/Min) | 700 | ||||||||||
| Oil Recommended | API service grade CD or higher SAE 15W-40 CF4 | ||||||||||
| Oil Consumption | ≤1.0g/kW.h | ||||||||||
| Exhaust Temperature | ≤ 600ºC | ||||||||||
| Net Weight (Kg) | 900 | 1320 | 2850 | 3050 | 3130 | 3130 | 3650 | 3780 | 6357 | 6695 | |
| Dimension (Mm) | 1800*710 *1350 | 2300*820 *1400 | 3150*1000 *1500 | 3150*1000 *1500 | 3150*1000 *1500 | 3150*1000 *1500 | 3400*1300 *1850 | 3400*1300 *2100 | 4250*1700 *2580 | 4250*1700 *2580 | |
Company Information
Oripo stablished in 1998, Oripo Power Engineering Co.,Ltd is professional leading manufacturer, suppliers, exporter and authorized dealers of diesel gensets. With over 20,000 square meters and a staff nearly 200, the headqauter is loacted in Foshan city, adjacent to Guangzhou which is the trade center of Guandong province. We offering power genset, industrial genset, silent genset, weather proof genset, Cummins genset, Perkins genset, Yuchai genset, Shanghai Dongfeng genset, Deutz genset, Weichai electric genset, China domestic genset, silent diesel generator, portable power generator, trailer diesel generator and electric power generator .
Currently, Oripo cooperated with multinational companies formed a strategic partnership. Import CUMMINS, PERKINS series generator sets, and purchase engine from with Cummins (USA), Cummins (DCEC), Chongqing Cummins (CCED), Shangchaigufen (SDEC), Guangxi Yuchai (ycchai), Tianjin Lovol (LOVOL), Deutz, alternater with STAMFORD, MARATHON, LEADTECH and other international or domestic famous brand. Establish a long-term friendly cooperation relations with the branded engine and alternator company, authorized to be the OEM partner, In 2009, Oripoe authorized by Cummins, Shanghai Dongfeng and Yuchai to provide OEM service. As professional qualified manufacturer provide OEM genset, spare parts, after sale service,in order to better serve customers and laid a solid foundation.
During the last ten odd years, Oripo has been dedicated to pursuing professional production, thus prevailing in the market with its superior quality, cutting-edge technology and tailor-made services. Moreover, with an endeavor to expand our business operations, we adhere to ethical business practices, transparent business dealings and work to attain the confidence and trust of our clients.
FAQ(Frequently Asked Question):
1. What is your warranty period?
Our payment terms is 1 year or 1000 running hours whichever comes first. But based on some special project, we can extended our warranty period.
2. Does your generator have global warranty?
Yes, most of our products like Cummins diesel generator enjoy the global warranty service. And the alternator we use like Leateck also enjoy the global warranty service, so you do not need to worry about the aftersales service.
3. Can you accept OEM?
Yes, we can accept OEM.
4. What is your payment terms?
We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight.
5. What is your delivery time?
Our normal delivery time is 20 to 25 days. But if your order is some special engine and alternator, then the delivery time is longer.
Oripo factory provides a full line of brand new and high quality products. Each and every unit is strictly factory tested. Warranty is according to our standard conditions: 12 months or 1000 running hours, subject to the earlier one. And what's more, Oripo factory will provid lifespan technical support and spare parts maintenance lists with manufacture prices.
